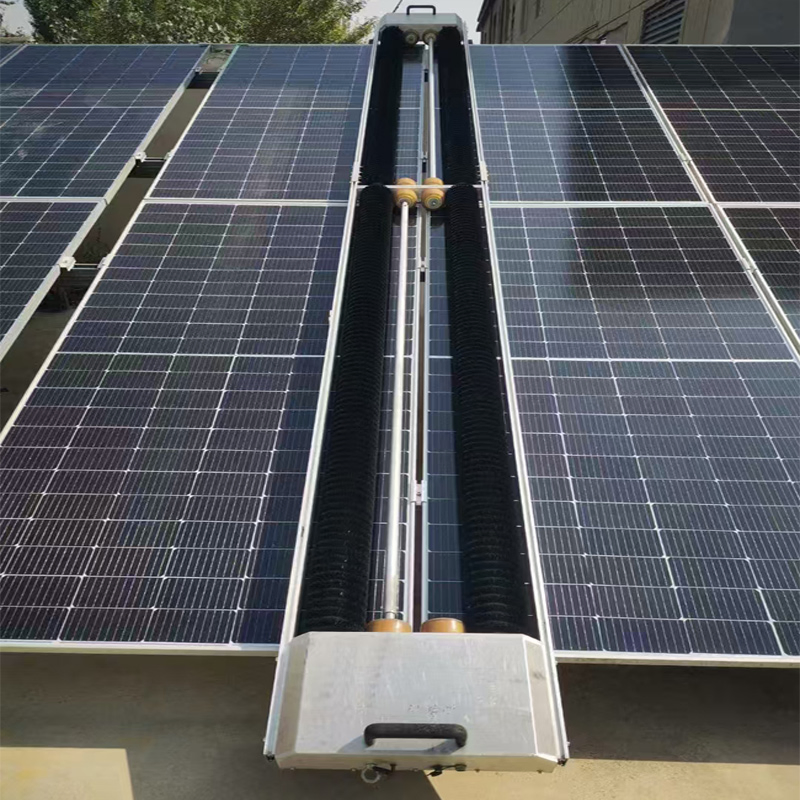

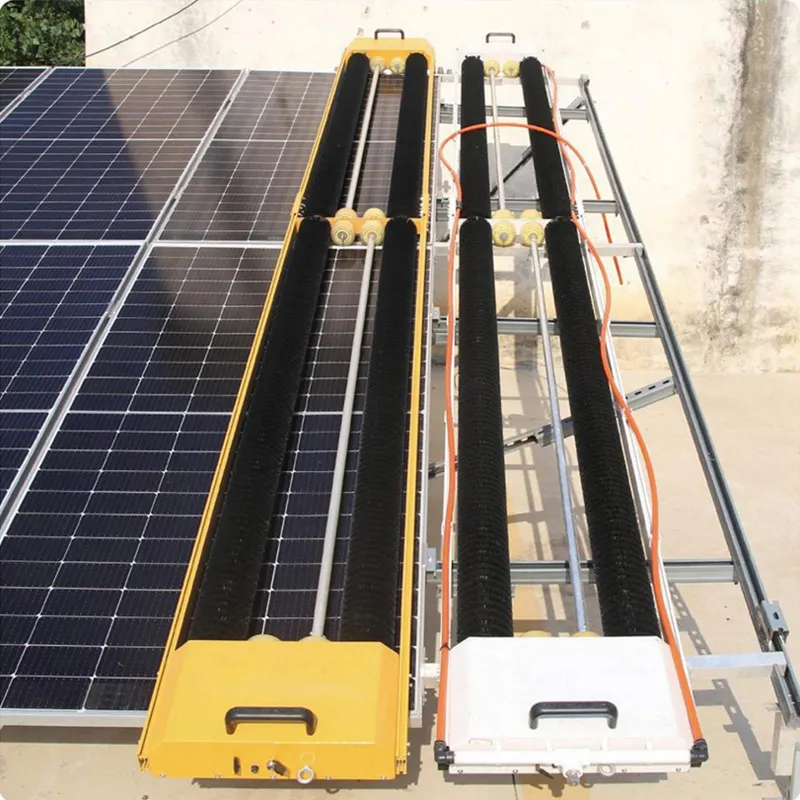

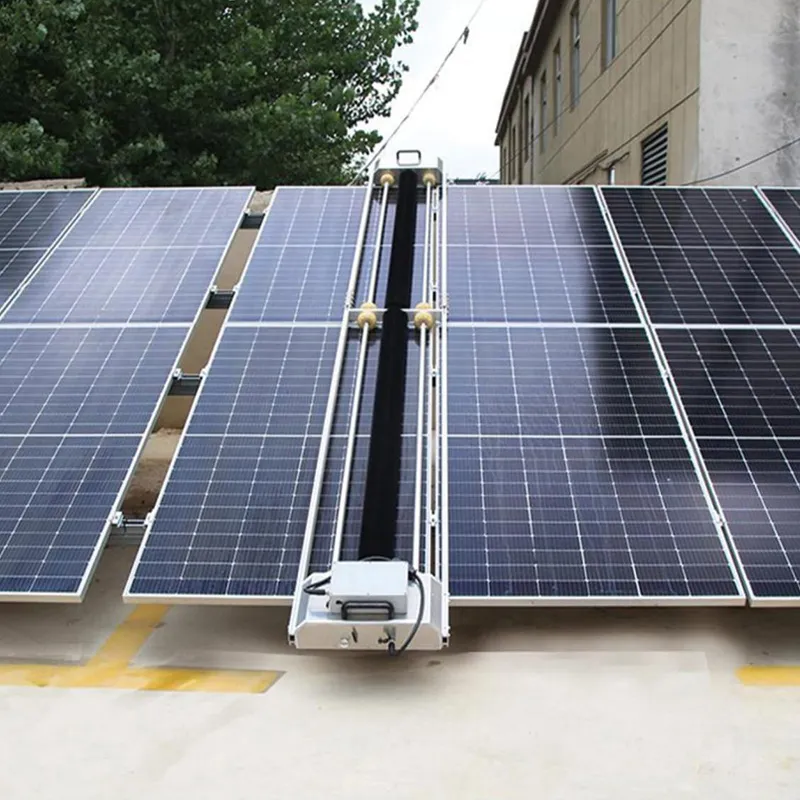

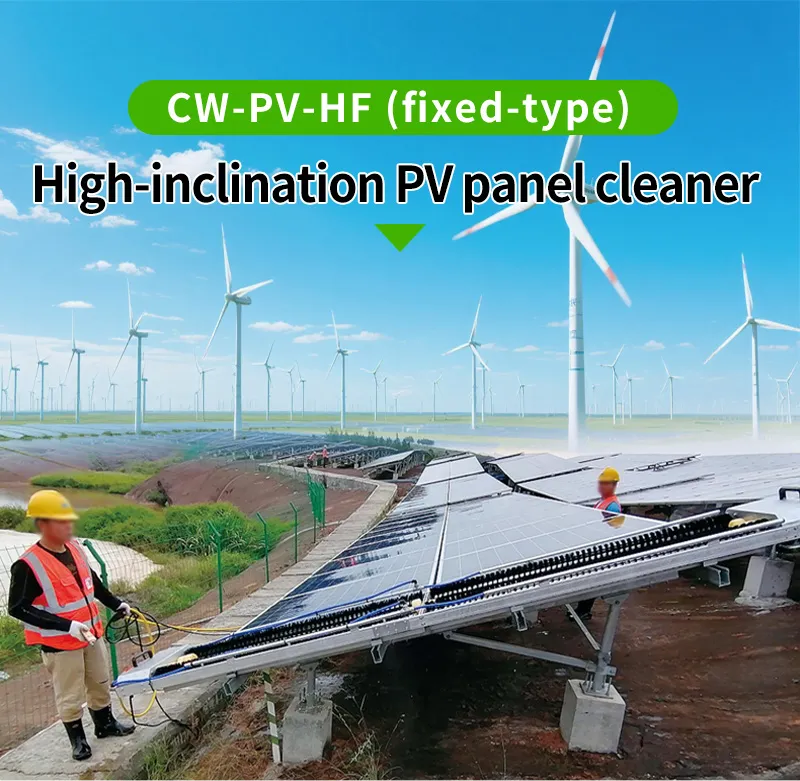

CW-PV-HF high tilt angle strip mounted photovoltaic cleaning machine
In the current booming development of the photovoltaic industry, ensuring that panels maintain high power generation efficiency is critical. Accumulation of dust and dirt can seriously affect solar energy absorption. This high inclination long strip hanging cleaning machine brings a professional solution for photovoltaic maintenance.
⚙Technical Specifications

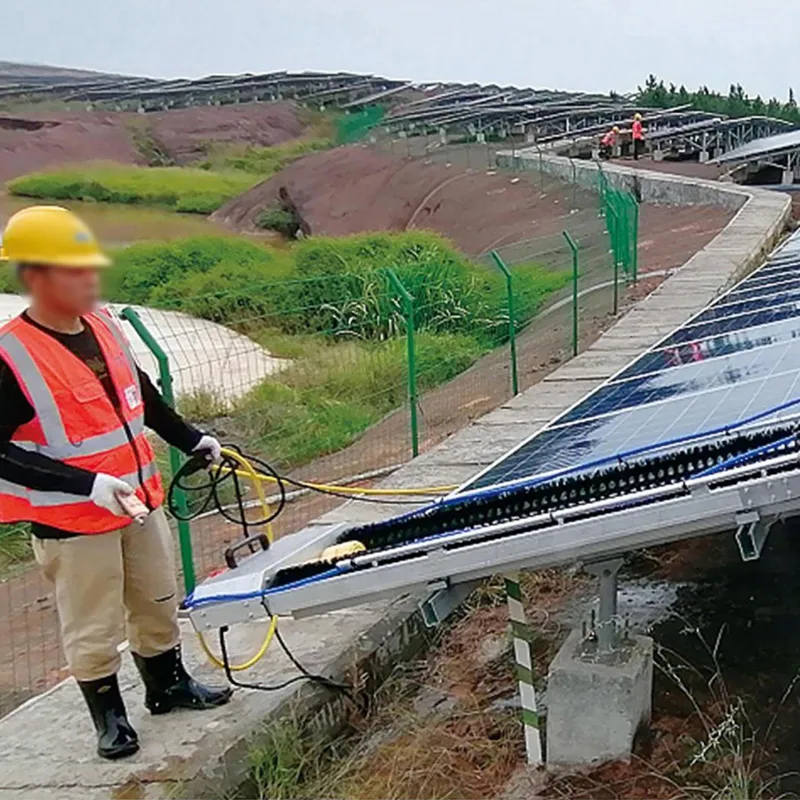

Control mode
Handheld remote control
Working voltage
24v
Power supply mode
Lithium battery 24v 28.6Ah
Battery life
≈3 hours
Rated total power
450w
Travel speed
12/15m/min
Cleaning width
1650mm
Brush diameter
130mm
Brush material
Nylon
Cleaning type
Water wash / Dry clean
Application scenario
Large ground power station
Working temperature
-20° / 50°
Equipment weight
30kg+
Operational Features:

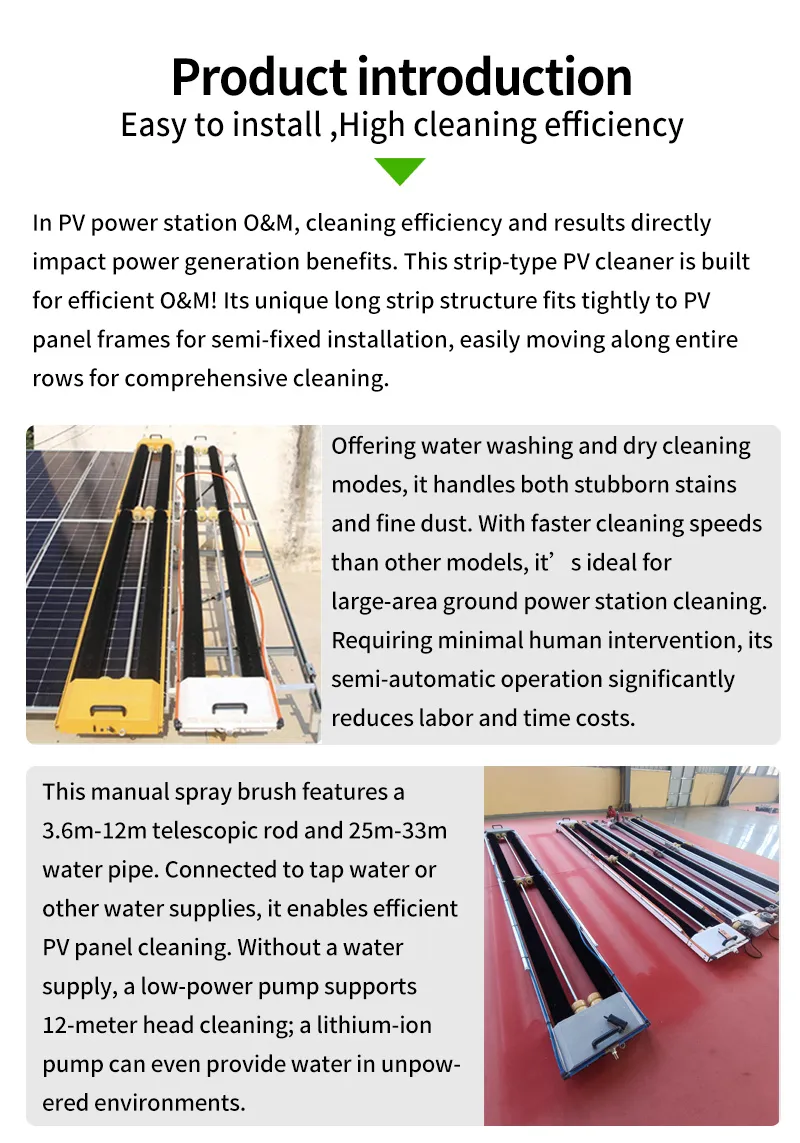

This manual spray brush is equipped with a 3.6m-12m telescopic rod and a 25m-33m water pipe. It can be used with tap water or other water supply devices for efficient cleaning. For unpowered environments, a lithium-ion pump can be selected to achieve water supply.
▶Product Video
Frequently Asked Questions
Q1: How long does the battery last on a single charge?
The machine is powered by a 24V 28.6Ah lithium battery, providing approximately 3 hours of continuous operation.
Q2: Can this machine perform dry cleaning without water?
Yes, the machine supports both water washing and dry cleaning modes, making it versatile for different environmental conditions.
Q3: What is the maximum cleaning width of the CW-PV-HF?
The cleaning width is 1650mm, allowing for efficient coverage of large photovoltaic panels in a single pass.
Q4: What is the travel speed of the cleaning machine?
The machine features an adjustable travel speed of 12 to 15 meters per minute.
Q5: Is the machine suitable for high-tilt photovoltaic installations?
Yes, it is specifically designed as a high tilt angle strip mounted machine, ideal for various ground-based power station configurations.

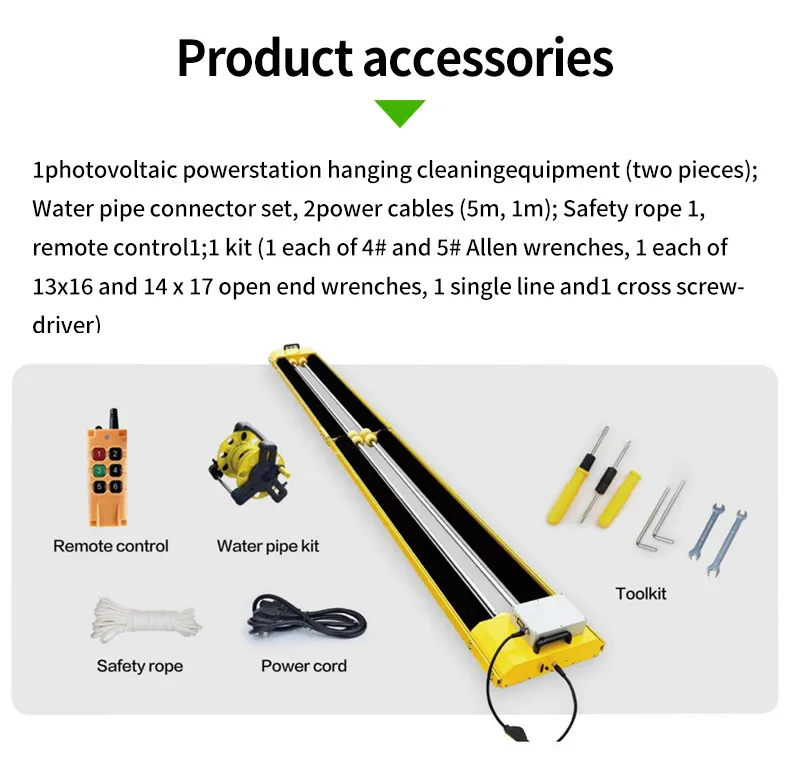

Q6: What accessories are included in the standard kit?
The kit includes the hanging cleaning equipment, water pipe connectors, power cables (5m and 1m), safety rope, remote control, and a full toolset (wrenches and screwdrivers).
