PV Solar Panel Energy Power Plant Pitched Roof Aluminum Pole Ground Structure Mounting System for Farm

1 / 5

PV Solar Panel Energy Power Plant Pitched Roof Aluminum Pole Ground Structure Mounting System for Farm

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specification

Material:

Steel

Type:

Roof Bracket

Standard:

DIN, ASTM/ASME, JIS, En, ISO, as, GB

Finishing:

Zinc, HDG, Sandblasting

Certificate:

ISO 9001:2015

Delivery Time:

7-30 days

Installation Site:

Flat Roof, Ground

Wind Load:

60m/S

Snow Load:

1.6kN/M2

Panel Layout:

Portrait or Landscape

Package Size:

20.00cm * 20.00cm * 20.00cm

Gross Weight:

10.000kg

Product Description

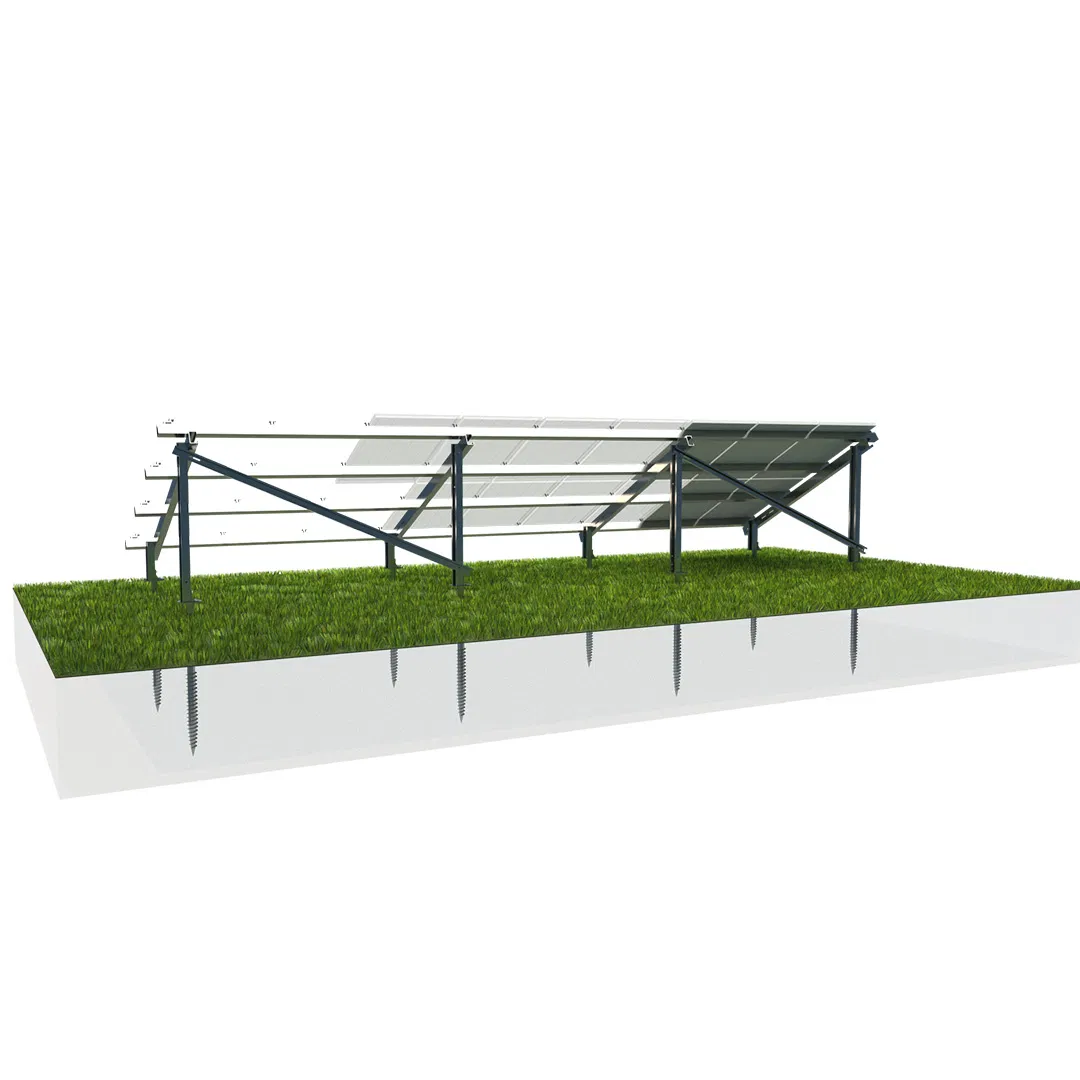

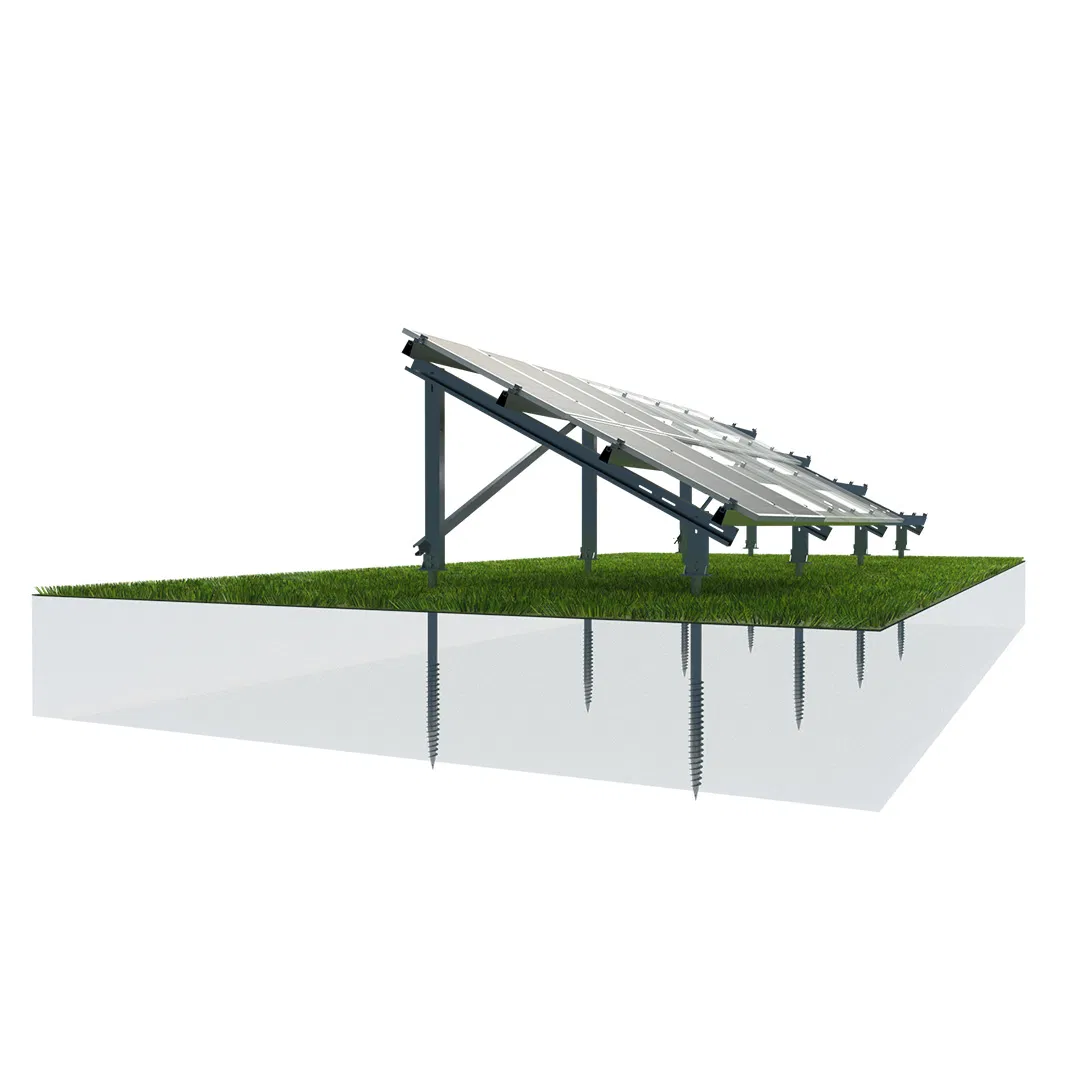

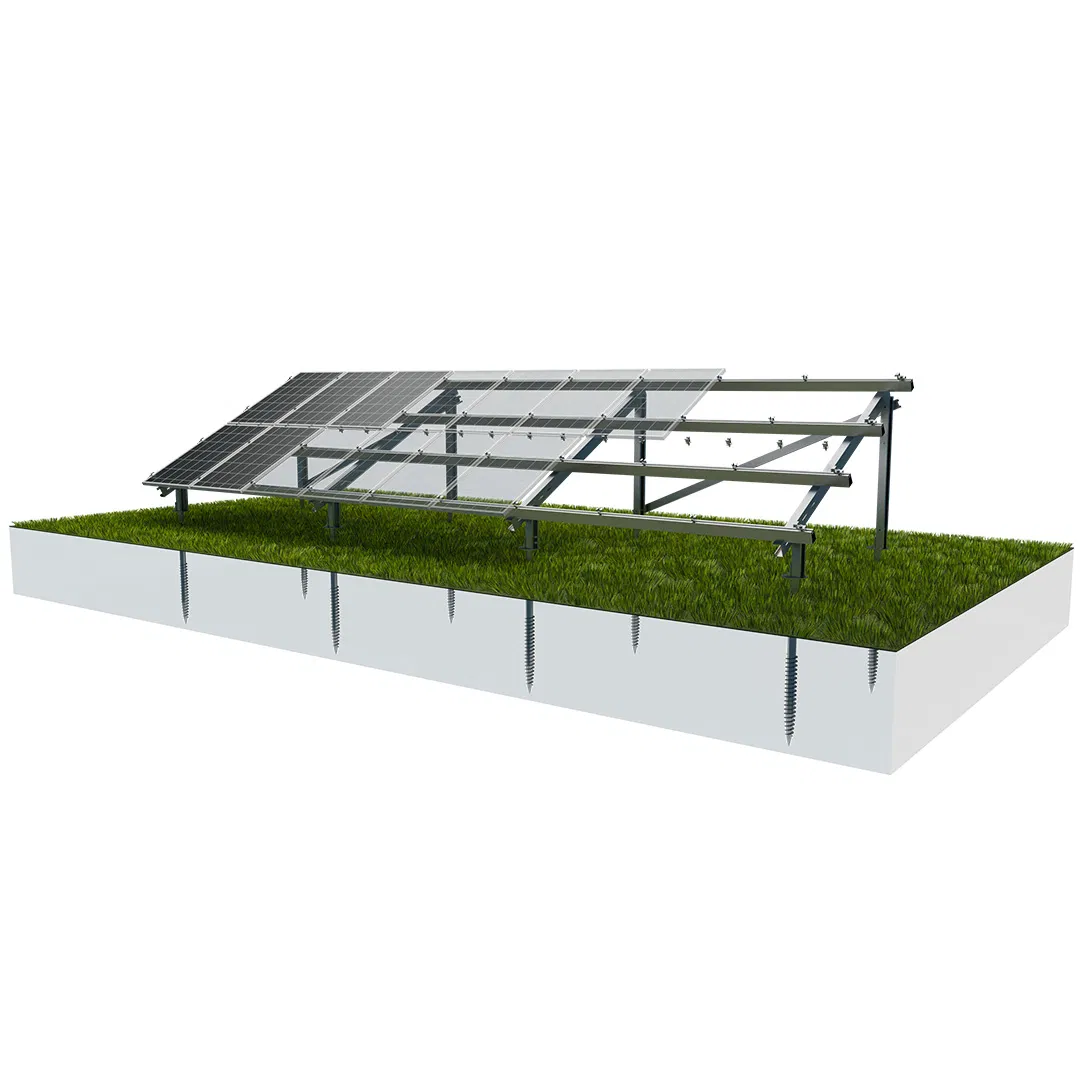

PV Solar energy power plant Structure Mounting system for Farm

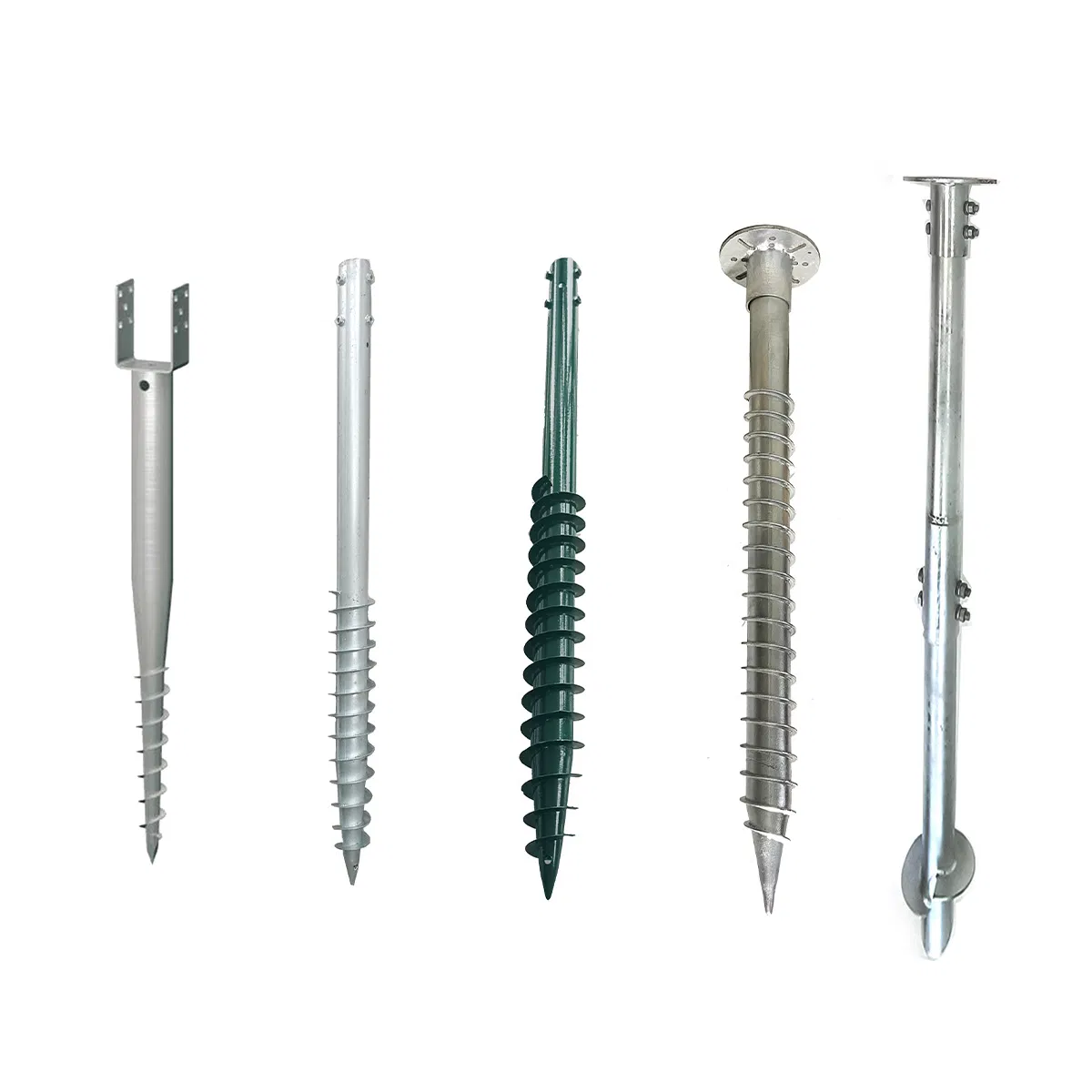

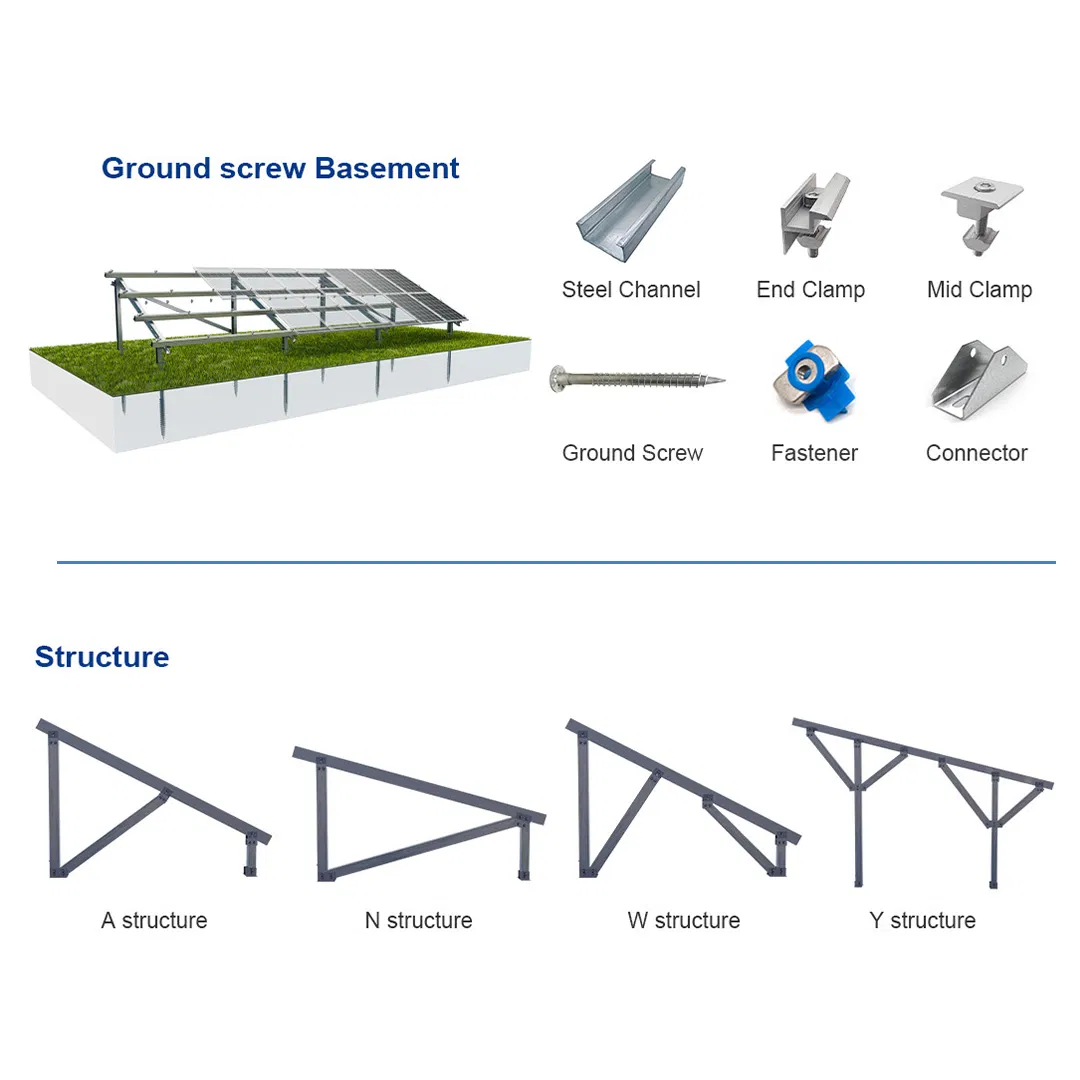

A ground screw (also known as a helical pile or screw pile) is a type of foundation used in solar mounting systems. It is a steel shaft with one or more helical blades (similar to a screw) that is drilled into the ground to provide a stable foundation for solar panels and related structures.

Technical Parameters
System Name	Solar Ground Mounting System	Design Standard	AS/NZS 1170, DIN 1055, JIS C8955:2017
Installation Site	Flat Roof, Ground	International Code	IBC 2009
Tilt Angle	5-10°	Building Code	CBC 2010
Wind Load	60m/s	Hook Material	SUS304
Snow Load	1.6KN/M²	Fastener	SUS304
Solar Module	Framed	Small Components	AL6005-T5 (Anodized)
Panel Layout	Portrait or Landscape	Warranty	10-year warranty

Our Professional Services

Professional Manufacturer: Fasteners designed and manufactured according to specific performance requirements.
Guaranteed Quality: Rigorous durability testing and technical design to enhance lifetime.
Cost Effective: Competitive pricing via direct professional factory supply.
10 Years Experience: Perfect fastening solutions with a wide range of parts selection.
Customized Solutions: Tailored services according to samples and technical drawings.

Frequently Asked Questions

What is a ground screw foundation?

A ground screw, or helical pile, is a steel shaft with helical blades drilled into the ground to provide a stable and durable foundation for solar mounting structures.

What materials are used in the mounting system?

The system primarily uses high-quality Steel, SUS304 stainless steel for fasteners, and Anodized AL6005-T5 aluminum for small components.

What are the maximum load capacities?

The system is designed to withstand a wind load of up to 60m/s and a snow load of up to 1.6KN/M².

Which international standards are followed?

Our products comply with several standards including AS/NZS 1170, DIN 1055, JIS C8955:2017, IBC 2009, and CBC 2010.

Can the mounting system be customized?

Yes, we provide customized services based on specific samples or technical drawings provided by the buyer.

What is the typical delivery time and warranty?

Standard delivery time ranges from 7 to 30 days, and the system comes with a 10-year professional warranty.
