Roof Solar Mount System - Ballasted & Non-Penetrating Design for Zero Roof Damage & Easy Installation

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

LS-R-F1

Certification

ISO, TUV, CE

Application

Commercial

Material

Aluminum Alloy

Wind Load

1.4kN/M2

Snow Load

60m/S

Installation Site

Flat Roof or Ground

Surface Treatment

Anodizing

Product Introduction

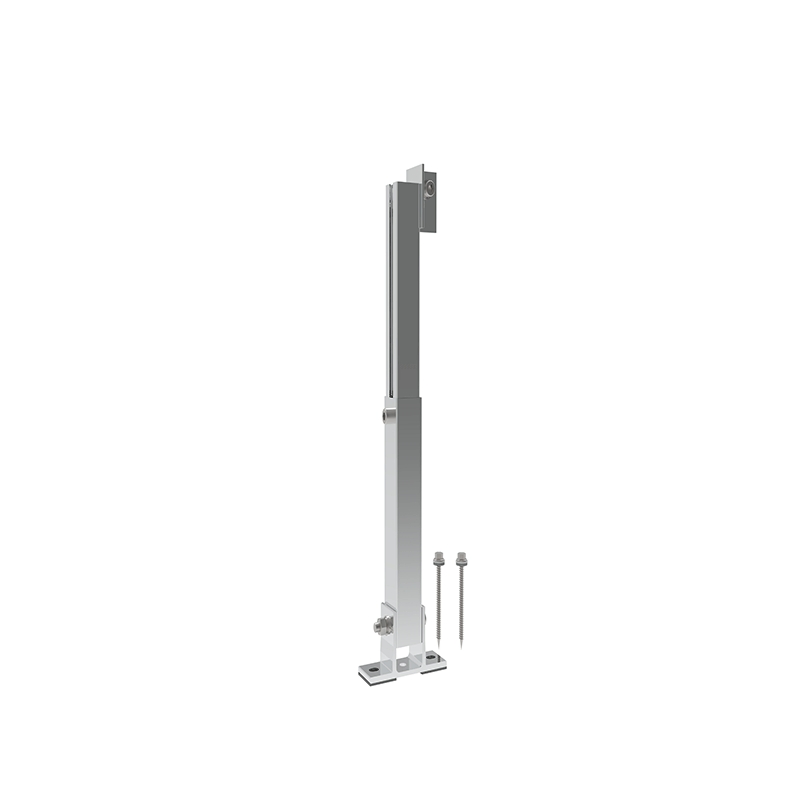

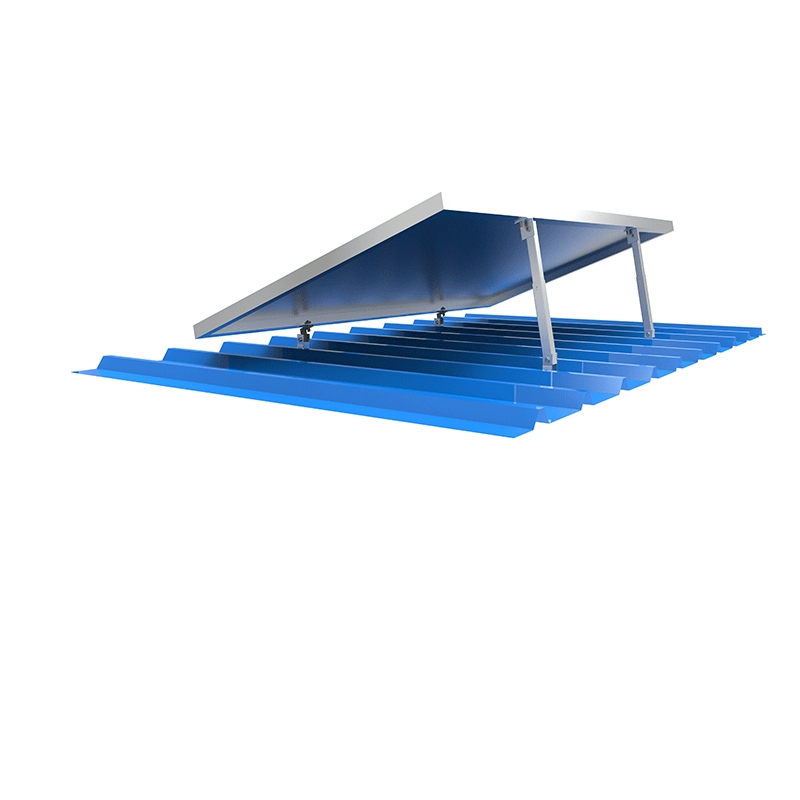

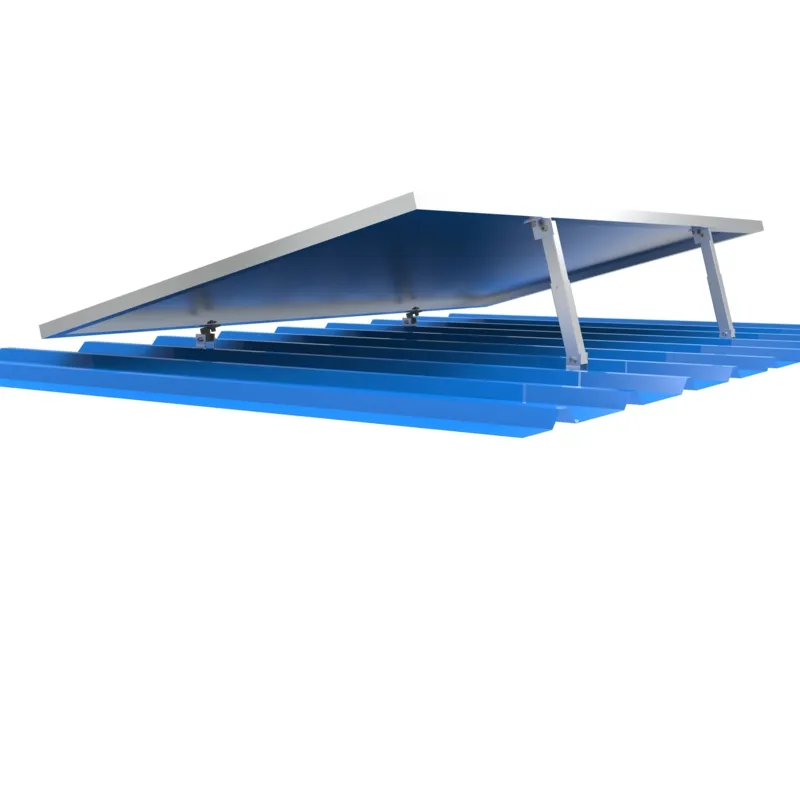

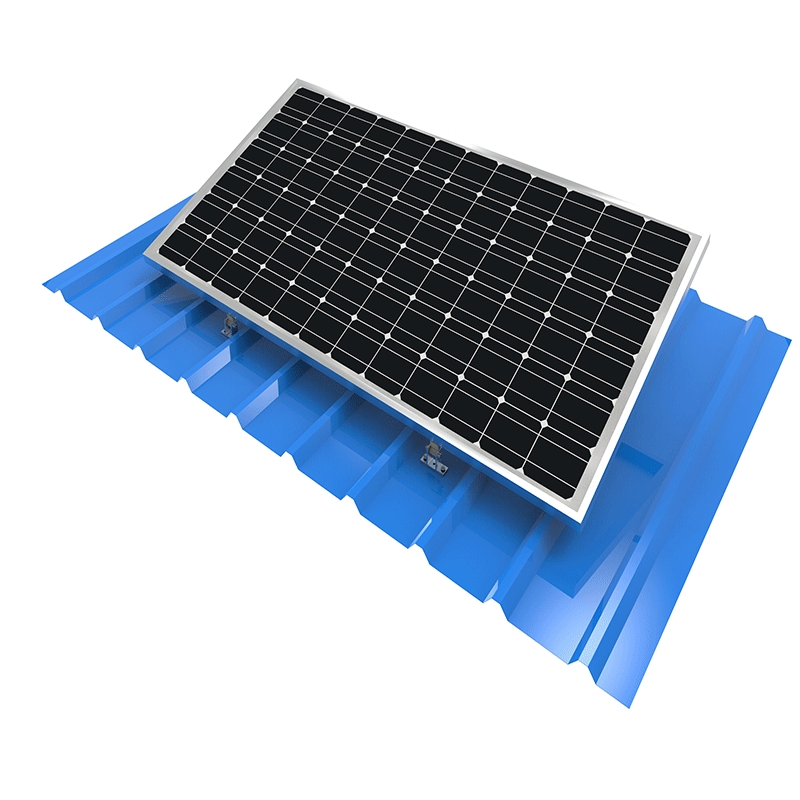

Adjustable angle solar PV mounting structure:

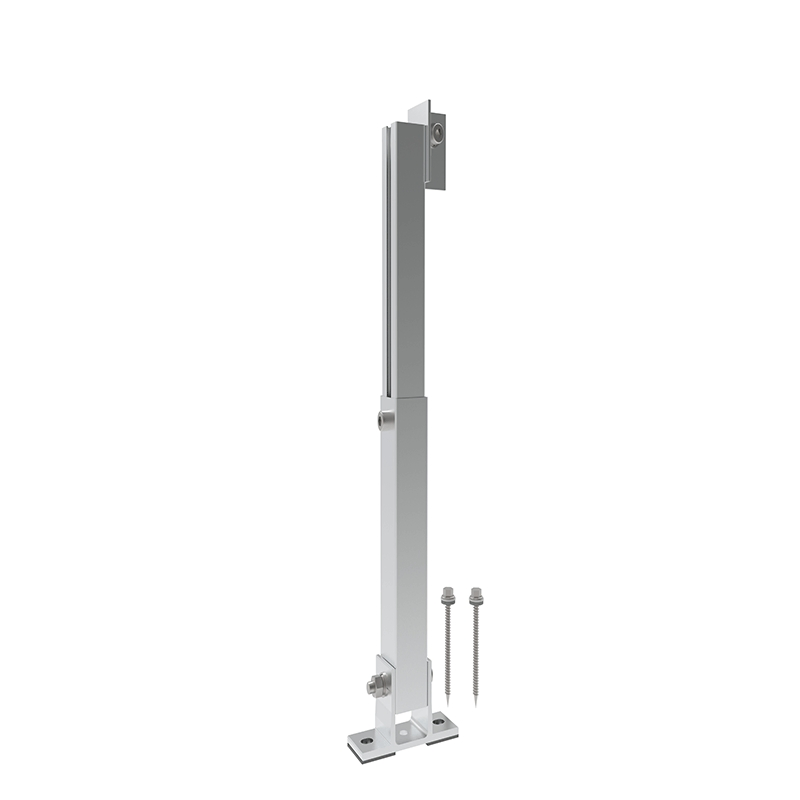

Our adjustable front/rear leg is designed for PV modules Metal Roof Mounting System. The classic adjustable degree is at 10 -15 degrees/ 15-30 degrees. The solar front/rear leg system is made of AL6005-T5. The whole structure is simple and easy to assemble, suitable for almost trapezoidal metal roof solar panel installation.

Installation Method

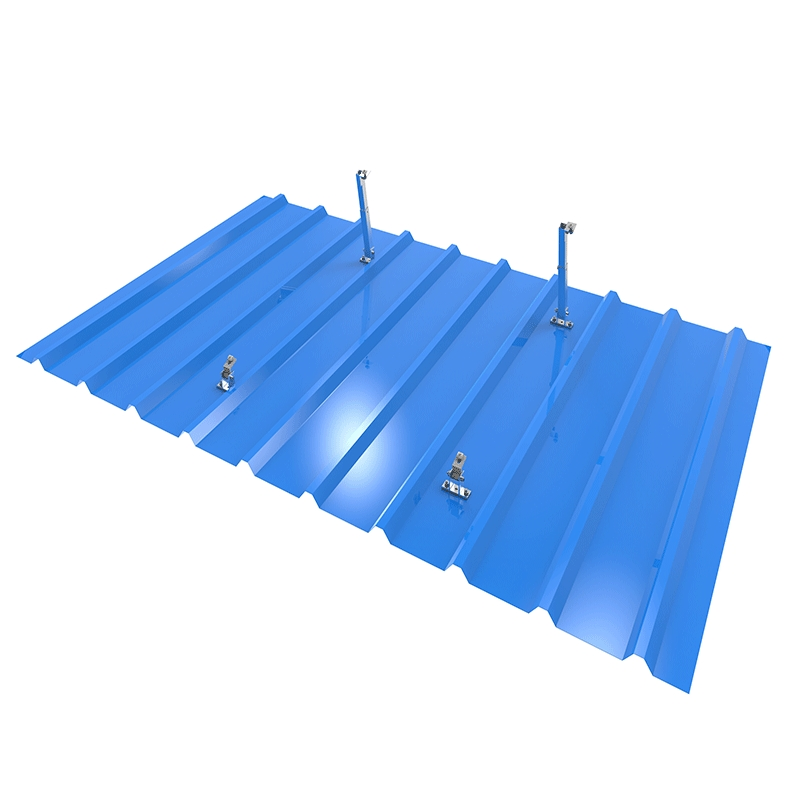

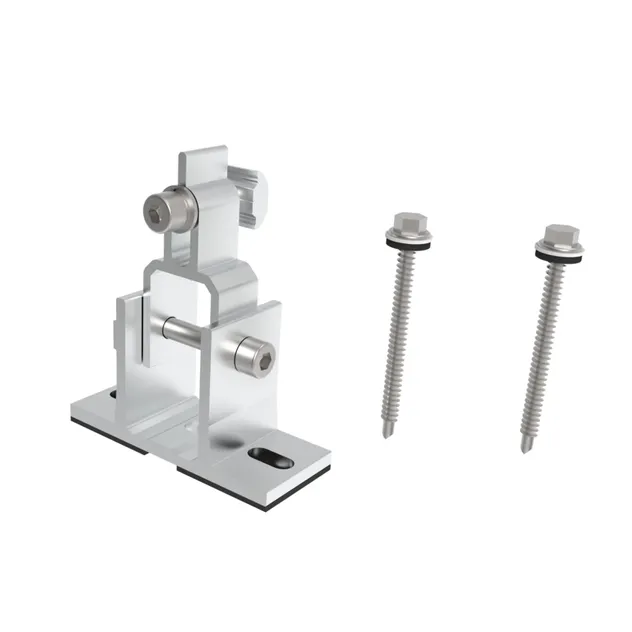

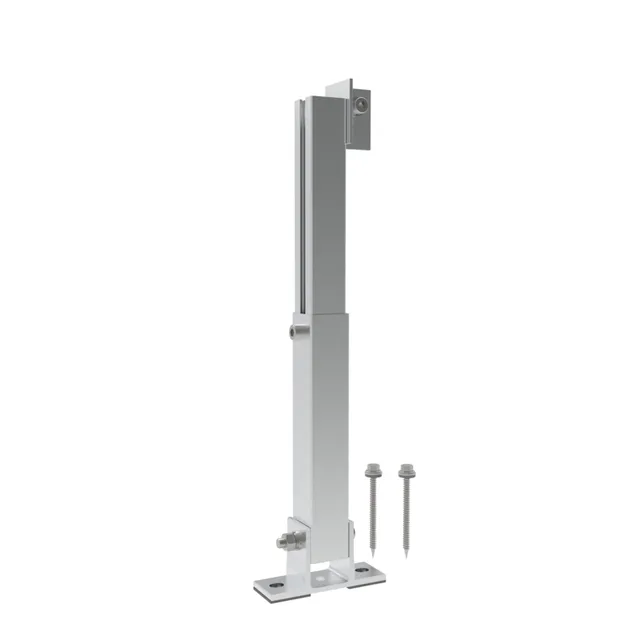

Attach the rear leg and front leg to the roof with self-drilling screws.

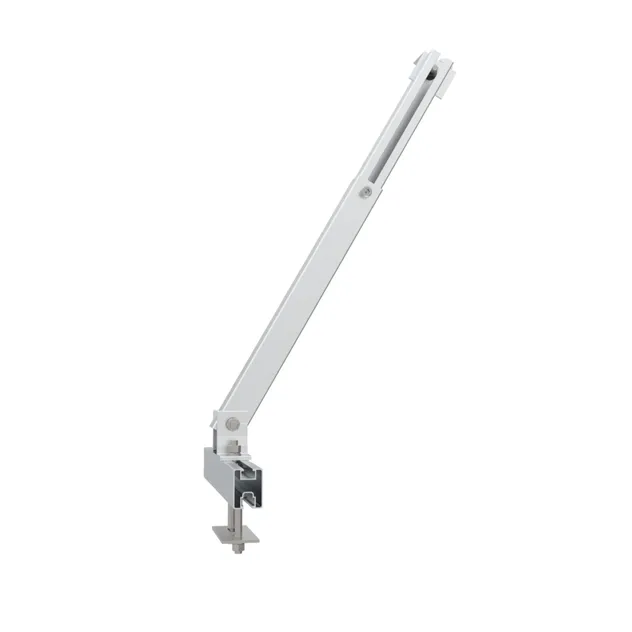

Confirm the angle required and fasten the hexagon bolt on the adjustable rear leg.

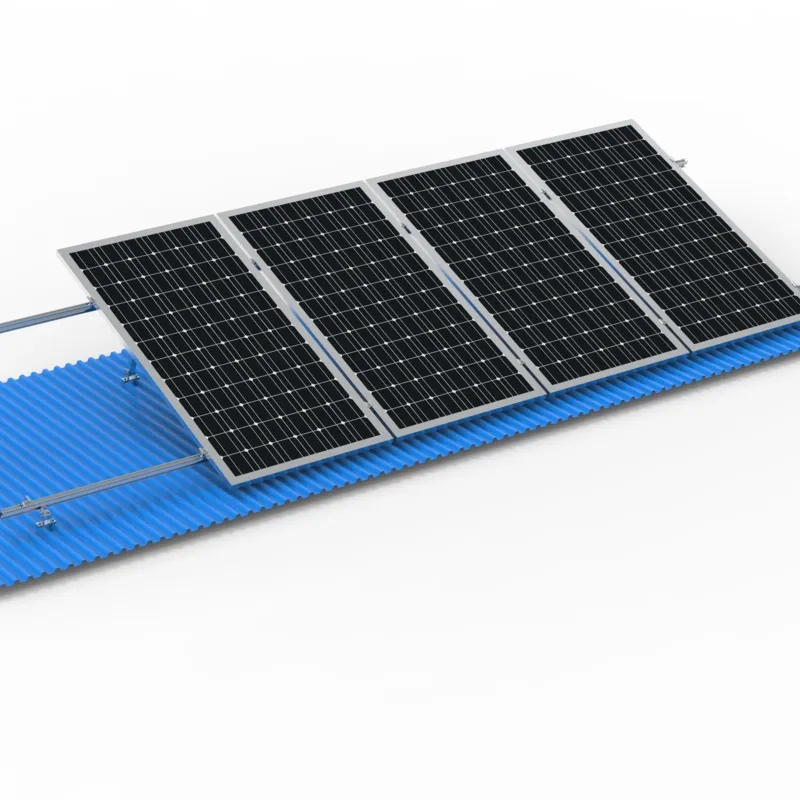

Install solar rail (R50 rail) to the front leg and rear leg.

The solar panel is fixed using solar end clamps and middle clamps.

Technical Parameters

Product Material	High strength extrusion Aluminum 6005-T5 + SS304 bolt
Installation Site	Solar Mounting Rail, roof rail, ground rail
Wind Speed	Up to 60m/s
Snow Load	Up to 1.5KN/m2
Warranty	10 years in material
Standard	AS/NZS 1170, JISC8955, Euro Code 8, DIN 1055, IBC 2006
Service Life	25 years

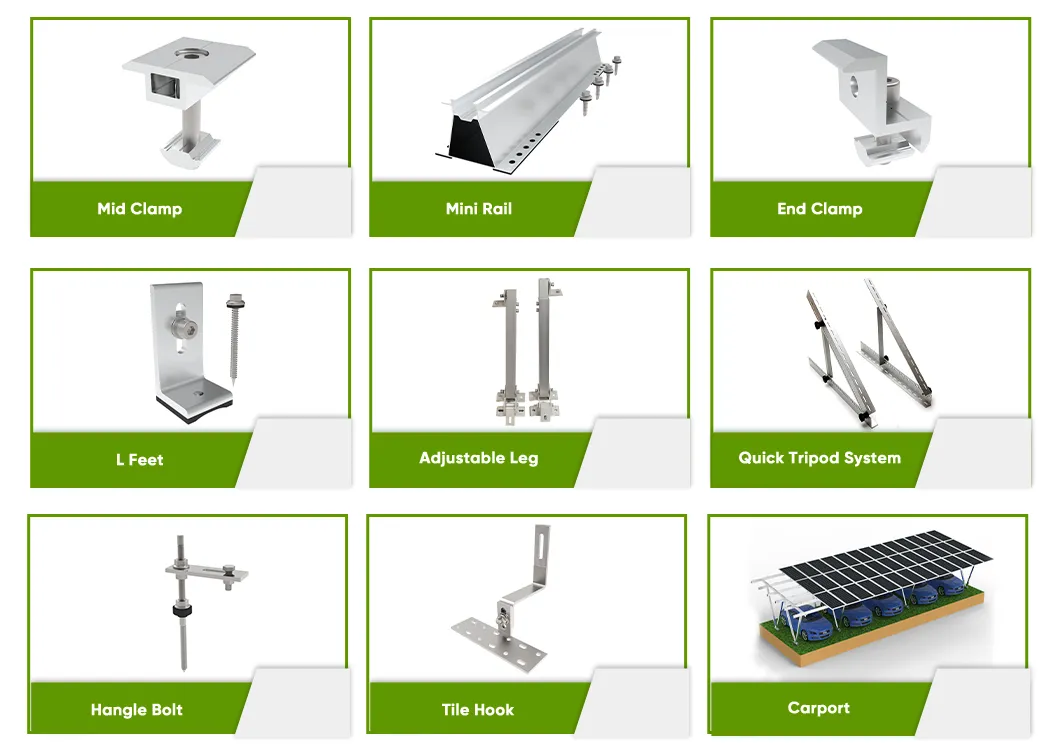

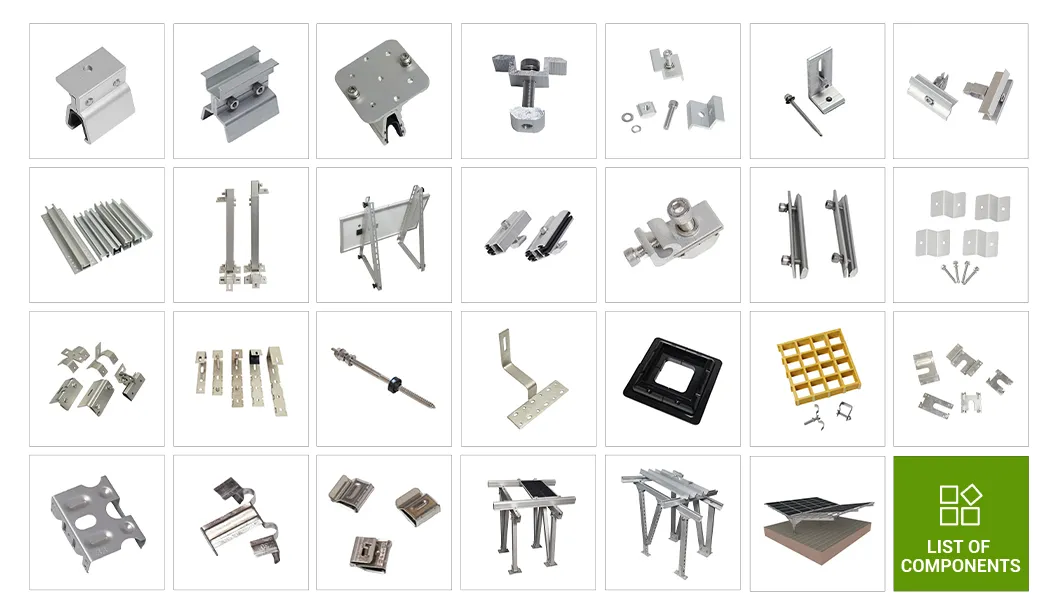

Main Products & Components

Company Profile

Established in 2018, our company is a high-tech enterprise in the renewable energy industry which provides leading patented technology and efficient service. We specialize in the R&D, production, sales and service of solar PV mounting systems with our own independent intellectual property rights. Our mission is to empower the global PV market with more effective and efficient products.

Advantage & Exhibition

Packaging & Shipping

Frequently Asked Questions

Where is your factory located?

Our factory is located in China. We are a specialized manufacturer of solar mounting systems.

Can I have a sample order?

Sure, you are very welcomed to test our sample first. For standard roof mounting components, we offer free samples.

What is the typical production time?

Usually 7 to 10 days. For new design or OEM products, the timeline will be confirmed with our engineering team.

Do you have a Minimum Order Quantity (MOQ)?

We have no MOQ for standard components. For OEM designs, we will discuss the details before opening the mold.

How do I place an order?

Let us know your requirements or project information (Roof, Ground, or Carport). Our team will provide professional suggestions and a design quotation.

What materials are used in your mounting systems?

We primarily use high-strength Aluminum Alloy 6005-T5 and Stainless Steel 304 bolts to ensure durability and corrosion resistance.
