Basic Specifications
Transport Package
Standard Wooden Case
Specification

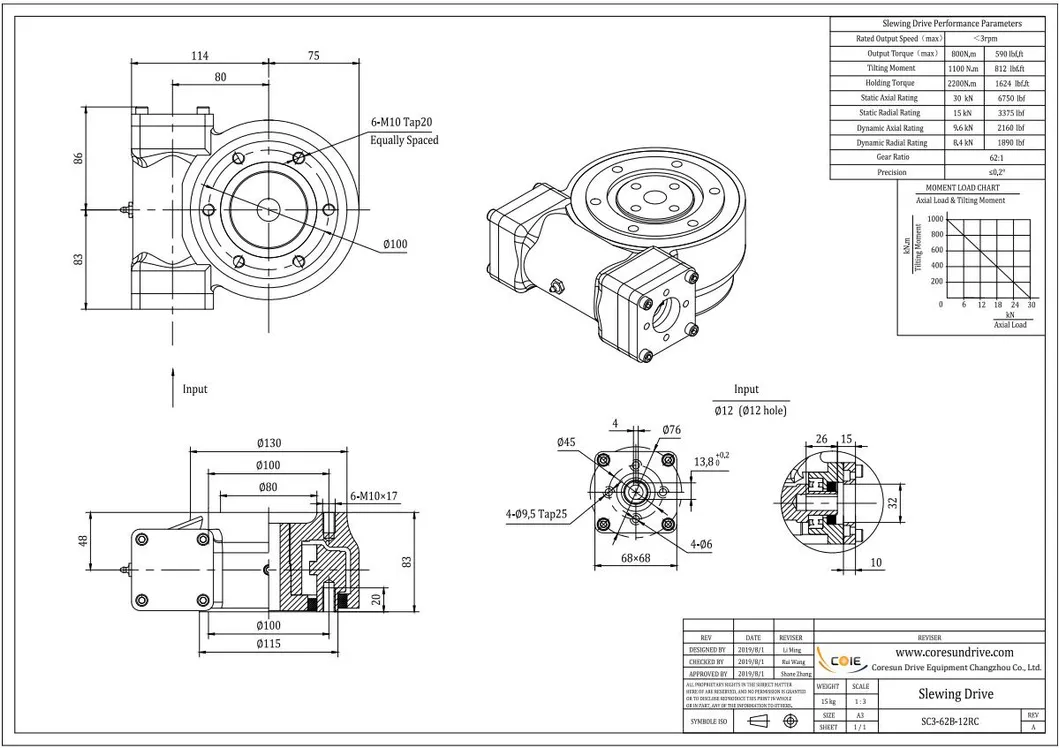

SC3-62B-12RC
Technical Parameters
| Model |
SC3 |
Load Weight |
50-200kg |
| IP Class |
IP65 |
Output Torque |
800N.m |
| Tilting Moment Torque |
1.1kN.m |
Holding Torque |
2.2kN.m |
| Precision |
≤0.1° |
Rated current |
≤6A |
| Gear Ratio |
62:1 |
Efficiency |
40% |
Product Advantages
◆
(1) Modular Design
Due to the high integration of the rotary drive, there is no need to purchase and produce each component of the rotating equipment one by one, which reduces the early preparation process for production and significantly improves labor efficiency.
◆
(2) High Security & Self-locking
The gear and rack transmission system features reverse-direction locking. Only the worm can drive the gear, preventing external forces from moving the system. This makes it ideal for lifting and climbing equipment, improving overall server reliability and safety.
◆
(3) Simplified Design Scheme
High transmission ratios can be achieved, potentially saving costs on reducer components for servers. This reduces product expenses and significantly lowers the incidence of common server failures.
Production & Application

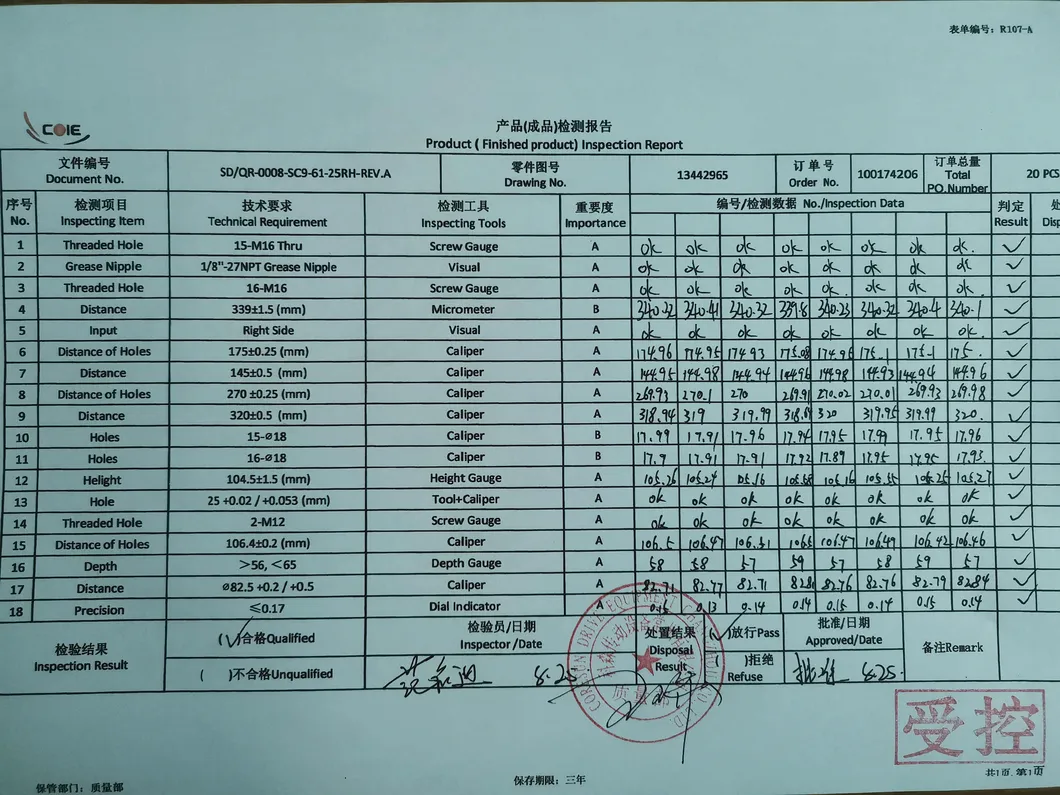

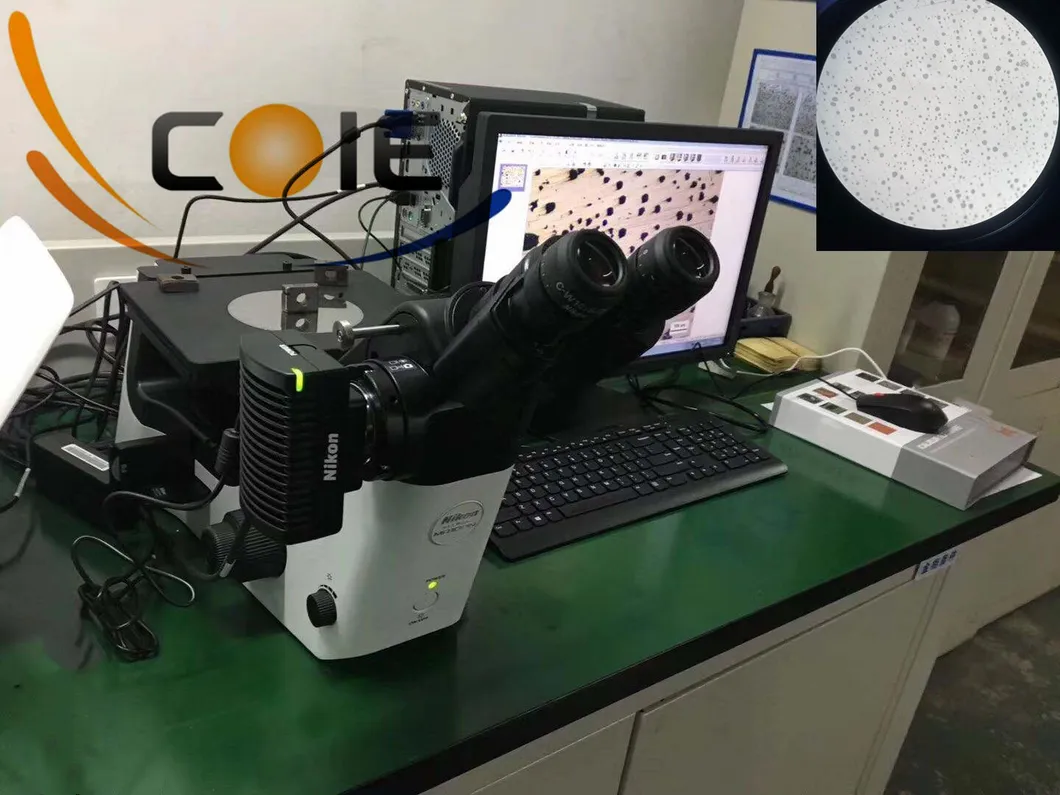

Quality assurance is maintained through rigorous metallographic analysis of the worm shaft, slewing gear, and bearings, followed by 100% finished product inspection.

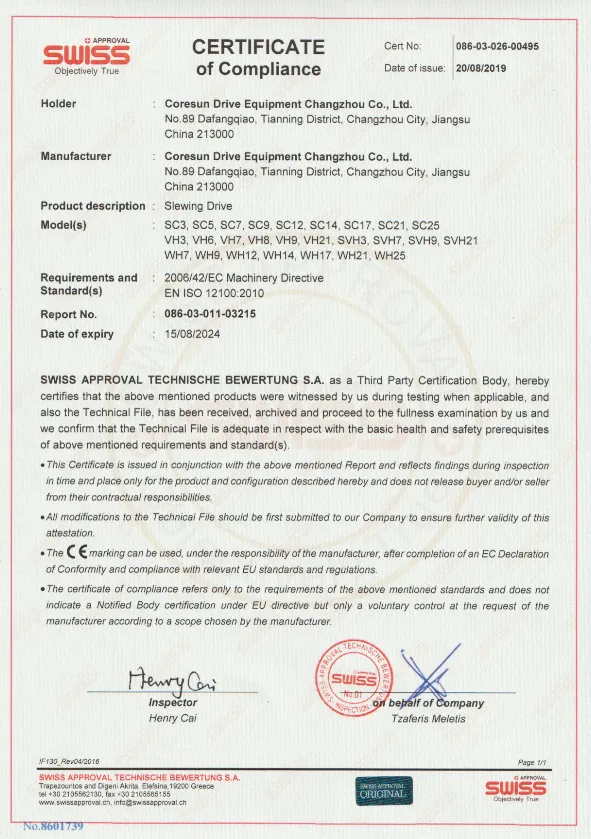

Certification
The slewing drive worm gear systems equipped with 24VDC/12VDC motors are fully CE certified.
Frequently Asked Questions
Q1: What is the protection rating of the SC3 slewing drive?
The SC3 model features an IP65 protection class, making it resistant to dust and low-pressure water jets, suitable for outdoor solar tracking environments.
Q2: Can this drive be used for satellite antennas?

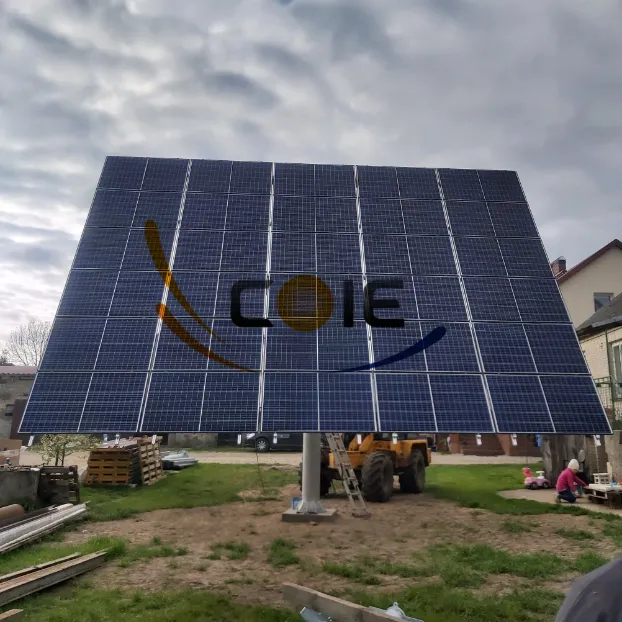

Yes, it is specifically designed for satellite antennas and PV/CPV solar tracking systems requiring high precision and reliability.
Q3: What is the tracking precision of this model?
The SC3 slewing drive offers high precision with a tracking accuracy of ≤0.1°.
Q4: Does the system support self-locking?
Yes, the worm gear design provides a self-locking feature which prevents the output shaft from being driven by the load, ensuring safety in static positions.
Q5: What is the typical lead time and capacity?
The standard delivery time is 7 days, and our production capacity reaches up to 5000 units per month.
Q6: What voltage motors are compatible with this drive?
It is commonly integrated with 12VDC or 24VDC motors and is CE certified for these configurations.
