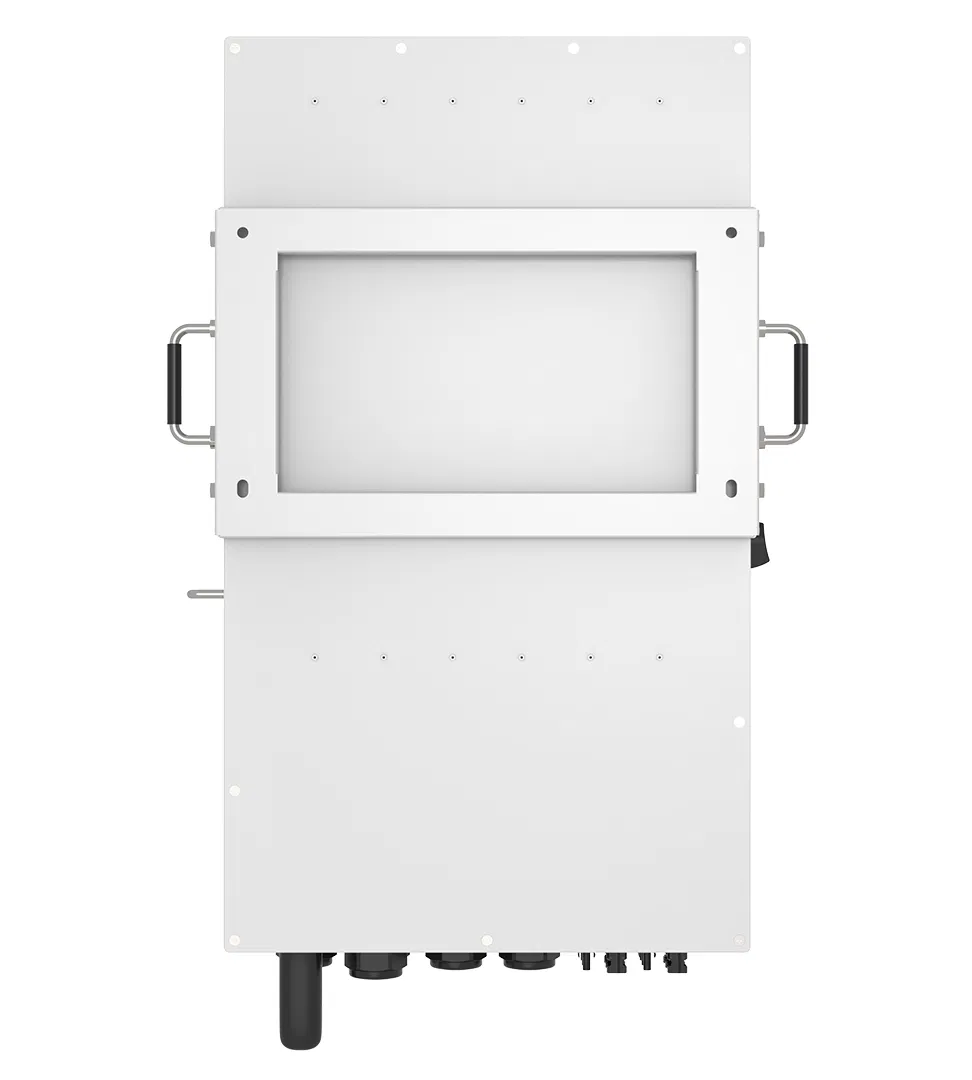

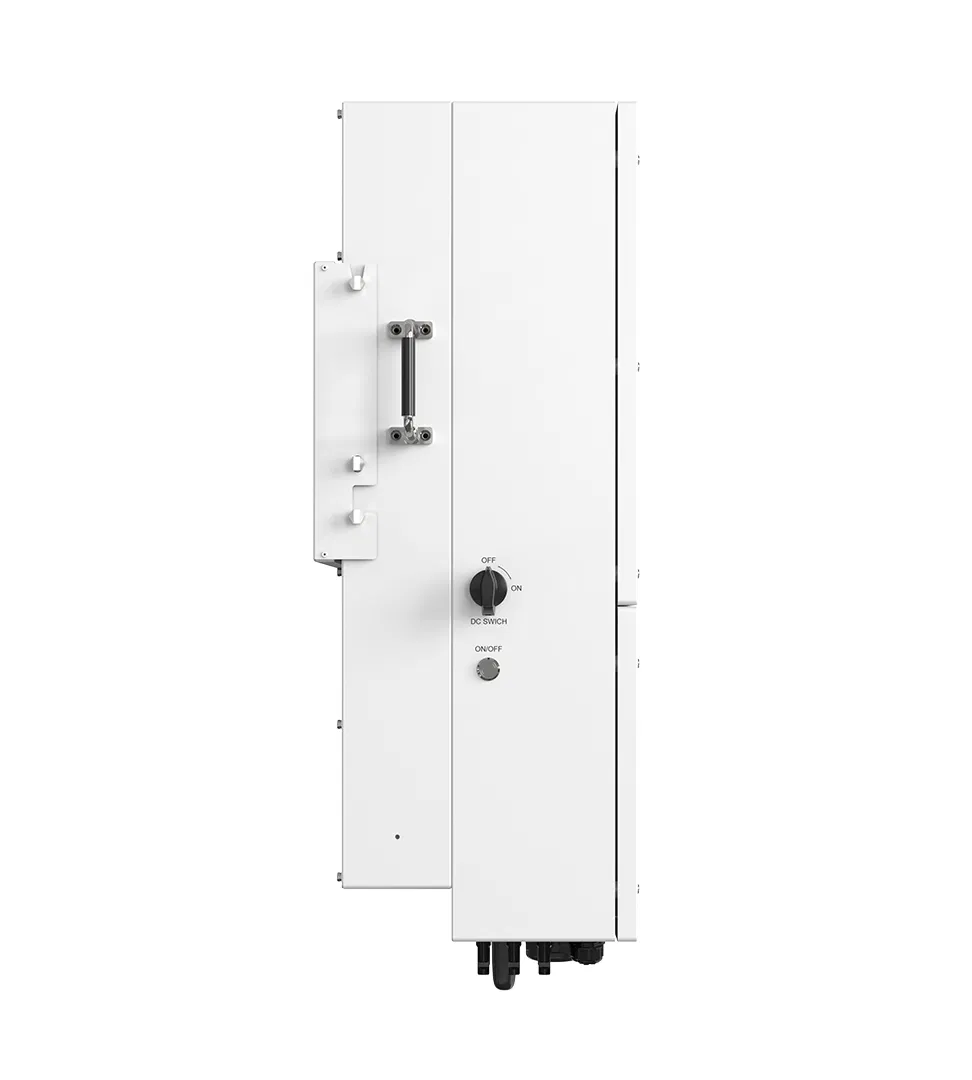

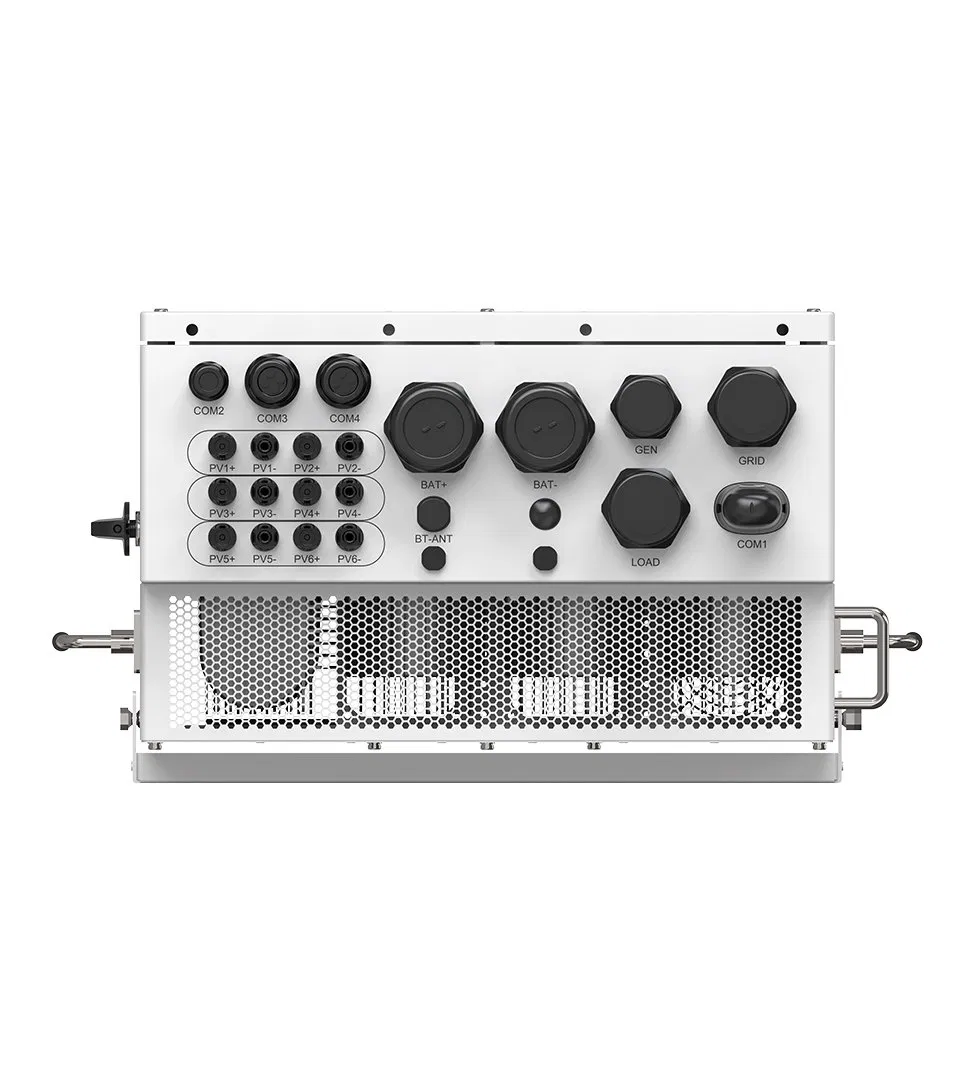

Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
1 / 5
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter

Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
S6-EH1P(3-8)K-L-PLUS
Nature of Source Flow
Active Inverter
Phase
Single
Output Power
3-8kw
Certification
SAA, CE, ROHS, ISO9001, CCC
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Input Voltage
500V
Output Voltage
220V/230V
Communication
RS485, Can, Optional: Wi-Fi, GPRS, LAN
Protection
IP66
Battery Type
Lead Acid / Lithium
Product Description

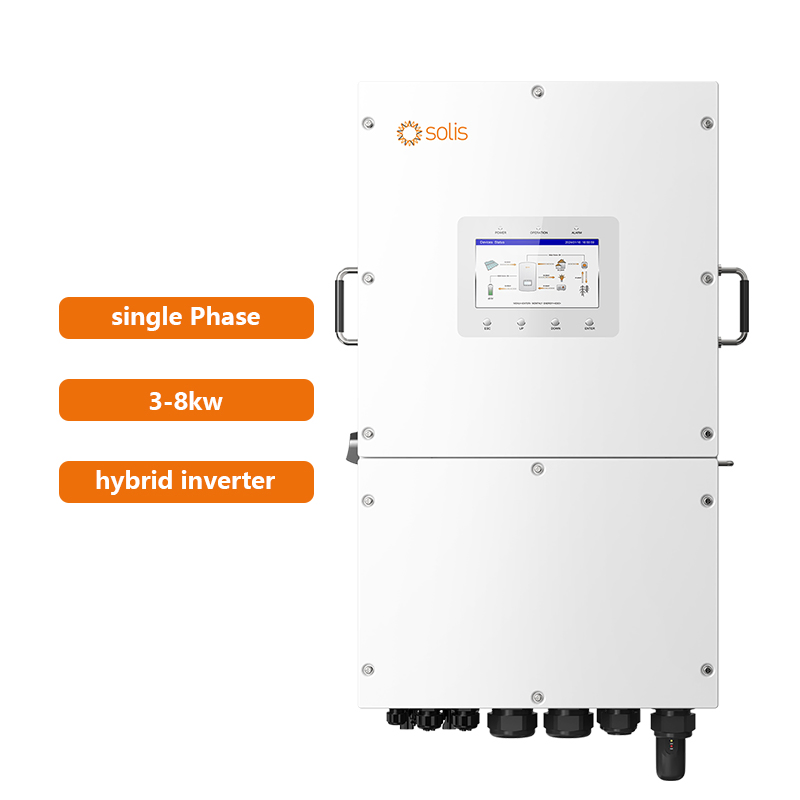

Solis Hybrid Solar Inverter S6-EH1P(3-8)K-L-PLUS 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Hybrid Solar Inverter Overview Product Performance
Product Parameters
Models 3K 3.6K 5K 6K 8K
Input DC (PV side)
Recommended max. PV array size 6 kW 7.2 kW 10 kW 12 kW 16 kW
Max. input voltage 500 V
MPPT voltage range 90-435 V
Battery
Battery type Li-ion / Lead-acid
Battery voltage range 40-60 V
Max. charge / discharge power 3 kW 3.6 kW 5 kW 6 kW 8 kW
Output AC (Grid side)
Rated output power 3 kW 3.6 kW 5 kW 6 kW 8 kW
Rated grid voltage 220 V / 230 V
Efficiency
Max. efficiency 97.5%
EU efficiency 96.5%

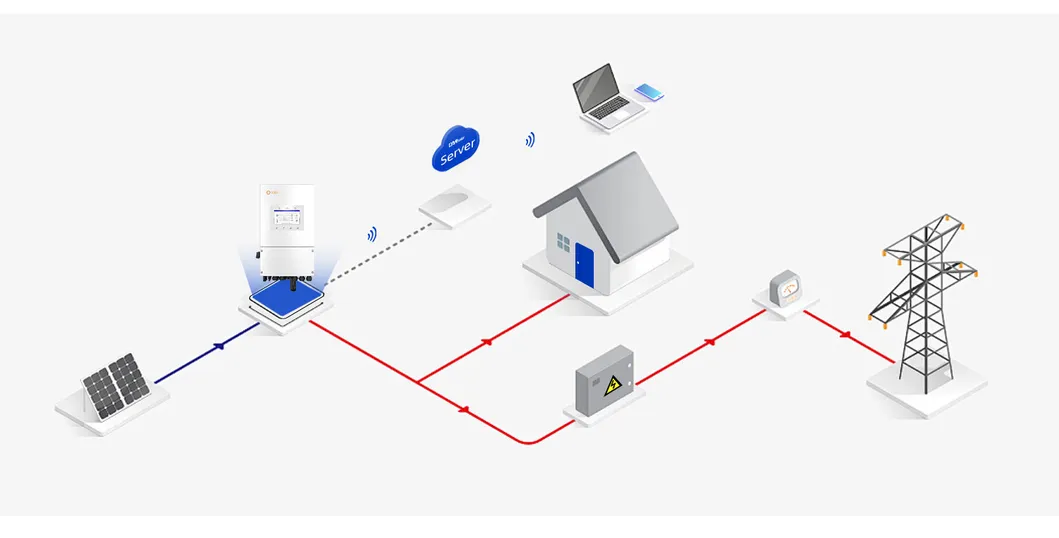

Basic System Architecture
System Architecture Diagram
Packaging & Shipping

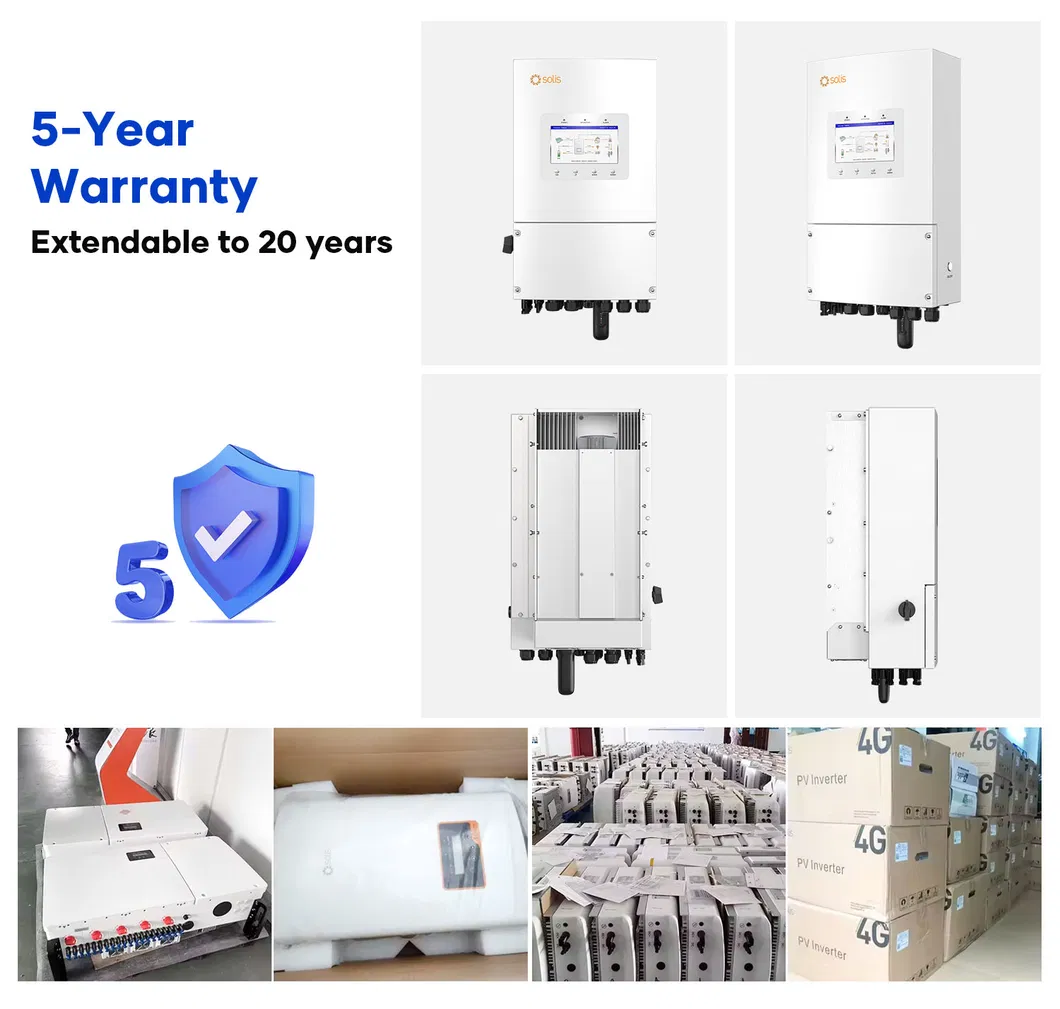

Packaging Details
Project Case

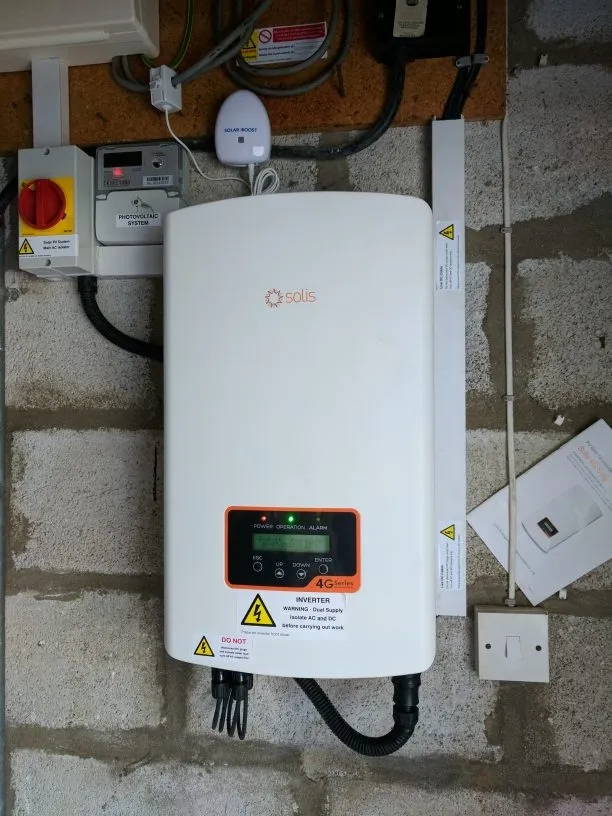

Installation Project 1

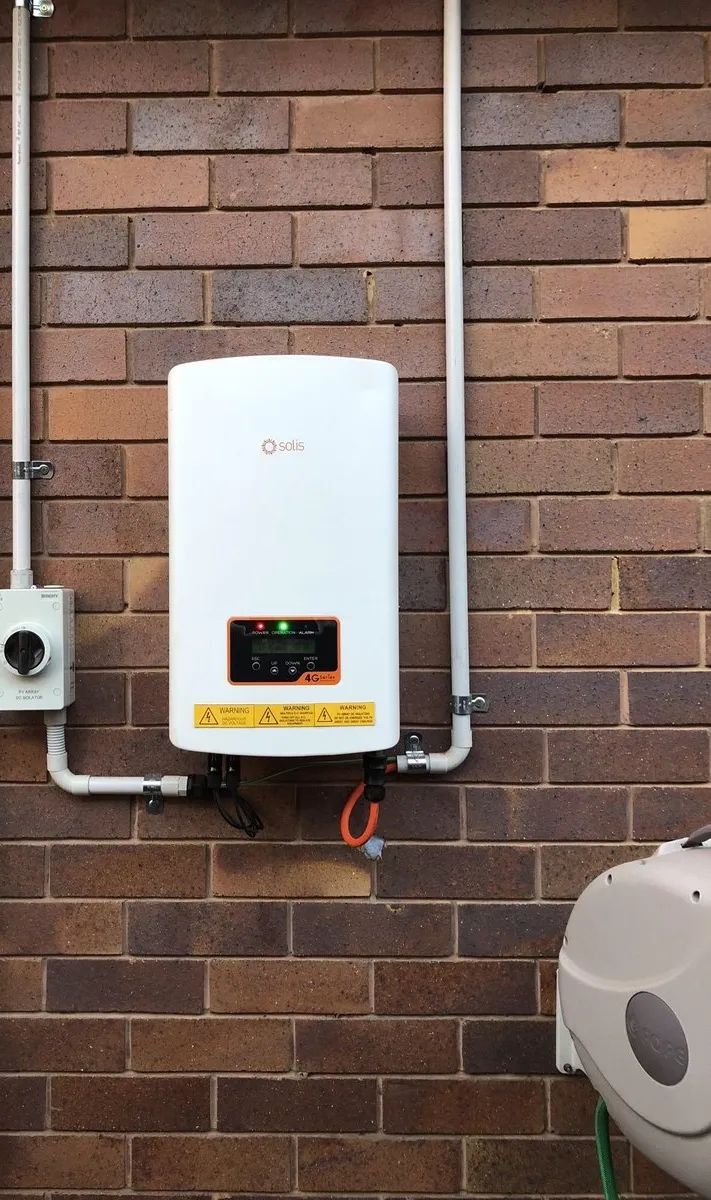

Installation Project 2

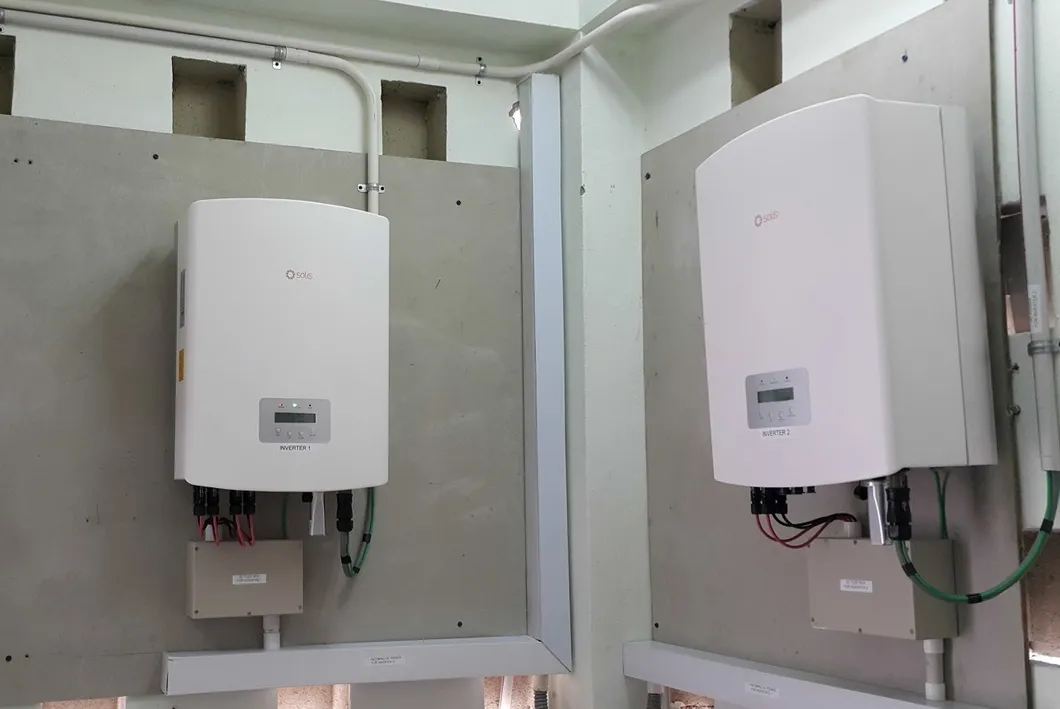

Installation Project 3

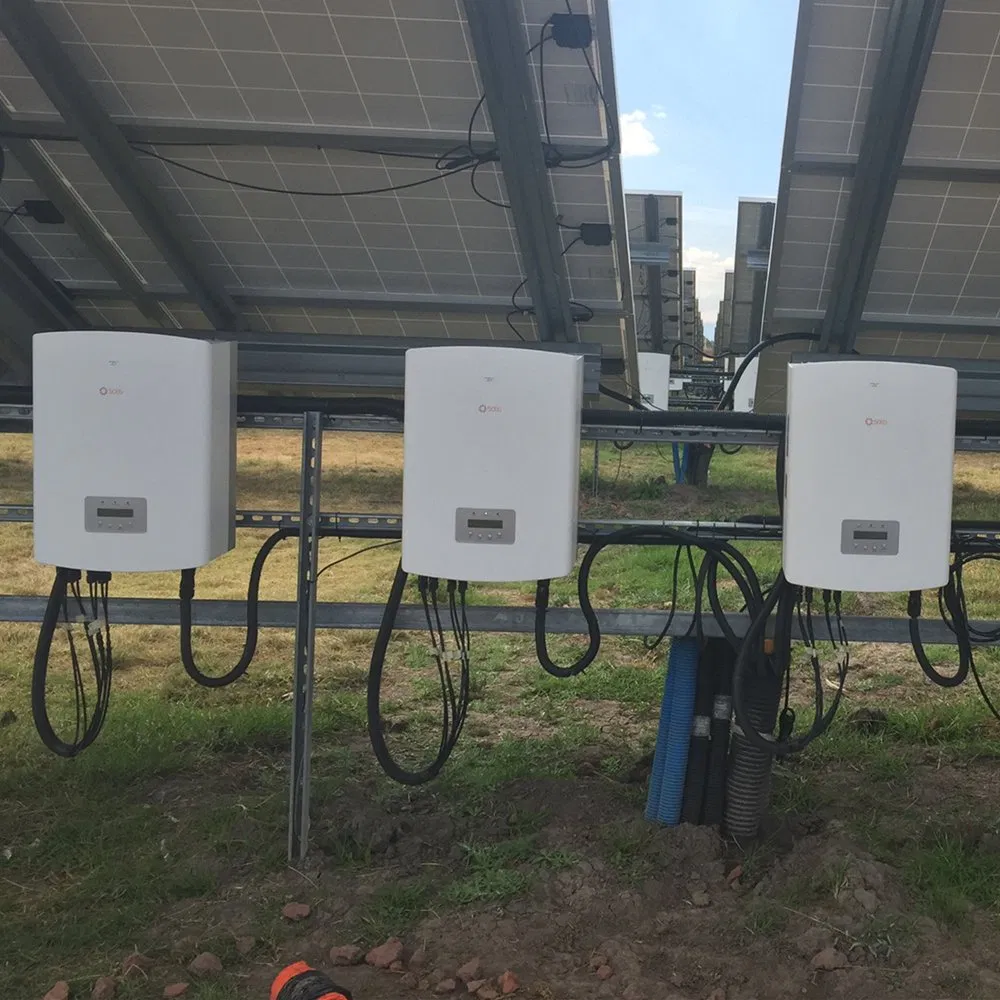

Installation Project 4

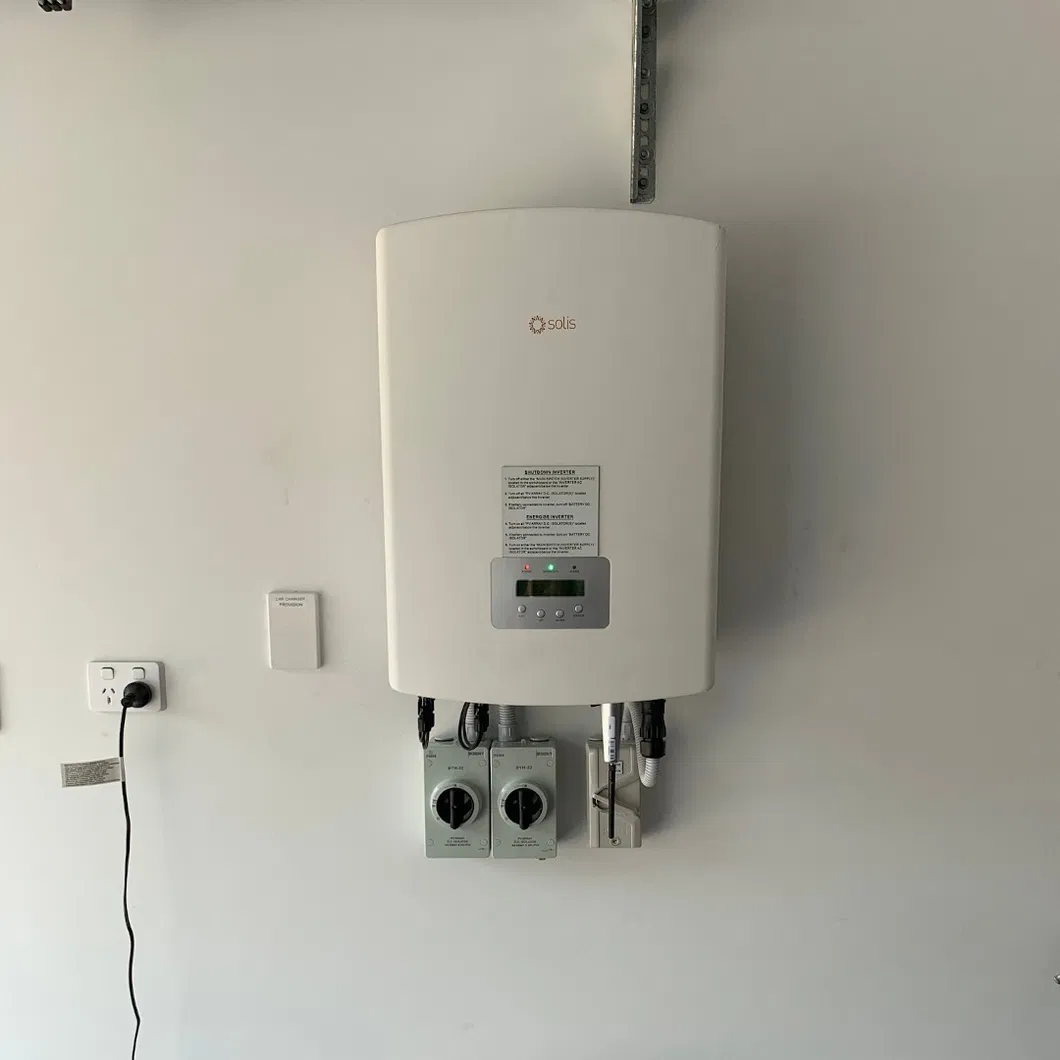

Installation Project 5
Frequently Asked Questions
What types of batteries are compatible with this hybrid inverter?
The S6-EH1P series is compatible with both Lithium-ion and Lead-acid batteries with a voltage range of 40-60V.
How fast is the switch time to back-up power?
The back-up switch time is less than 4ms, ensuring an uninterrupted power supply for critical loads.
What is the maximum efficiency of this solar inverter?
The inverter achieves a maximum efficiency of 97.5% and an EU efficiency of 96.5%.
Can this inverter be installed outdoors?
Yes, the inverter has an IP66 ingress protection rating, making it suitable for harsh outdoor environments.
What is the operating temperature range?
The inverter can operate reliably in temperatures ranging from -40°C to +60°C.
What communication options are available?
Standard communication includes RS485 and CAN. Optional modules are available for Wi-Fi, GPRS, and LAN connectivity.
