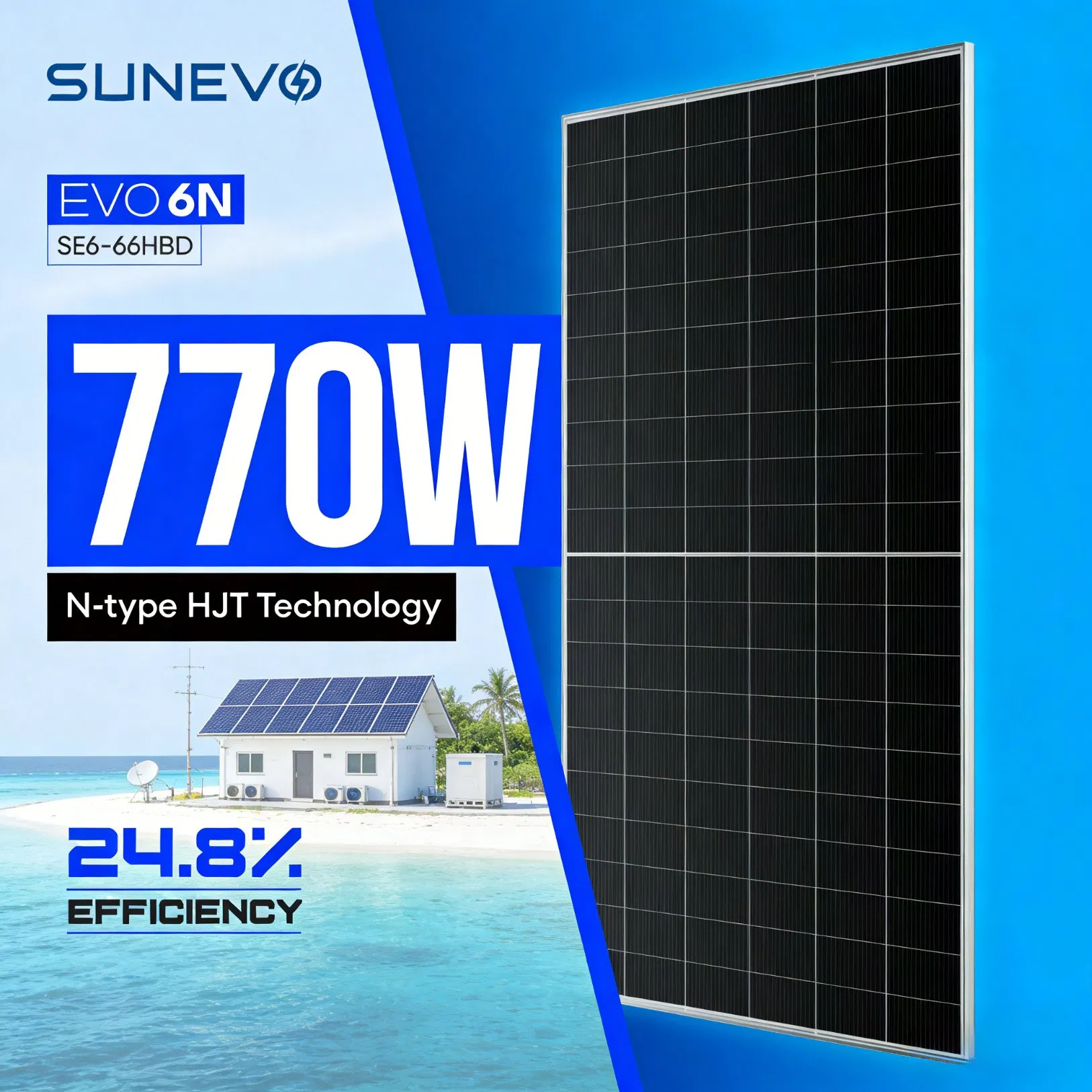

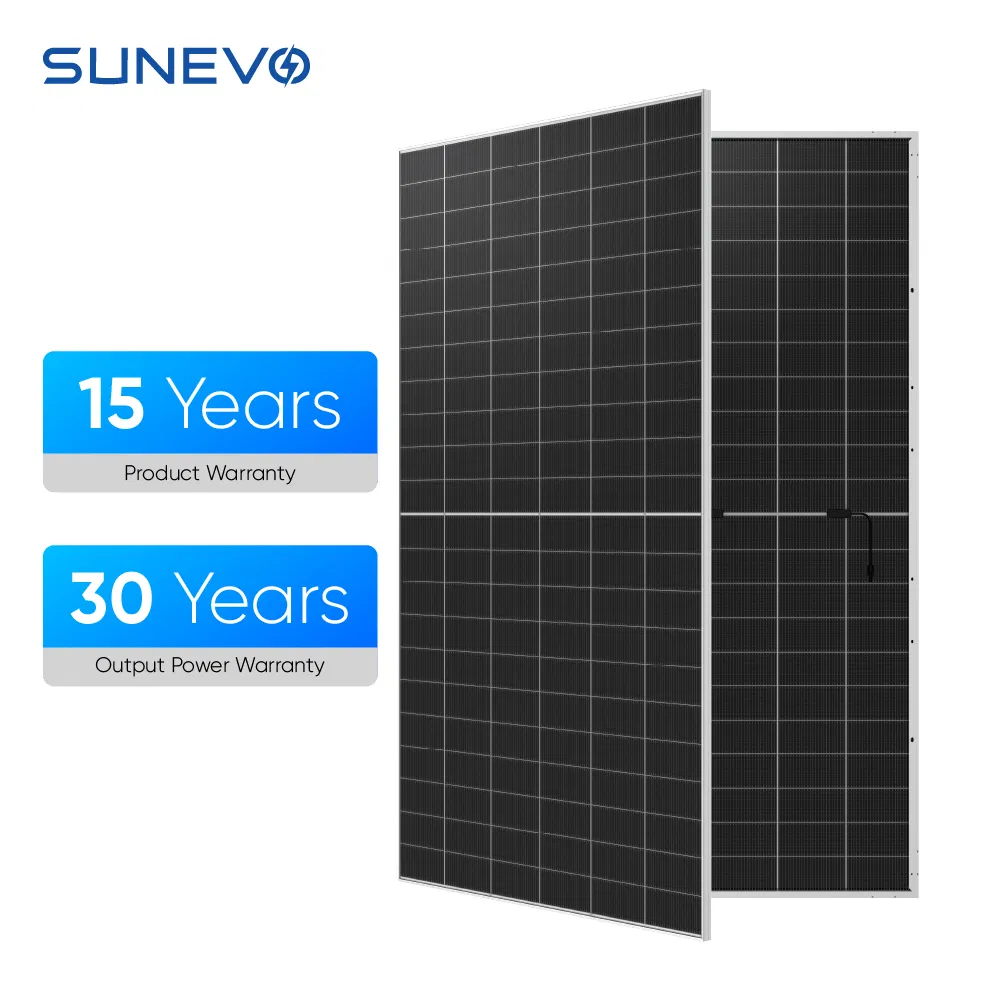

Sunevo Bifacial N Type PV Module 700W 710W 720W 750W 755W 770W Monocrystalline Photovoltaic Solar Panels for Sale

Customization: Available
After-sales Service: Yes
Warranty: 30 Years

Product Description

📋

Basic Information

Application
Industrial
Condition
New
Certification
EST, ISO, CB, CE, TUV
Material
Monocrystalline Silicon
Cell Type
HJT
No. of Cells
132 (6 * 22)
Dimensions
2384 * 1303 * 33mm
Weight
37.9kg
Junction Box
IP68
Glass
Dual Glass, 2.0mm
Frame
Anodized Aluminum Alloy
Max Static Load
5400PA / 2400PA
☀️

Product Description

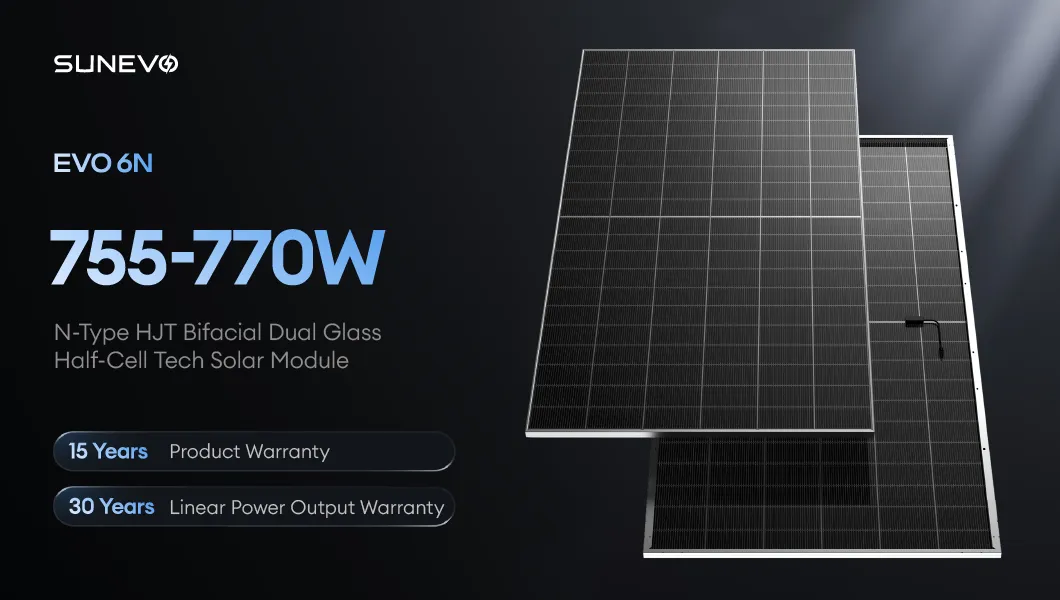

Bifacial N Type PV Module
Model 755 760 765 770
Testing Condition STC NOCT STC NOCT STC NOCT STC NOCT
Max Power (Pmax/W) 755 576 760 580 765 584 770 587
Max Power Voltage (Vmp/V) 42.13 40.25 42.22 40.33 42.30 40.41 42.39 40.49
Max Power Current (Imp/A) 17.92 14.32 18.00 14.39 18.09 14.46 18.17 14.52
Open Circuit Voltage (Voc/V) 50.16 47.87 50.26 47.97 50.36 48.07 50.46 48.16
Short Circuit Current (Isc/A) 19.06 15.24 19.15 15.31 19.24 15.38 19.33 15.45
Module Efficiency (%) 24.30 24.50 24.60 24.80

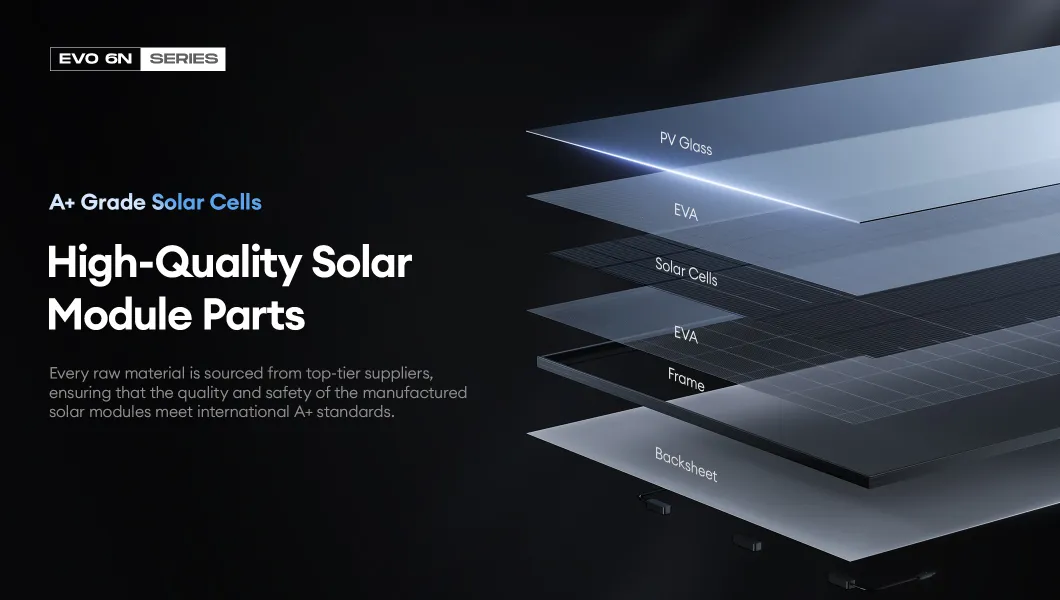

Solar Panel Features
  • Higher Conversion Efficiency: HJT cells inherently possess high open-circuit voltage and low degradation characteristics. Combined with OBB technology to eliminate the main busbar, reducing metal shading to below 1%, mass production efficiency can reach over 26%.
  • Enhanced Reliability and Durability: The busbar-less design reduces surface metal stress, lowering the risk of hot spots and microcracks. HJT cells exhibit outstanding resistance to PID and LeTID.
  • Strong Compatibility: OBB technology eliminates the need for main busbar materials, simplifying manufacturing. Compatible with thinner wafers (below 120μm), reducing silicon consumption.
  • Wider Application Adaptability: Aesthetic appearance with no main busbar shading makes it ideal for BIPV and distributed projects with limited rooftop space.

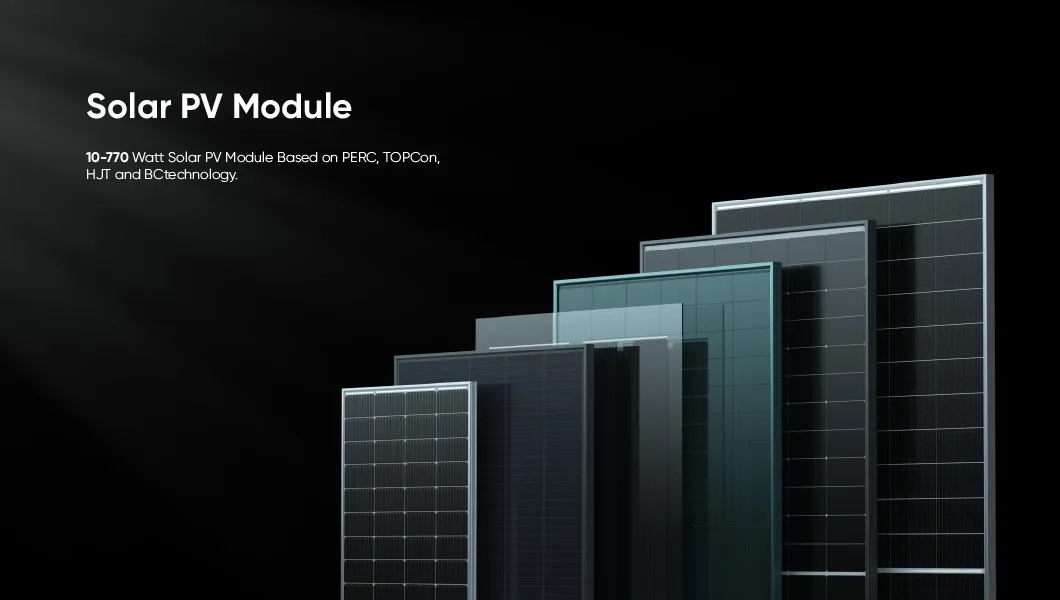

Manufacturing Range

We specialize in the production and sale of solar components ranging from 10W components for street lights to 770W components for large-scale power plants, utilizing N-type TOPCon, HJT, and BC technologies.

📦

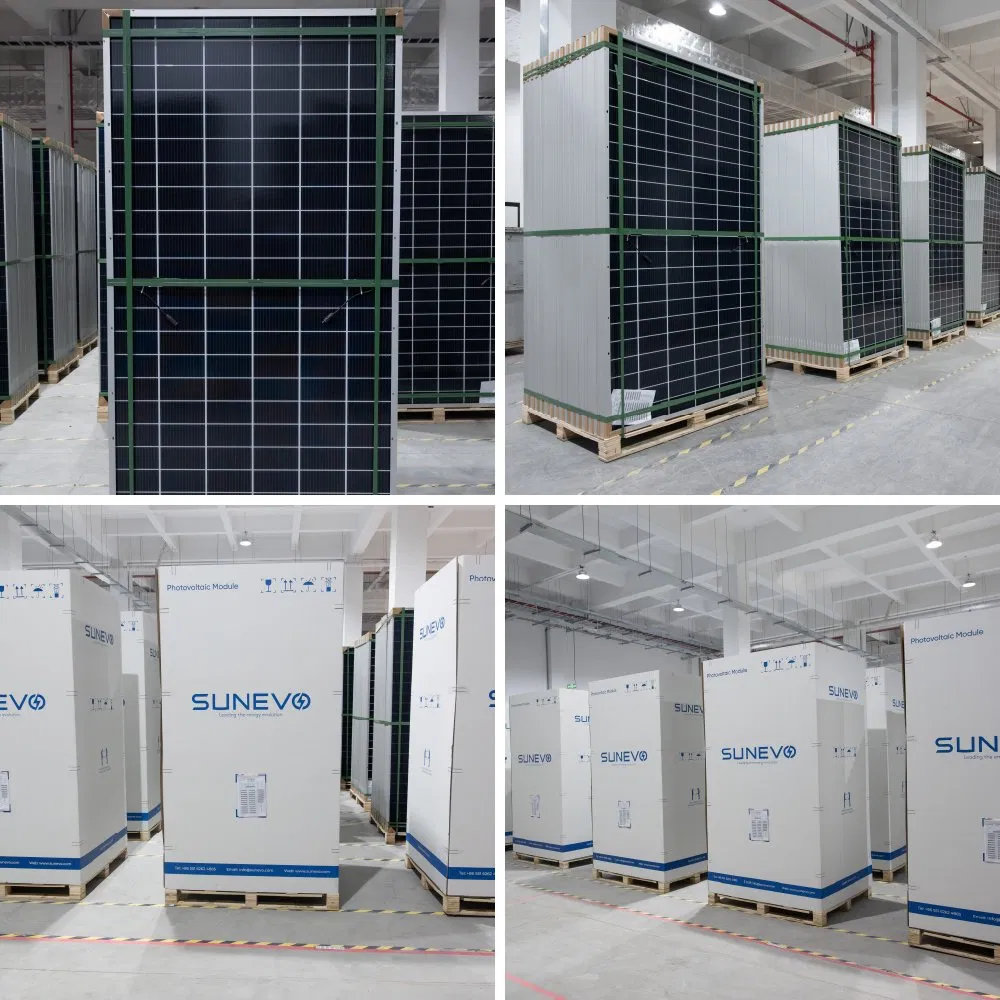

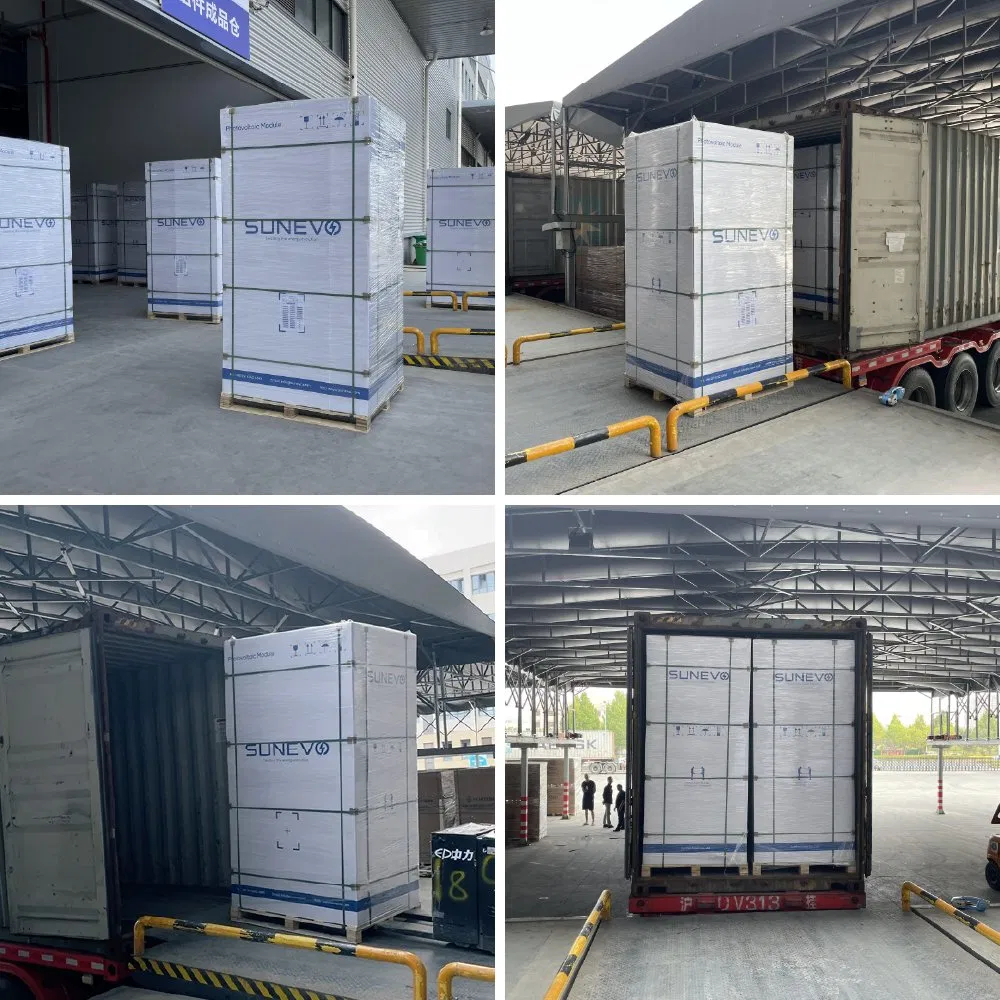

Packaging & Delivery

Solar modules are packaged using international standard sizes and materials. We offer customized packaging and logo services in various colors to meet OEM requests.

Packaging Details
🏭

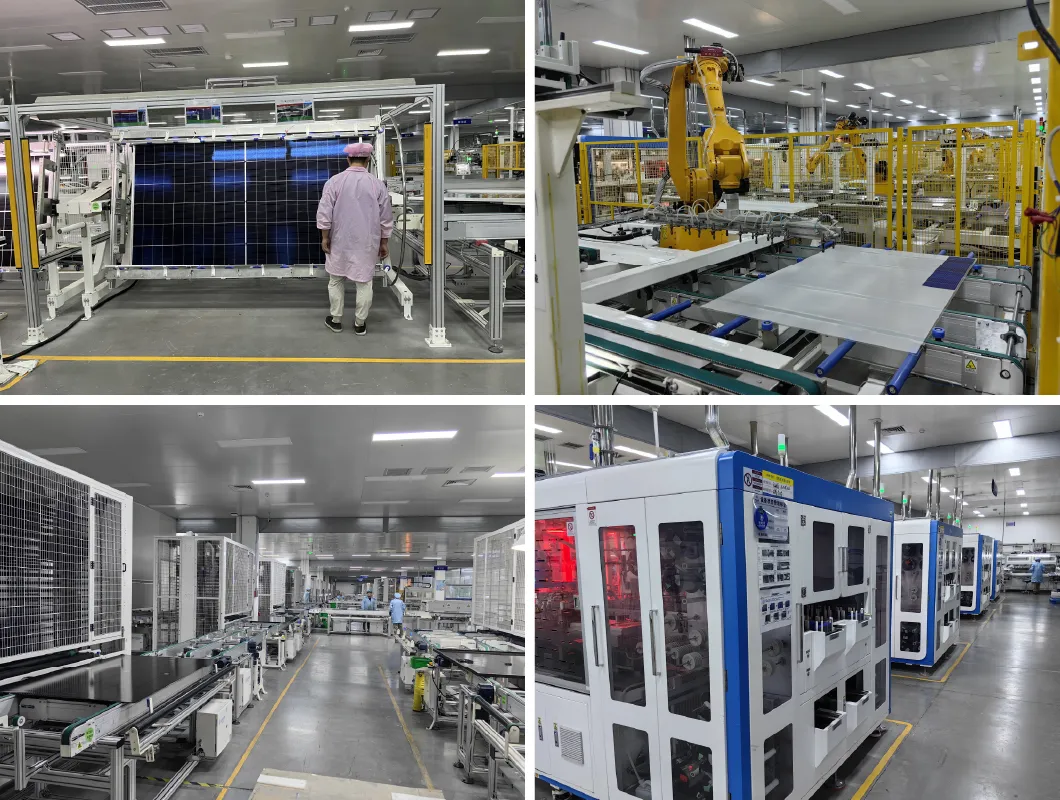

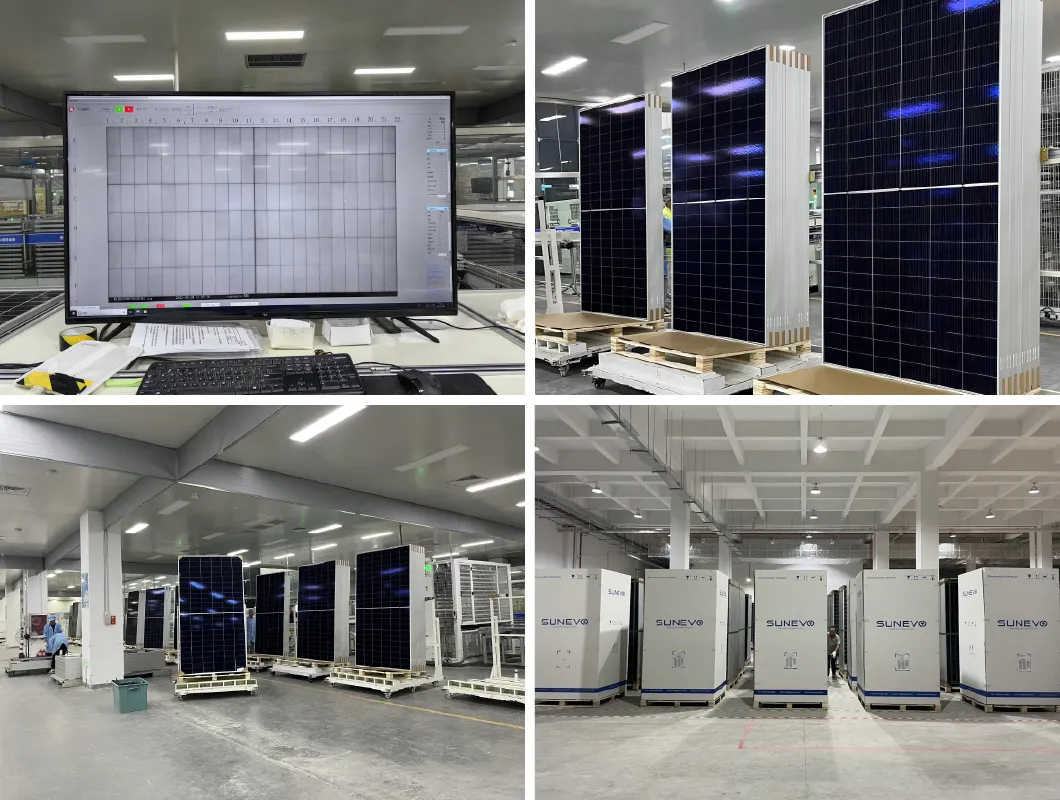

Our Factory

Our factory utilizes fully automated production lines, significantly improving manufacturing efficiency and shortening delivery times while prioritizing safety and quality.

📜

Certifications & Customized Services

Certifications
Customized Services
🏗️

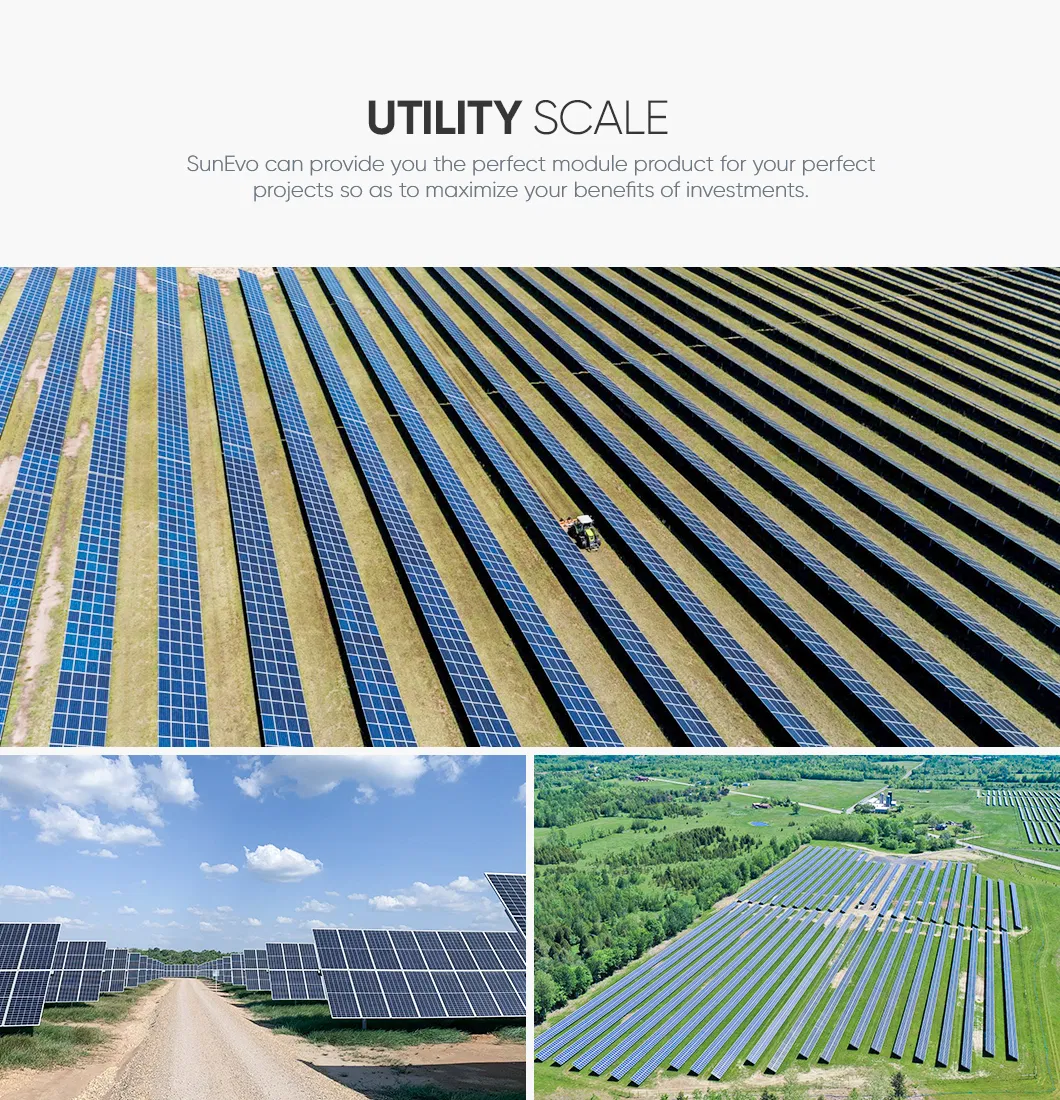

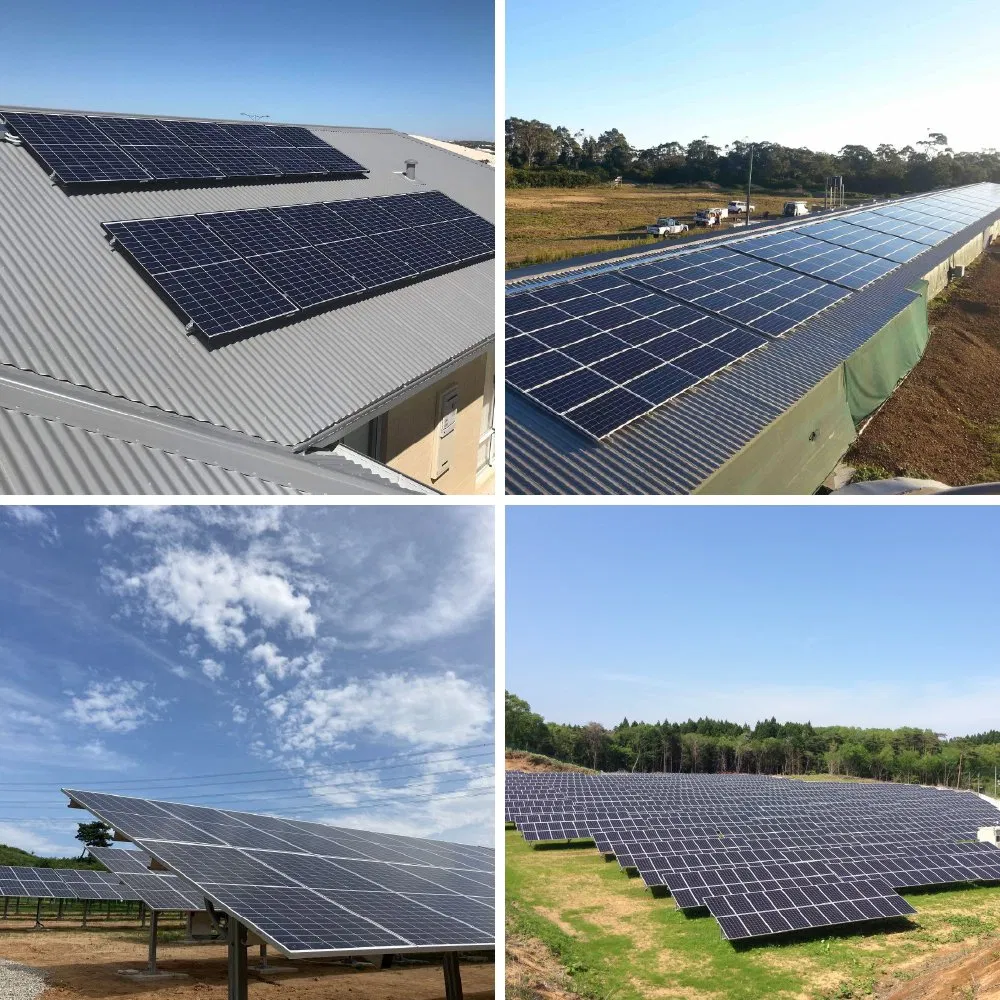

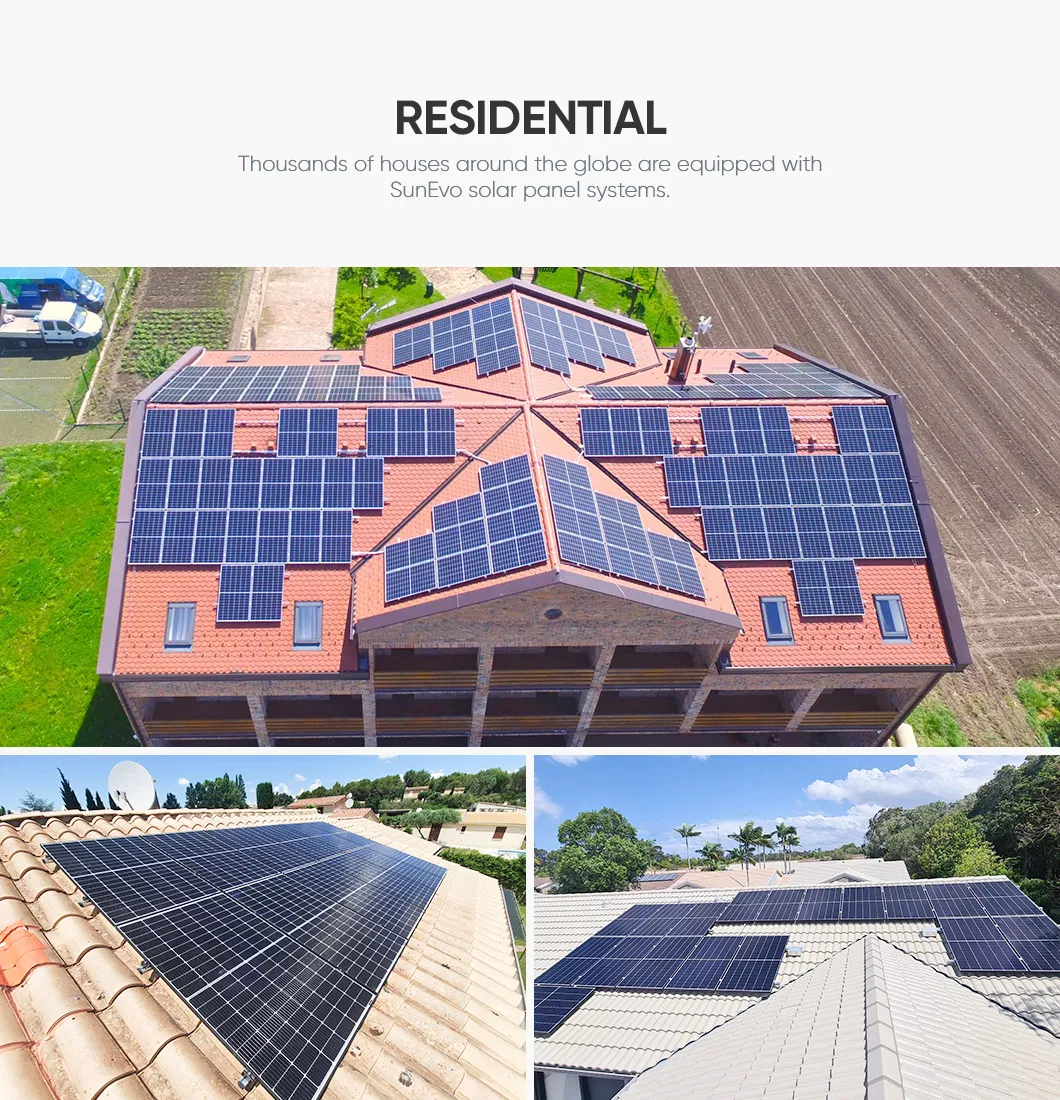

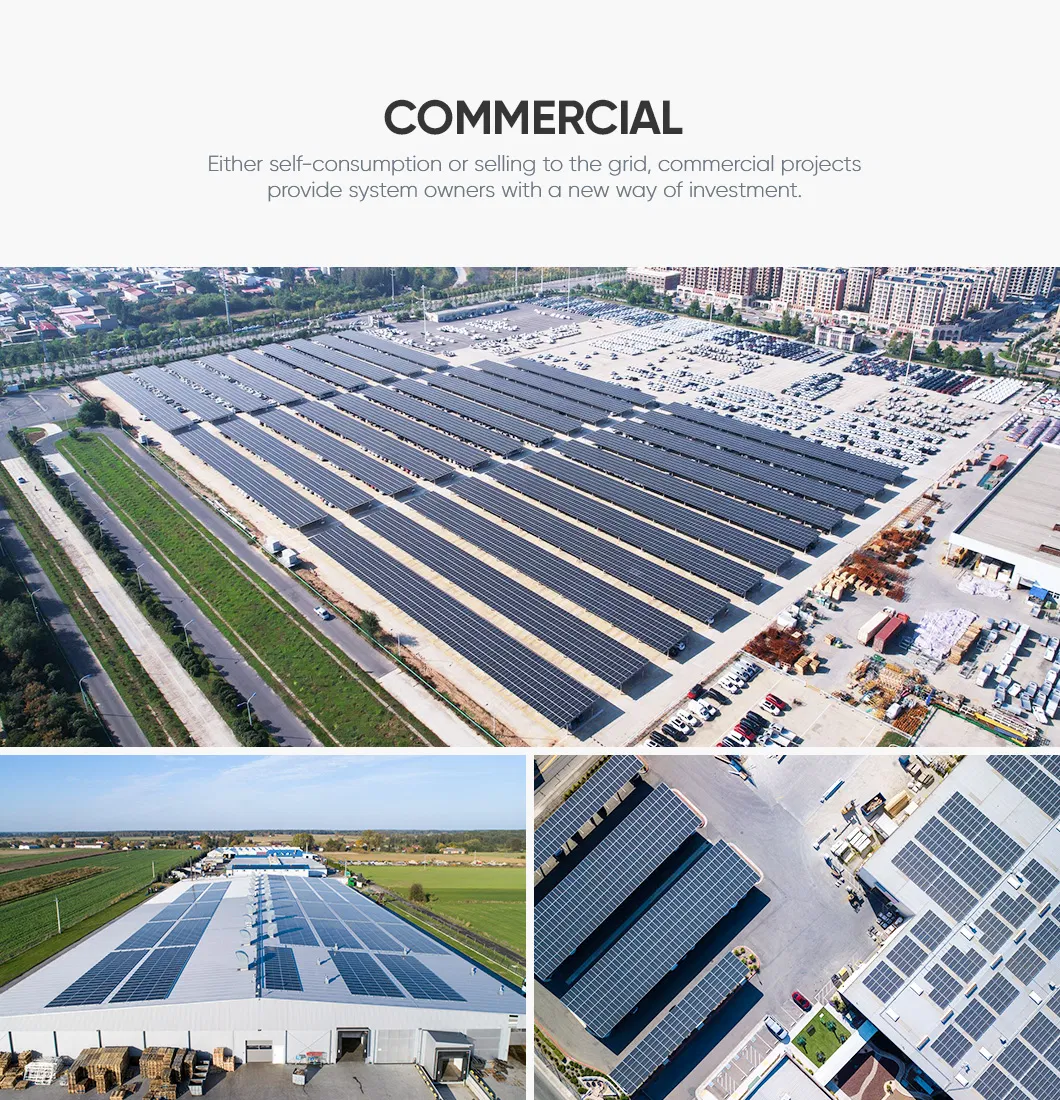

Project Cases

Contact Support
Frequently Asked Questions
What are the main advantages of HJT solar modules?
HJT (Heterojunction) modules offer higher conversion efficiency (over 26%), excellent low-light performance, and a very low temperature coefficient, ensuring better power yield in various climates.
How does OBB technology improve panel performance?
OBB (Over-Busbar) technology eliminates traditional main busbars, reducing shading on the cell surface to below 1% and lowering series resistance losses, which directly increases power output.
Are these solar panels resistant to degradation?
Yes, the heterojunction structure provides superior resistance to Potential-Induced Degradation (PID) and Light and elevated Temperature Induced Degradation (LeTID), ensuring long-term reliability.
What is the maximum power range available?
Our high-efficiency N-type HJT modules are available in power ratings ranging from 700W up to 770W, suitable for large-scale utility projects and industrial applications.
Can the modules withstand extreme weather conditions?
Absolutely. The modules are designed with a dual-glass structure and anodized aluminum alloy frames, supporting a maximum static load of 5400PA on the front (snow) and 2400PA on the back (wind).
Do you offer customized services for solar projects?
Yes, we provide OEM and customized services, including specific packaging, logo printing, and tailored component sizes to meet diverse project requirements.
