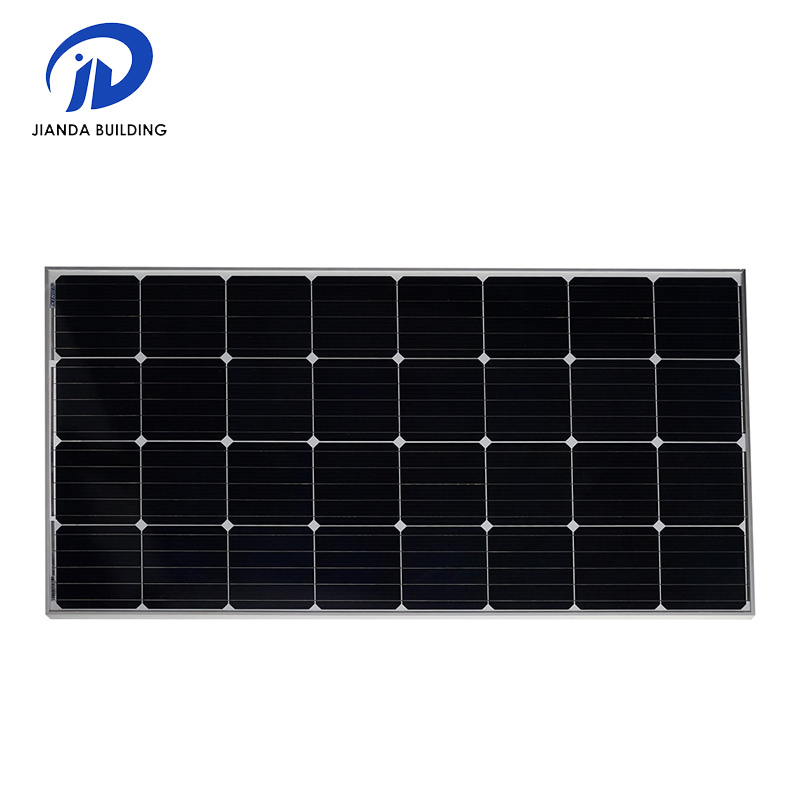

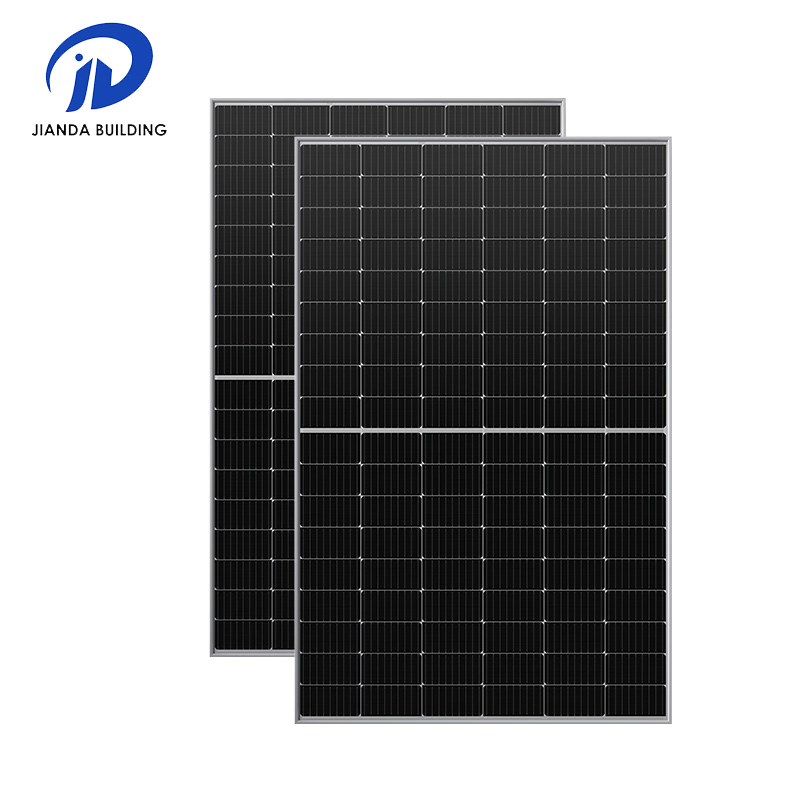

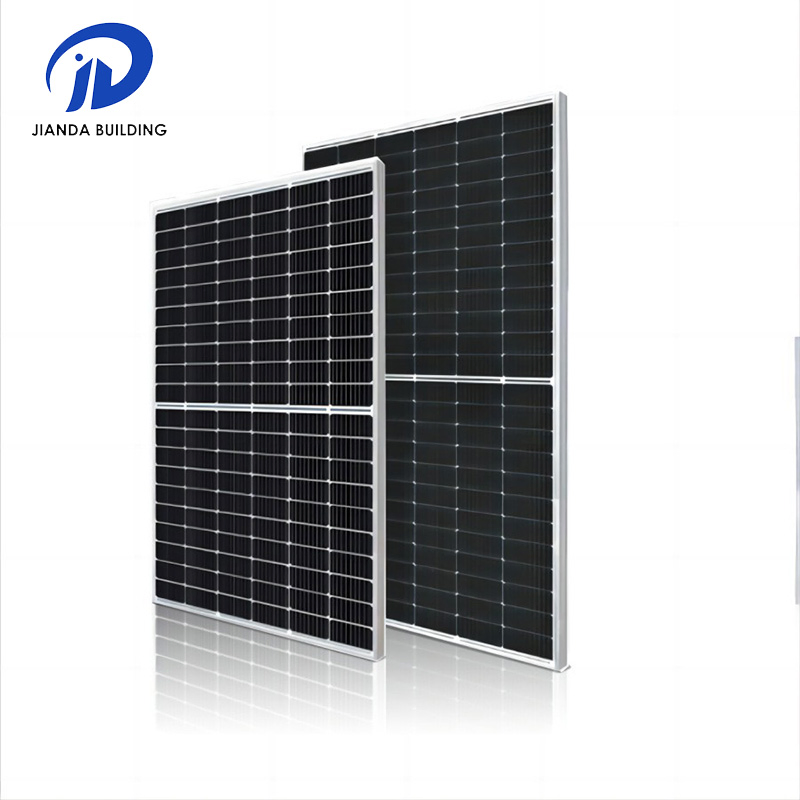

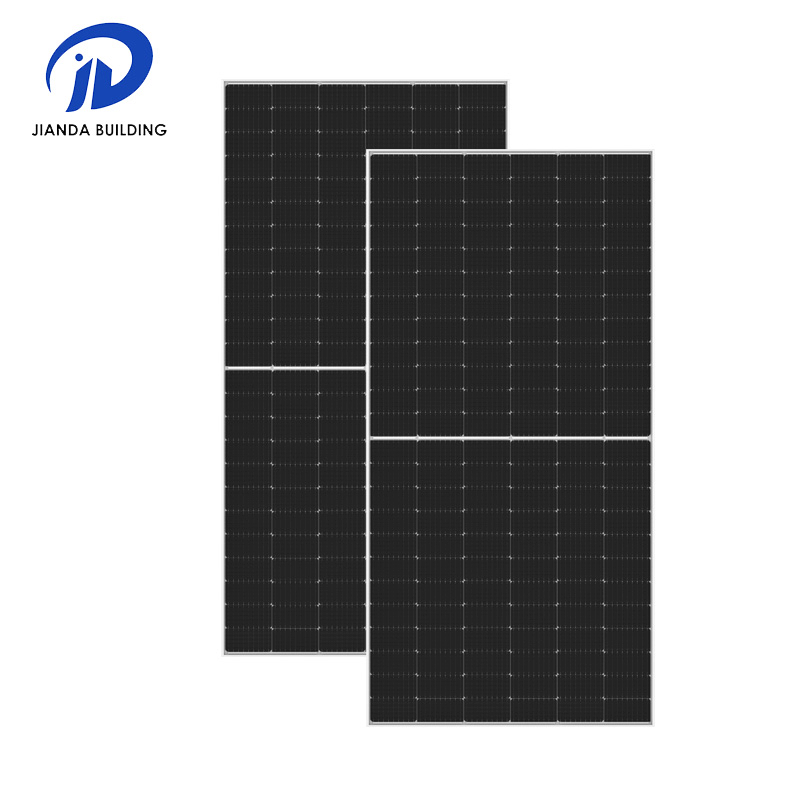

Stock Topcon PV Module Solar Panel Solar Photovoltaic Panels 430W 400W 500W 450W 550W Bifacial All Black
Stock Topcon PV Module Solar Panel Solar Photovoltaic Panels 430W 400W 500W 450W 550W Bifacial All Black
Stock Topcon PV Module Solar Panel Solar Photovoltaic Panels 430W 400W 500W 450W 550W Bifacial All Black
Stock Topcon PV Module Solar Panel Solar Photovoltaic Panels 430W 400W 500W 450W 550W Bifacial All Black
Stock Topcon PV Module Solar Panel Solar Photovoltaic Panels 430W 400W 500W 450W 550W Bifacial All Black
1 / 5
Stock Topcon PV Module Solar Panel Solar Photovoltaic Panels 430W 400W 500W 450W 550W Bifacial All Black
Stock Topcon PV Module Solar Panel Solar Photovoltaic Panels 430W 400W 500W 450W 550W Bifacial All Black
Stock Topcon PV Module Solar Panel Solar Photovoltaic Panels 430W 400W 500W 450W 550W Bifacial All Black
Stock Topcon PV Module Solar Panel Solar Photovoltaic Panels 430W 400W 500W 450W 550W Bifacial All Black
Stock Topcon PV Module Solar Panel Solar Photovoltaic Panels 430W 400W 500W 450W 550W Bifacial All Black

Stock Topcon PV Module Solar Panel Solar Photovoltaic Panels 430W 400W 500W 450W 550W Bifacial All Black

Customization: Available
After-sales Service: 25 Years
Warranty: 25 Years
Send Inquiry

Product Description

📊 Basic Information
Model NO.
Linuo
Number of Cells
72pcs
Application
Industrial
Condition
New
Certification
EST, ISO, CB, CE
Material
Monocrystalline Silicon
Power
355-380W
Module Dimension
1755×1038×35mm
Weight
20 Kgs
Trademark
LINUO
Origin
Shandong China
HS Code
8419901000
📦 Packaging & Delivery
Package Size
230.00cm * 120.00cm * 5.00cm
Gross Weight
30.000kg
Transport Package
Pallet (30 per pallet)
🔍 Product Description

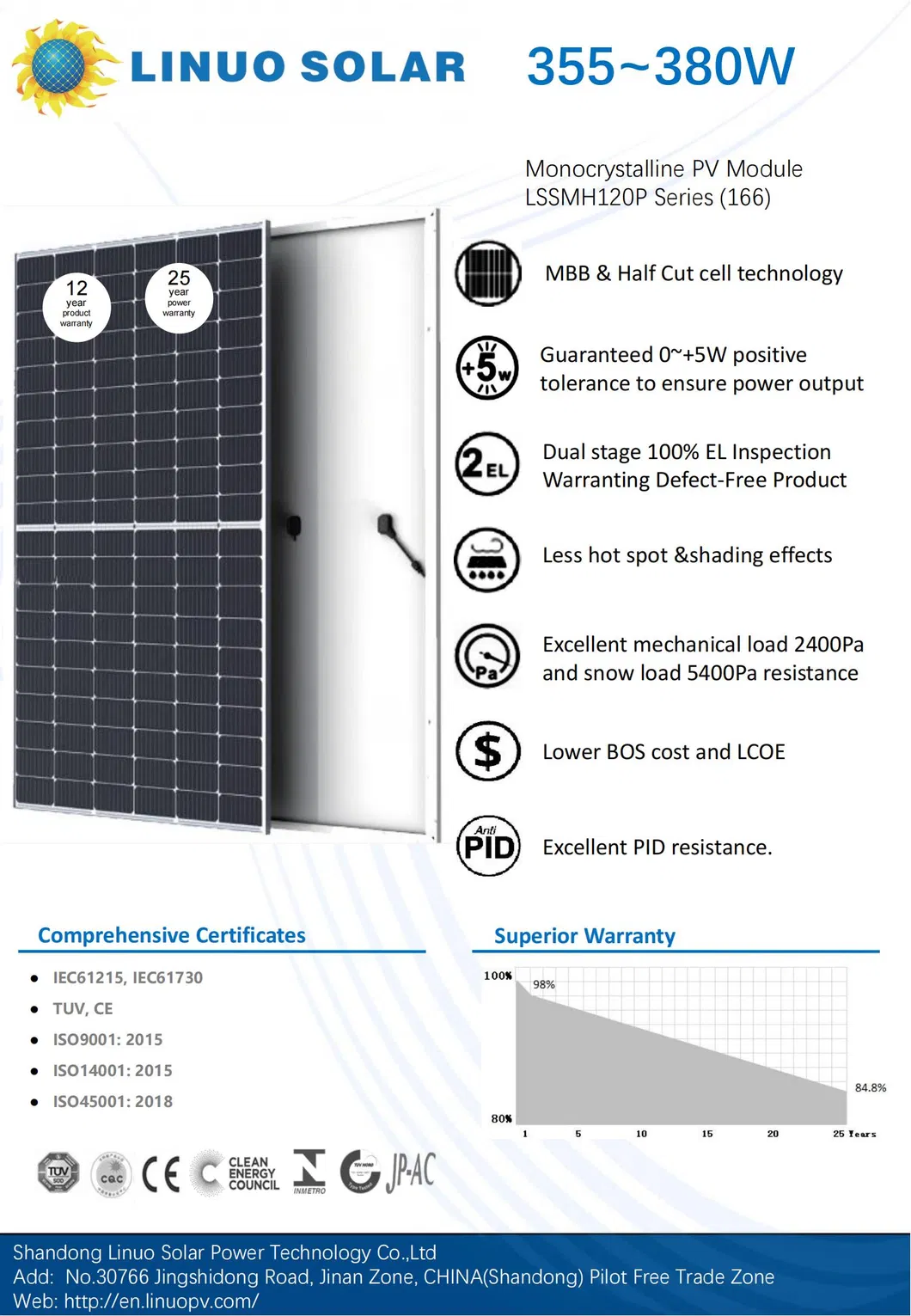

Monocrystalline PV Module LSSMH120P Series (166)

High-efficiency solar solution utilizing MBB & Half Cut cell technology for superior performance.

TechMBB & Half Cut cell technology
ToleranceGuaranteed 0~+5W positive tolerance to ensure power output
WarrantyDual stage 100% EL Inspection Warranting Defect-Free Product
EffectLess hot spot & shading effects
Load ResistanceExcellent mechanical load 2400Pa and snow load 5400Pa resistance
AdvantageLower BOS cost and LCOE; Excellent PID resistance
🖼️ Detailed Gallery
PV Module Solar Panel
⚡ Key Advantages
  • Solar Cells: Mono
  • Number of Cells: 120pcs
  • Dimension: 1755×1038×35mm
  • Weight: 20 kg
  • Snow/Wind Load: 5400/2400 Pa
  • Glass Thickness: 3.2mm
  • Junction Box: IP68, 3 Diodes
  • Connector: HTC-16, IP68
🌡️ Temperature Parameters
Cycling Range
-40ºC~+85ºC
Operating Temp
45±2 ºC
Coeff of Isc
0.048%/ºC
Coeff of Voc
-0.252 %/ºC
Coeff of Pmax
-0.332%/ºC
❓ Frequently Asked Questions
Do you offer service for installation?
Detailed installation drawings and direction information are provided for free. Technical guidance from engineers can be arranged if required.
Do you accept container loading inspection?
Yes, inspectors are welcome at any time during the production process or for the final container loading.
What quality certifications do your products hold?
Our products have gained BV and SGS authentication, ensuring high standards of quality control.
Can you arrange the shipment?
Yes, we work with permanent freight forwarders to secure the best rates and provide professional shipping services.
What is the mechanical load capacity of these panels?
These modules offer excellent resistance, certified for a mechanical wind load of 2400Pa and a snow load of 5400Pa.
What is the advantage of MBB & Half Cut technology?
This technology reduces hot spot risks and shading effects, leading to lower BOS costs and a better Levelized Cost of Energy (LCOE).
