| Model NO. | Veinasa-GZY01A |

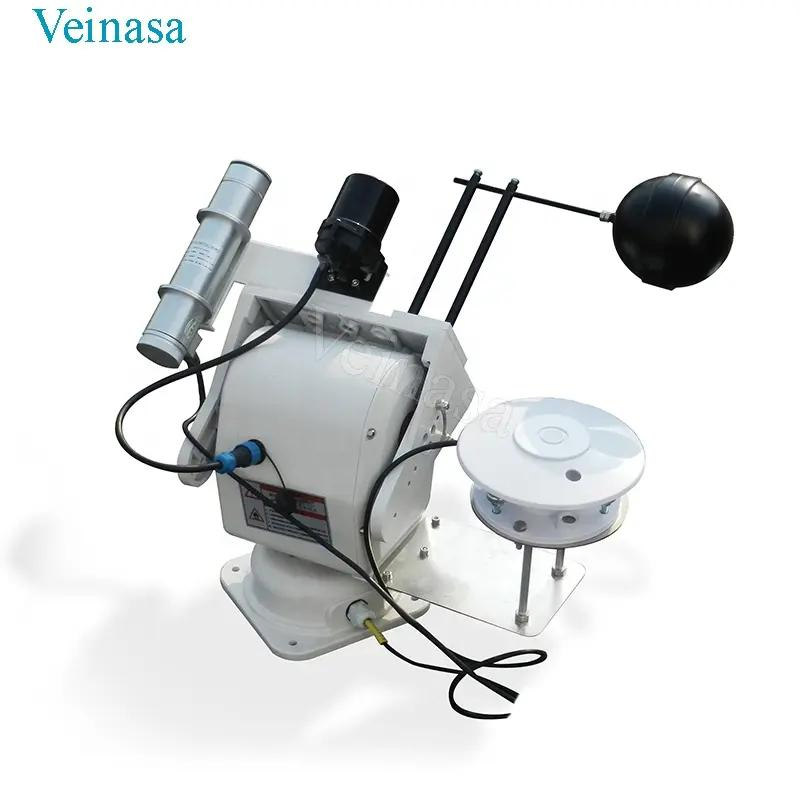

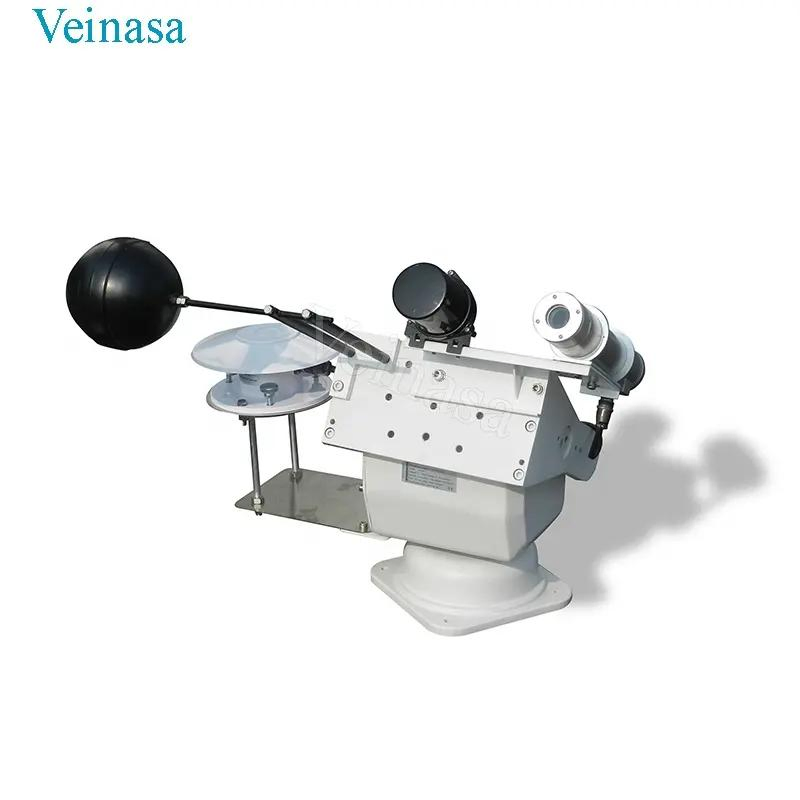

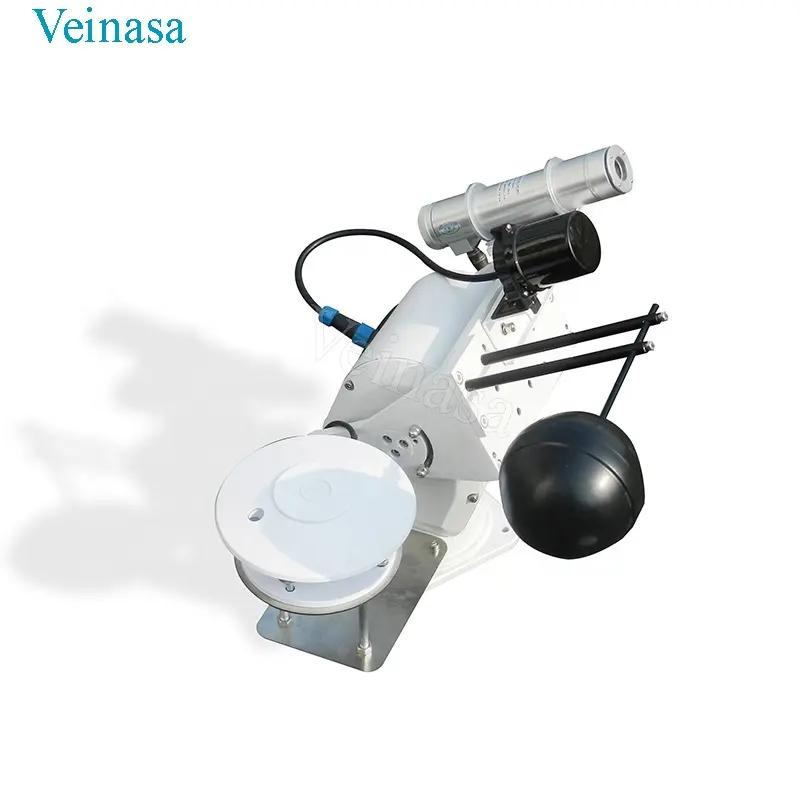

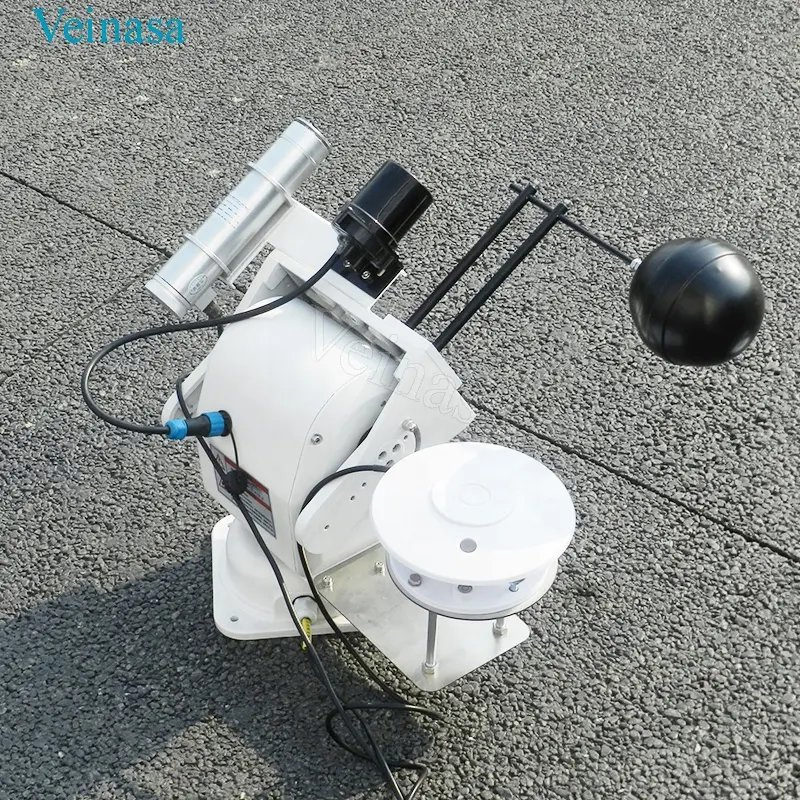

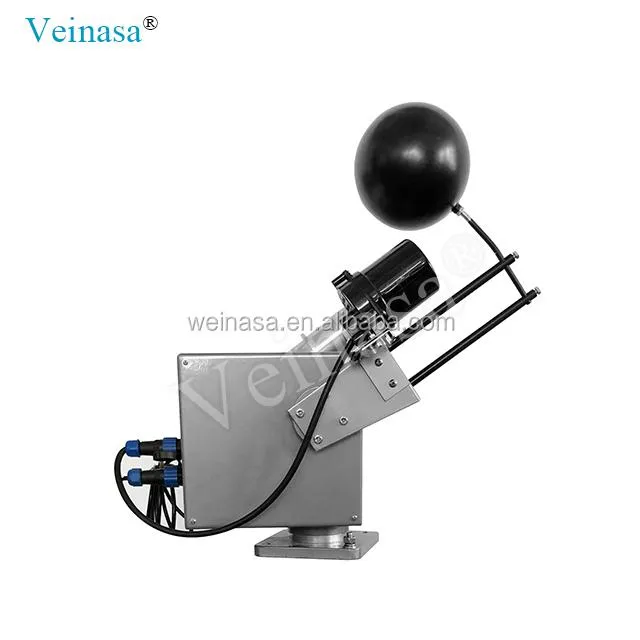

| Product Name | Solar Tracking System |
| Tracking Accuracy | 0.5 Degree |
| Power Consumption | 50MW |
| Working Temperature | -40°C to 50°C |
| Power Supply | 12V |
| Spectral Range | 300~3000nm |
| Measuring Range | 0~2000W/M2 |
| Sensitivity | 7~14μ V/W.M-2 |
| Output Signal | 0 ~ 20mv (with Dl-2 Standard Current) |
| Function | Solar Radiation Detection |
| Origin | China |
This system can be used as a primary standard direct radiation meter, suitable for all kinds of harsh environments. It features fast response and accurate automatic tracking. The tracking modes include sensor tracking and sun tracking. Sensor tracking mode utilizes real-time sampling by a photoelectric converter, computer analysis, and comparison of changes in solar light intensity to drive the mechanical mechanism. It conforms to international standards of ISO9060 for solar energy and hemispherical solar radiation meters.
| Automatic Tracking Parameters | |
| Tracking Accuracy | 0.5 degree |
| Load Capacity | 10kg |
| Power Supply | DC12V |
| Direct Radiation Table Indicators | |
| Spectral Range | 300~3000nm |
| Time Constant | Less than 15S (99%) |
| Open Angle | 4 degrees |
| Annual Stability | ± 1% |
| Measurement Accuracy | Worksheet < 5%; Standard table < 2% |
Installation Specifications:
Installation hole spacing: 95*95 mm
Installation aperture diameter: φ 8.5 mm
| Package Size | 70.00cm * 80.00cm * 80.00cm |
| Package Gross Weight | 20.000kg |
| Package Type | Covered with Cartoon Package |
