| Model No. | GZY01A |
| Certification | CE |
| Application | Industrial Solar Systems |
| Specification | Normal |
| Origin | China |
| Production Capacity | 1000 pieces/Year |

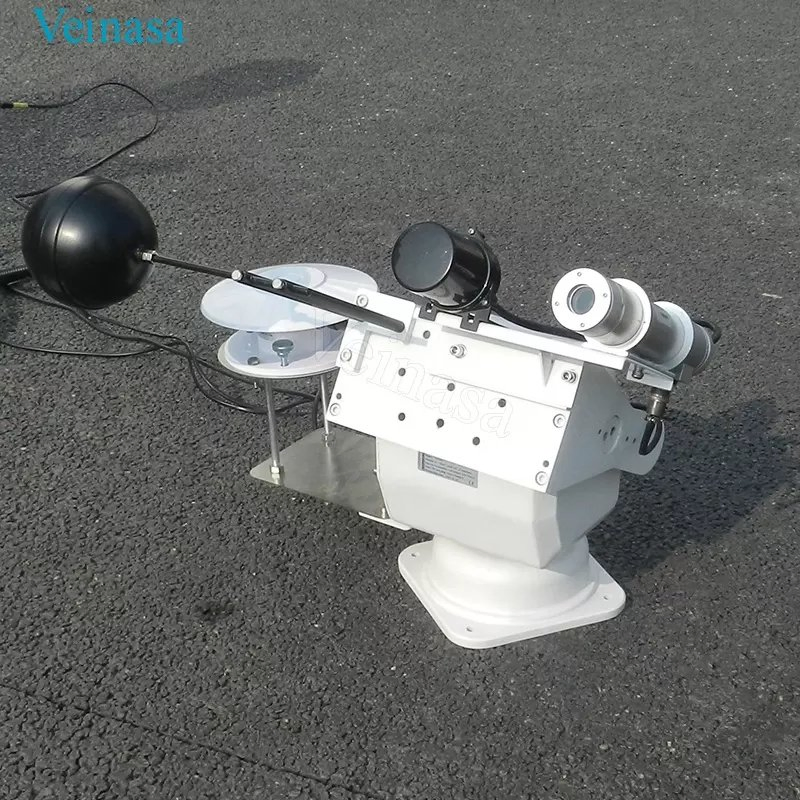

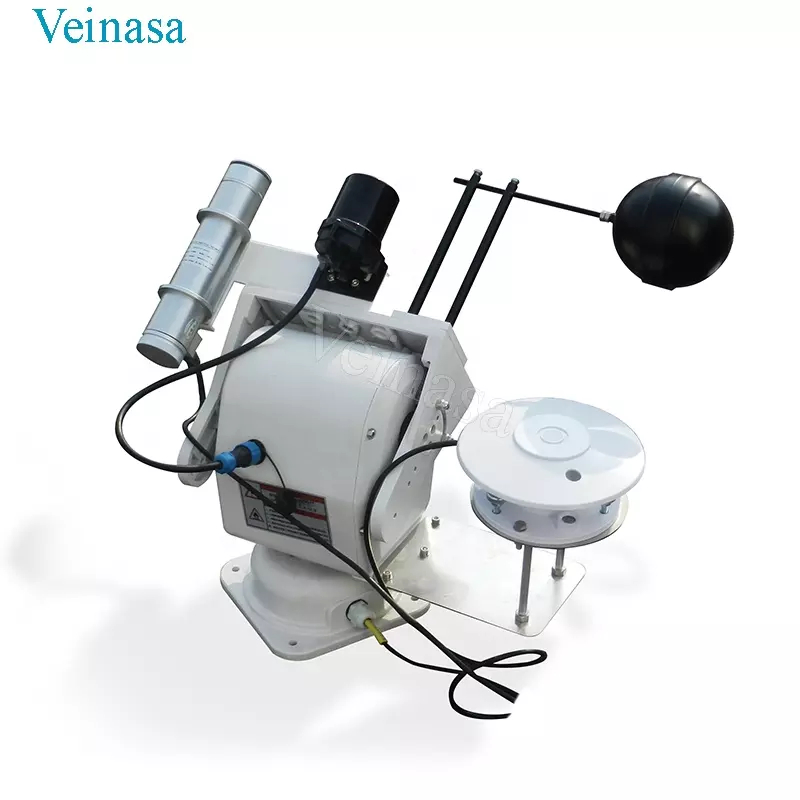

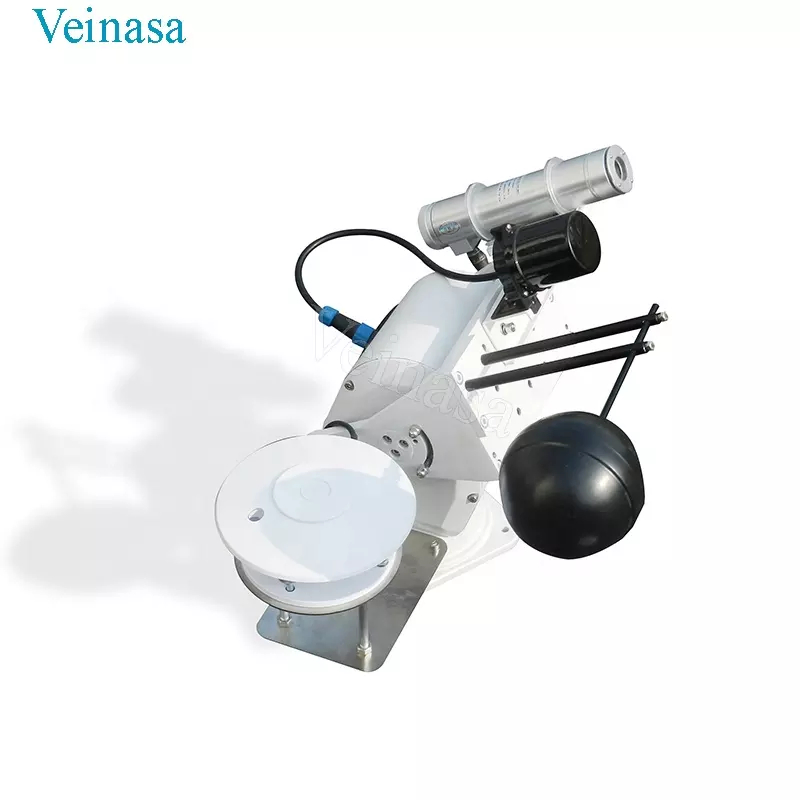

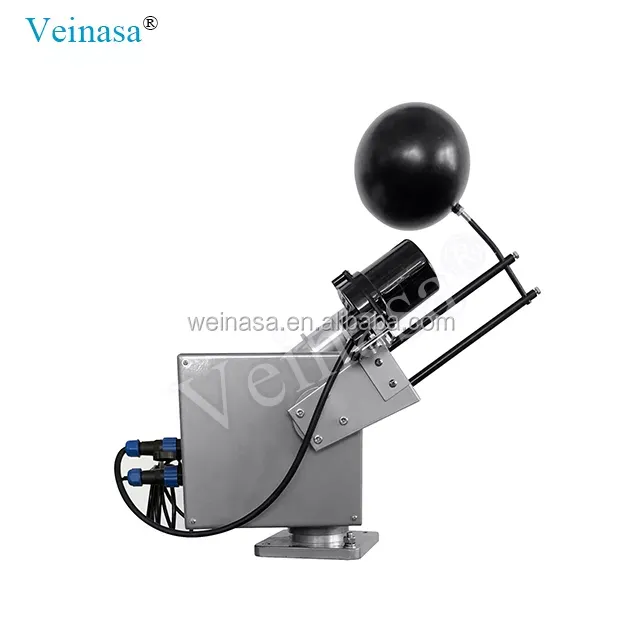

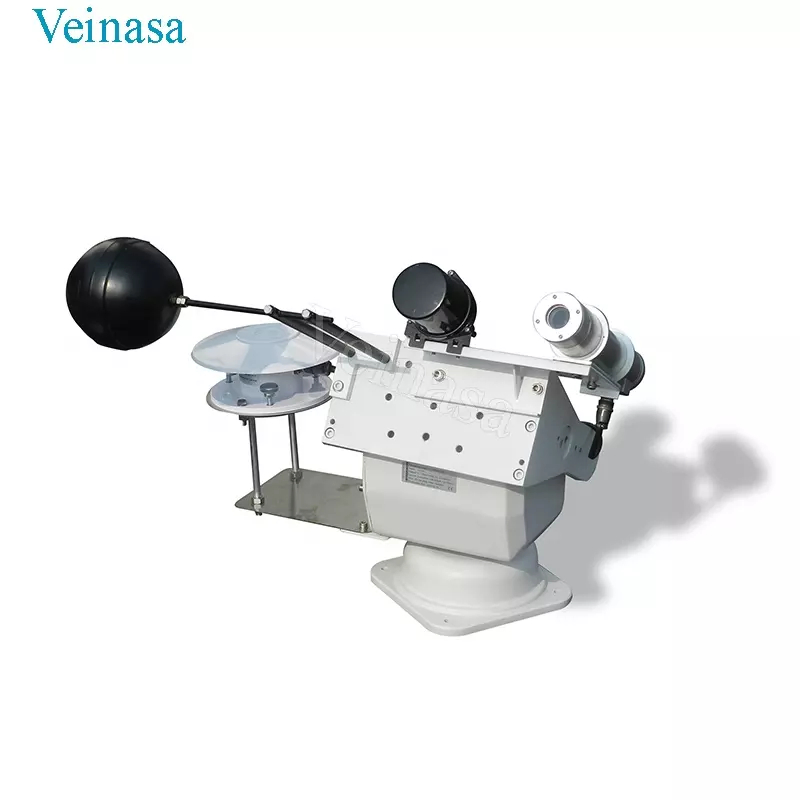

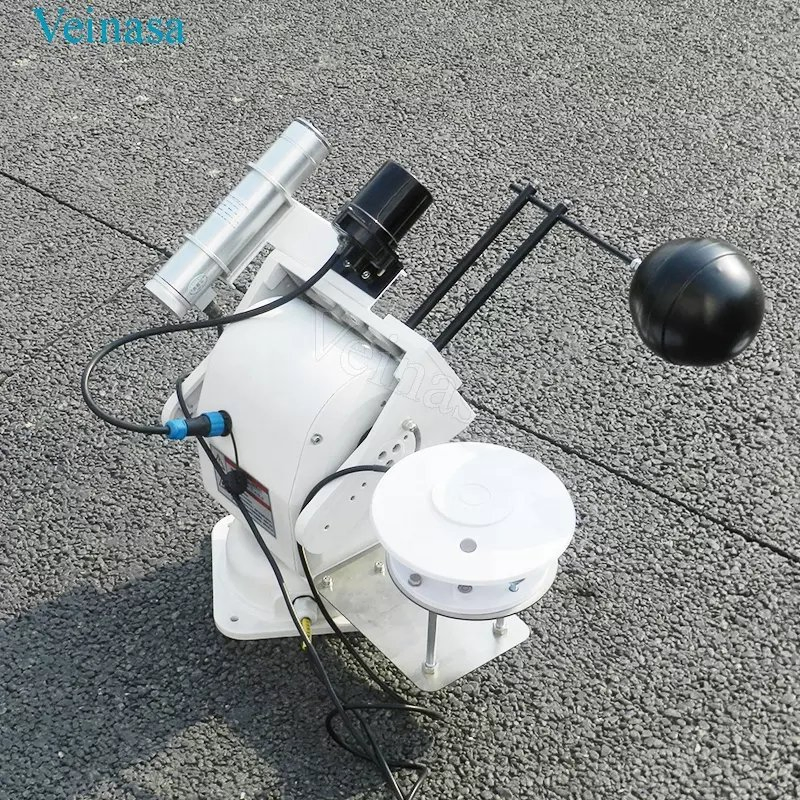

The GZY01A Solar Power Irradiance Meter is designed for roof photovoltaic mounting and sun tracking systems. It serves as a primary standard direct radiation meter, suitable for harsh environments with fast response and accurate automatic tracking. The system utilizes both sensor tracking and sun tracking modes for real-time sampling and comparison of solar light intensity.
Conforming to international ISO9060 standards, this direct radiometer measures radiation perpendicular to the sun's surface, making it an essential tool for high-precision solar energy monitoring.
Tracking Parameters:
| Tracking Accuracy | 0.5 degree |
| Load Capacity | 10kg |
| Working Temperature | -40°C to +50°C |
| Power Supply | DC12V |
Radiation Measurement Indicators:
| Spectral Range | 300 ~ 3000nm |
| Measuring Range | 0 ~ 2000W/m² |
| Sensitivity | 7 ~ 14μV/W.m-2 |
| Time Constant | < 15S (99%) |
| Annual Stability | ± 1% |
| Output Signal | 0 ~ 20mV (Optional 4-20mA) |
| Internal Resistance | ~ 80 ohms |
