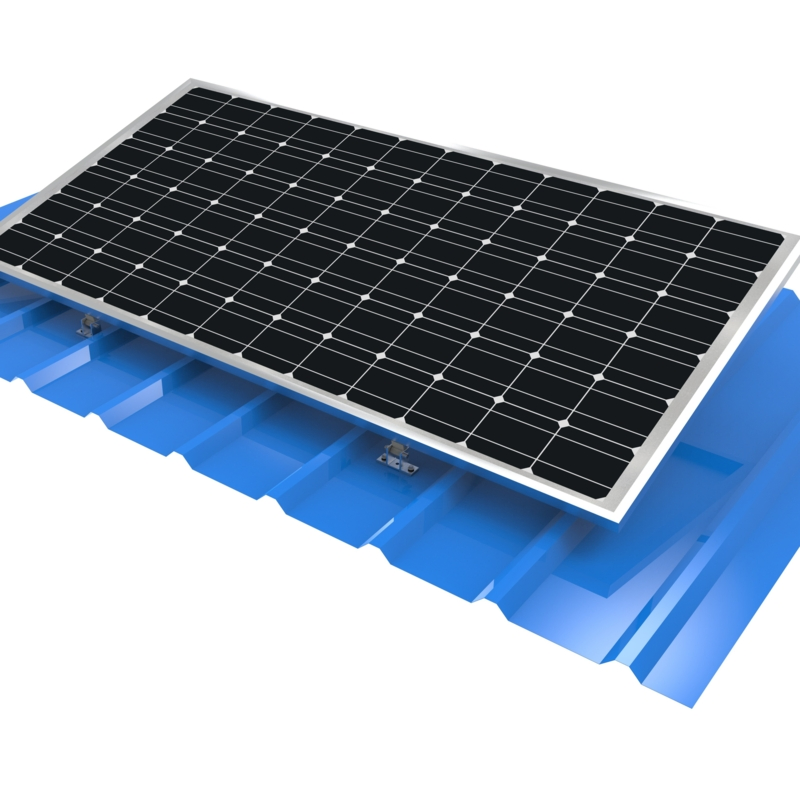

Wholesale High Load Rooftop Solar Bracket Mounting Kits Adjustable Rear Leg
Wholesale High Load Rooftop Solar Bracket Mounting Kits Adjustable Rear Leg
Wholesale High Load Rooftop Solar Bracket Mounting Kits Adjustable Rear Leg
Wholesale High Load Rooftop Solar Bracket Mounting Kits Adjustable Rear Leg
Wholesale High Load Rooftop Solar Bracket Mounting Kits Adjustable Rear Leg
1 / 5
Wholesale High Load Rooftop Solar Bracket Mounting Kits Adjustable Rear Leg
Wholesale High Load Rooftop Solar Bracket Mounting Kits Adjustable Rear Leg
Wholesale High Load Rooftop Solar Bracket Mounting Kits Adjustable Rear Leg
Wholesale High Load Rooftop Solar Bracket Mounting Kits Adjustable Rear Leg
Wholesale High Load Rooftop Solar Bracket Mounting Kits Adjustable Rear Leg

Wholesale High Load Rooftop Solar Bracket Mounting Kits Adjustable Rear Leg

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋
Basic Product Information
Model NO.
LS-ADJ-LEG
Certification
ISO, CE
Application
Industrial
Material
Aluminum Alloy
Type
Roof Angle Bracket
Surface
Anodized
Adjustable Angle
10-15° ; 15-30° ; 30-60°
Color
Silver
Feature
Quick Installation
Installation Site
Metal Rooftop
🚀
Product Introduction
Solar Bracket Overview

Adjustable angle solar PV mounting structure: The adjustable front/rear leg is designed for PV modules on Metal Roof Mounting Systems. The classic adjustable range is 10-15 degrees or 15-30 degrees. Made from high-quality AL6005-T5, this system is engineered for simplicity and ease of assembly, suitable for most trapezoidal metal roof solar panel installations.

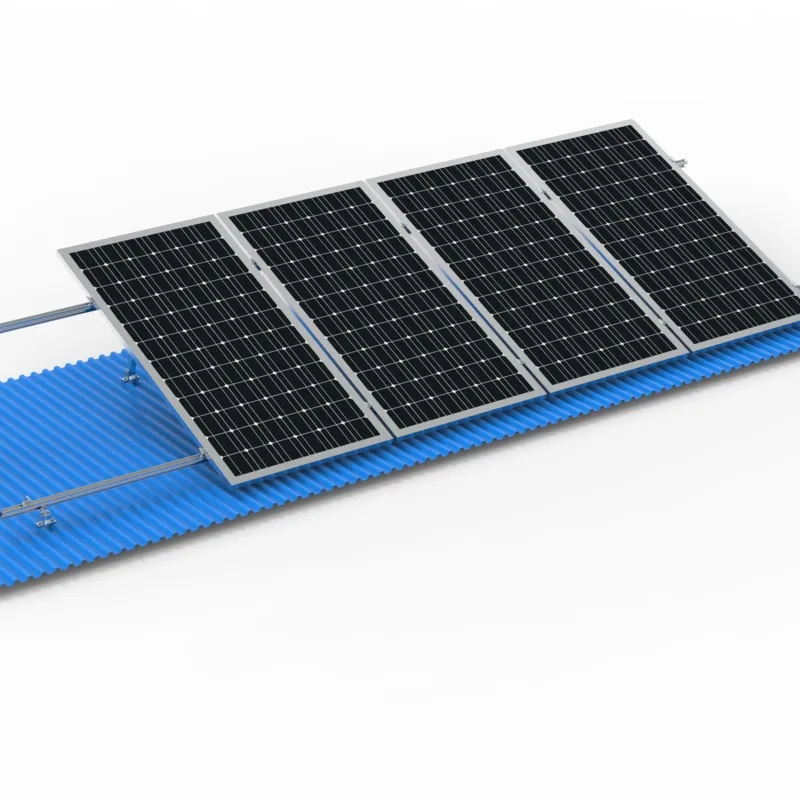

Solar Mounting Bracket

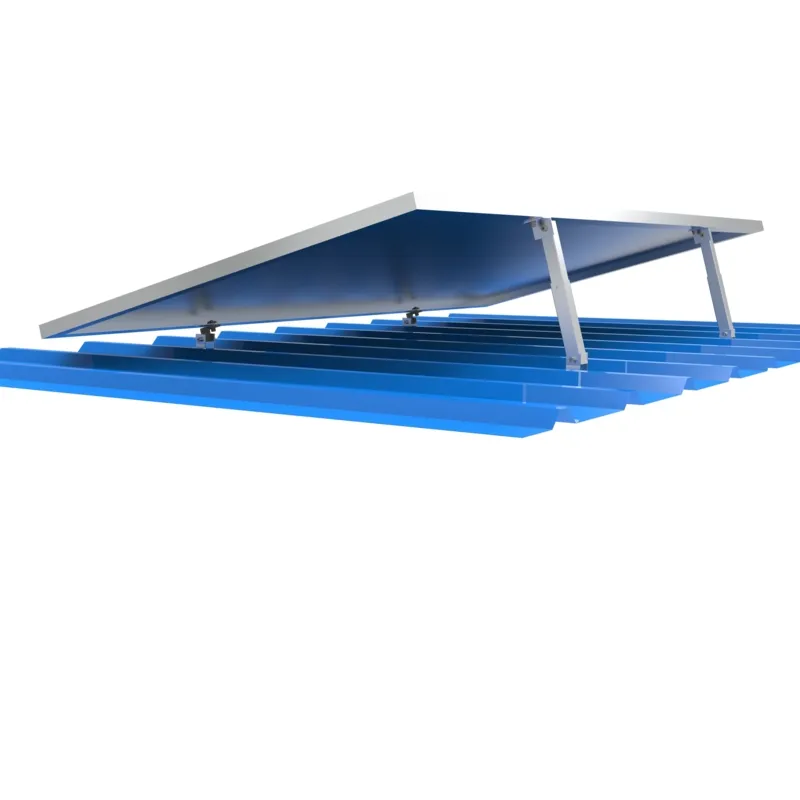

Adjustable Leg Details
🛠️
Installation Steps
1
Attach the rear leg and front leg to the roof using self-drilling screws.
2
Confirm the required tilt angle and securely fasten the hexagon bolt on the adjustable rear leg.
3
Install the solar rail (R50 rail) to the front and rear legs.
4
Fix the solar panels to the adjustable structure using solar end clamps and middle clamps.

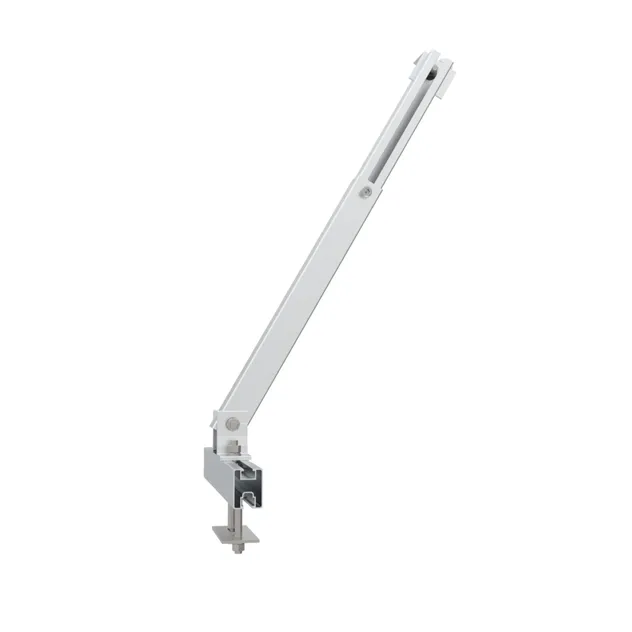

Installation Step 1

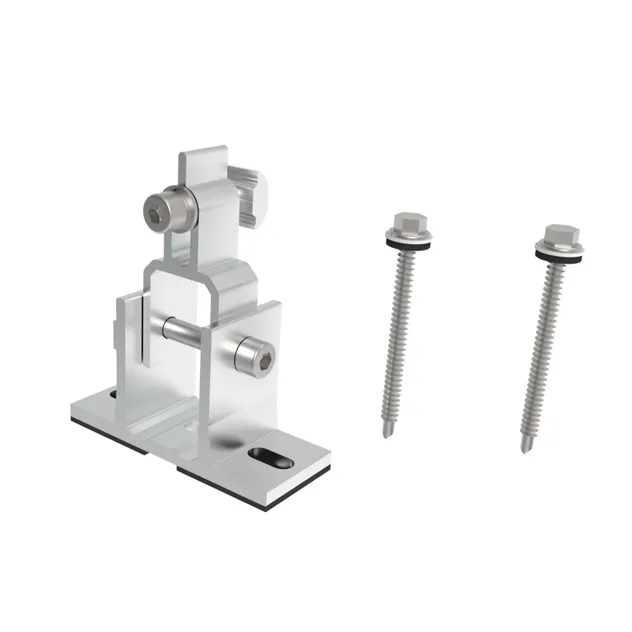

Installation Step 2

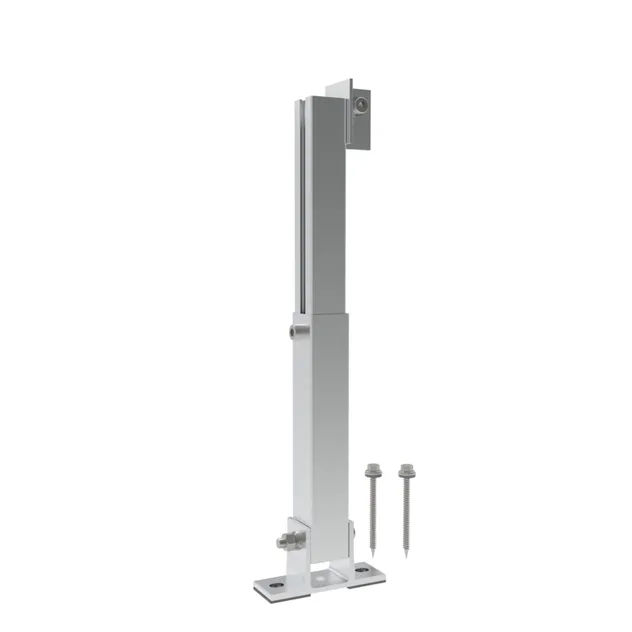

Installation Step 3
📊
Technical Specifications
Product MaterialHigh strength extrusion Aluminum 6005-T5 + SS304 bolt
Installation SiteSolar Mounting Rail, roof rail, ground rail
Wind SpeedUp to 60m/s
Snow LoadUp to 1.5KN/m2
Warranty10 years for material
StandardsAS/NZS 1170, JISC8955, Euro Code 8, DIN 1055, IBC 2006
Service Life25 years
🏢
Manufacturing & Service
Our company is a high-tech enterprise in the renewable energy industry providing leading technology and efficient service. We specialize in the R&D, production, and sales of solar PV mounting systems with independent intellectual property rights. Our mission is to empower the global PV market with effective and efficient products.
Facility Image 1

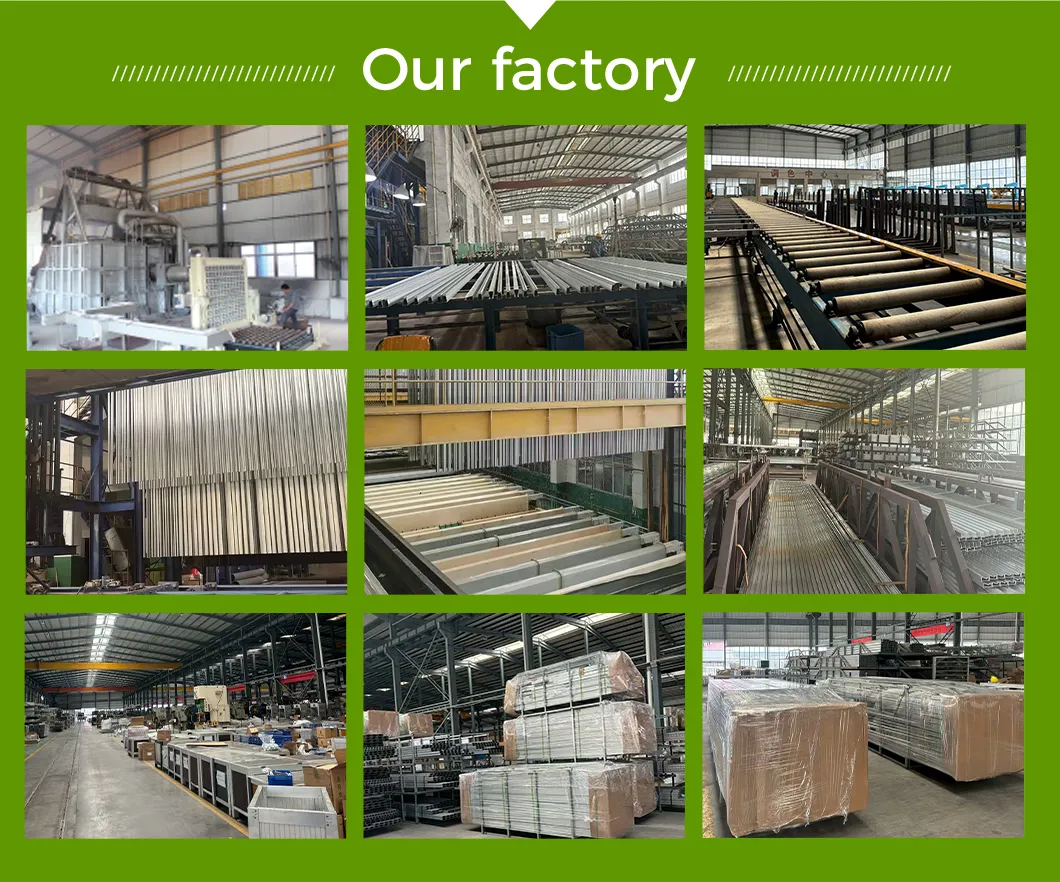

Facility Image 2
Certificate 1
Certificate 2
Exhibition
📦
Packaging & Logistics
Package Size
54.00cm * 38.00cm * 25.00cm
Gross Weight
16.000kg
Lead Time
3 days (1-1000 Sets); >1000 Sets (Negotiated)
Packaging details
Frequently Asked Questions
Where is your factory located?
Our manufacturing facility is located in a specialized industrial zone in China, optimized for global shipping.
Can I request a sample order?
Yes, we welcome sample testing. For standard roof mounting components, we offer free samples for quality evaluation.
What is the typical production lead time?
Standard products usually take 7 to 10 days. Custom or new designs require engineering review and may take longer.
Do you have a Minimum Order Quantity (MOQ)?
We have no MOQ for standard components. For OEM/Custom designs, the MOQ is discussed during the mold design phase.
How do I place an order?
Please provide your project requirements (roof type, ground, or carport). Our team will provide professional suggestions, designs, and a formal quotation.
What are the durability standards of the material?
We use AL-6005-T5 aluminum which provides high strength and 25 years of service life, meeting major international building codes.
