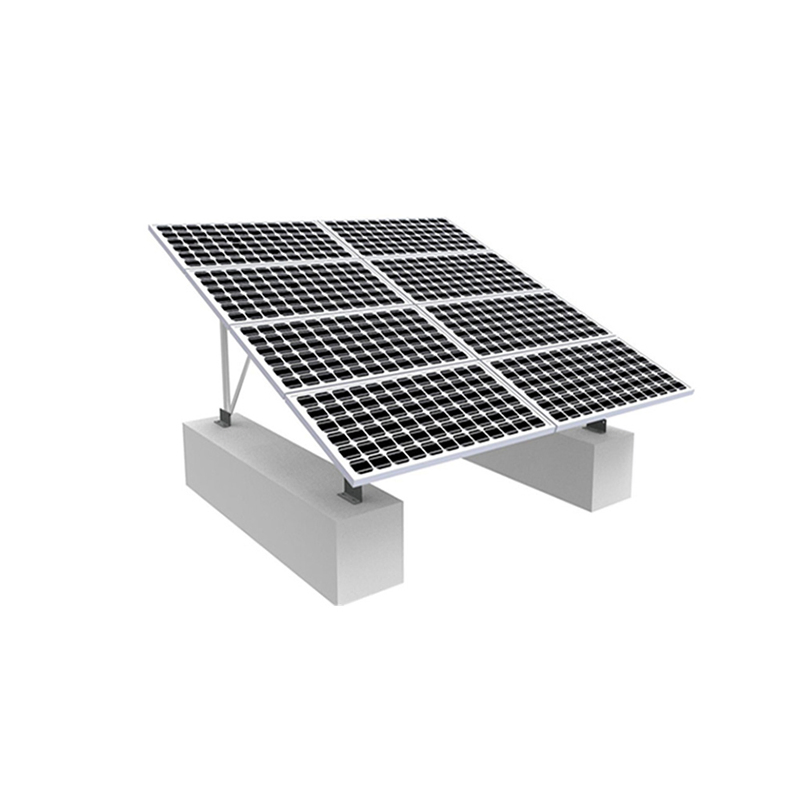

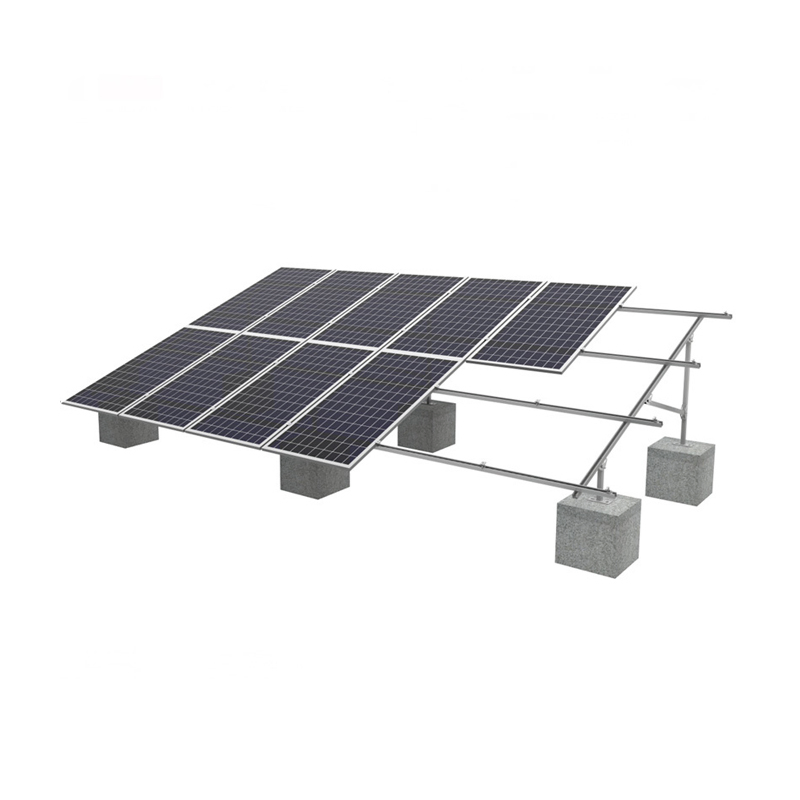

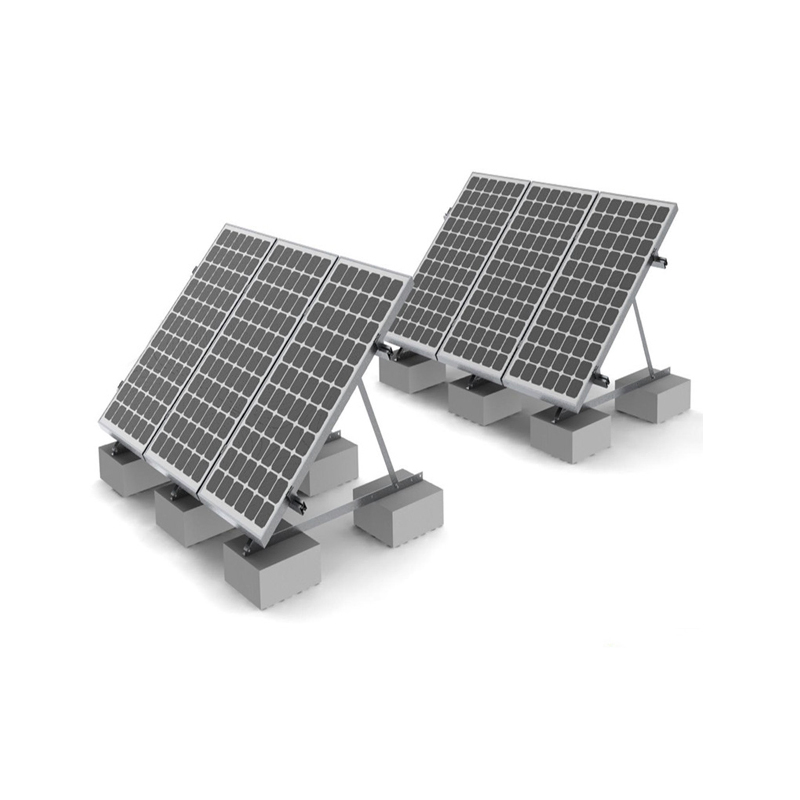

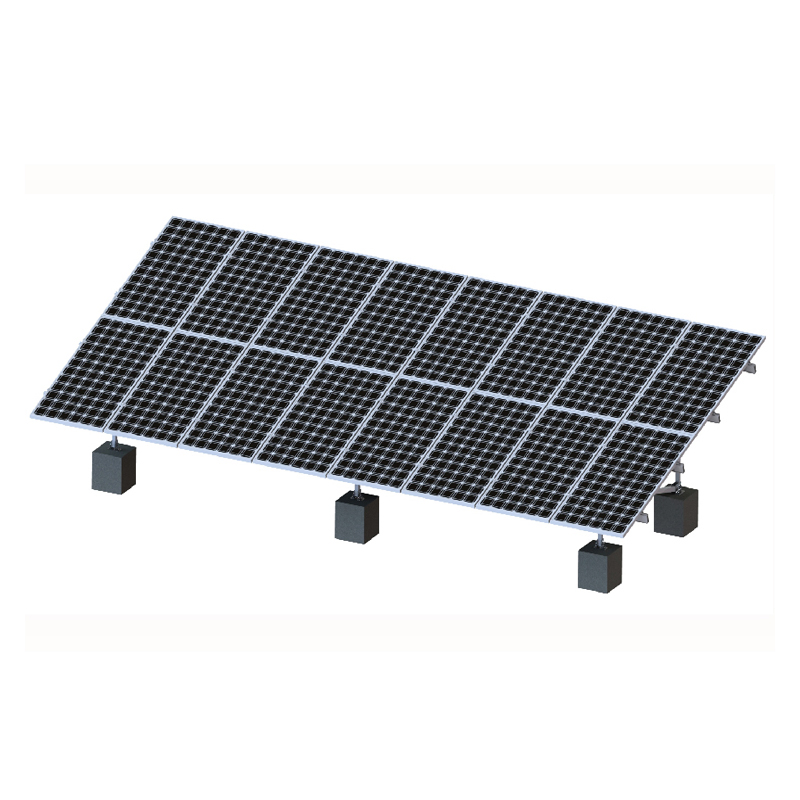

Wholesale Concrete Solar Aluminium Ground Panel Solar Mounting System

Basic Information

Model NO.

SF-M03

Certification

ISO, TUV, CE

Application

Commercial

Material

Concrete

Type

Ground Bracket

Product Name

Solar Panel Ground Mounting Structure

Installation Site

Open Field

Color

Silver

Tilt Angle

0-45deg

Feature

Quick Installation

Surface Treatment

Aluminum Anodized

Production Capacity

300,000,000 Sets Per Month

Product Description

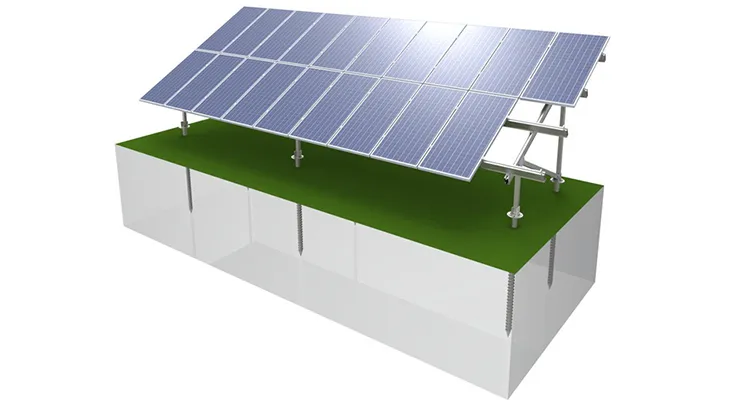

Solar Ground Mounting

The Ground Screw Mounting Structure is widely applied for large solar farms, with fixed ground screw foundations or adjustable screw piles. The unique oblique spiral design greatly ensures stability when withstanding static loads.

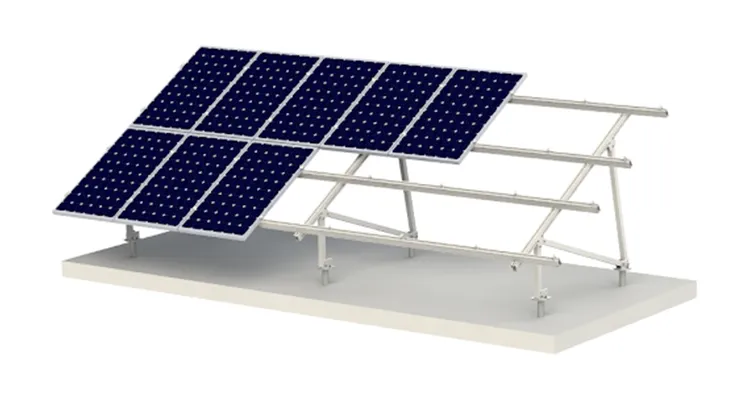

⭐ Advantages:

Anti-corrosion and anti-rust.
Ensures simple and fast installation.
Reduces labor costs significantly.

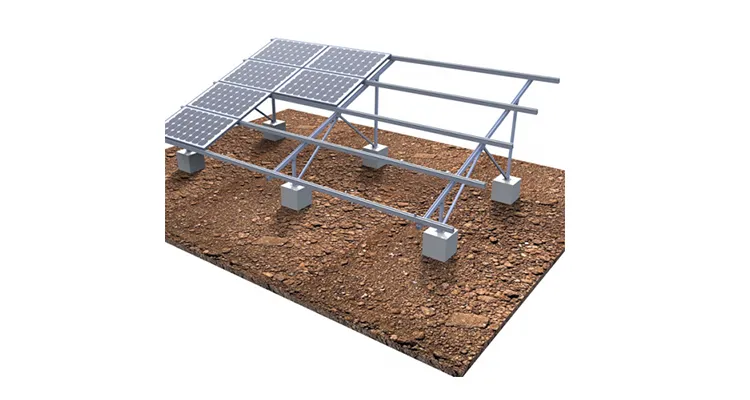

⚙️ Technical Data:

Installation site: Open field ground mount
Foundation: Ground screw & Concrete
Mount tilt angle: 0-45 Degree
Main components: AL6005-T5
Accessories: Stainless steel fastening
Duration: More than 25 years

Technical Details

Installation Site	Open field
Wind Load	Up to 60m/s
Snow Load	1.4kn/m2
Tile Angle	0-45 deg
Standards	AS/NZS1170, JIS C8955:2017, GB50009-2012, DIN 1055, IBC 2006
Material	Anodized AL6005-T5, HDG steel Q235B, SUS304
Warranty	10 Years Warranty and 25 Years Service Life

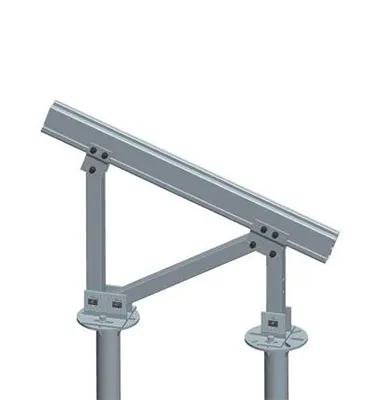

Screw Piles

• High traction and pressure values
• Installation by mini-digger machine with rotating head support

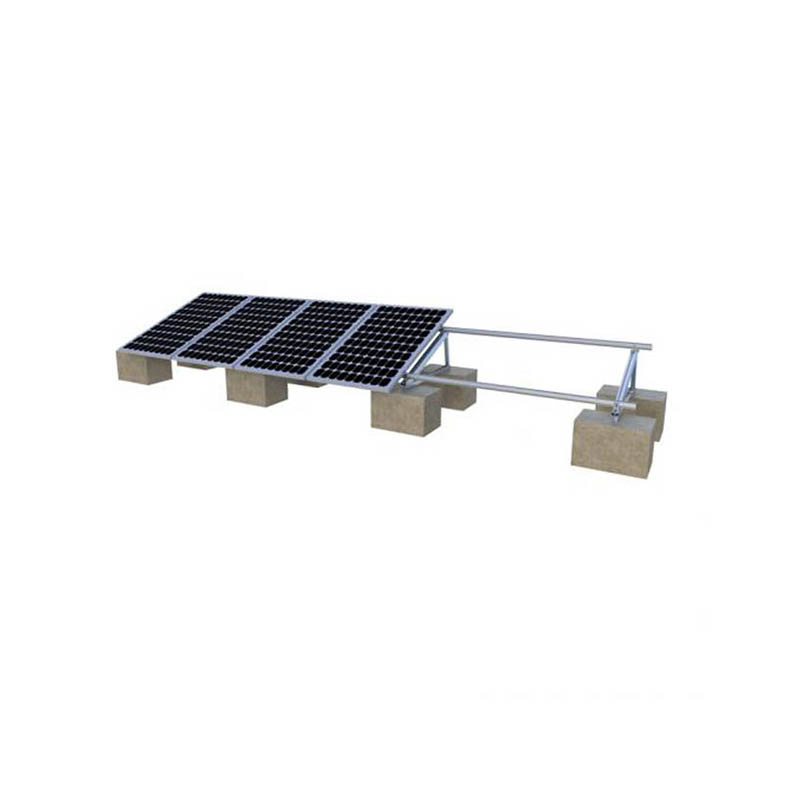

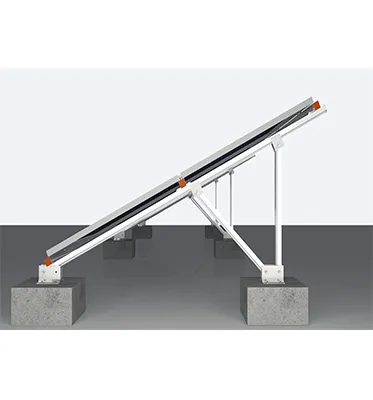

Concrete Base

• Best suited where ground excavation is not permitted
• The size is adjusted based on the static requirements and location.

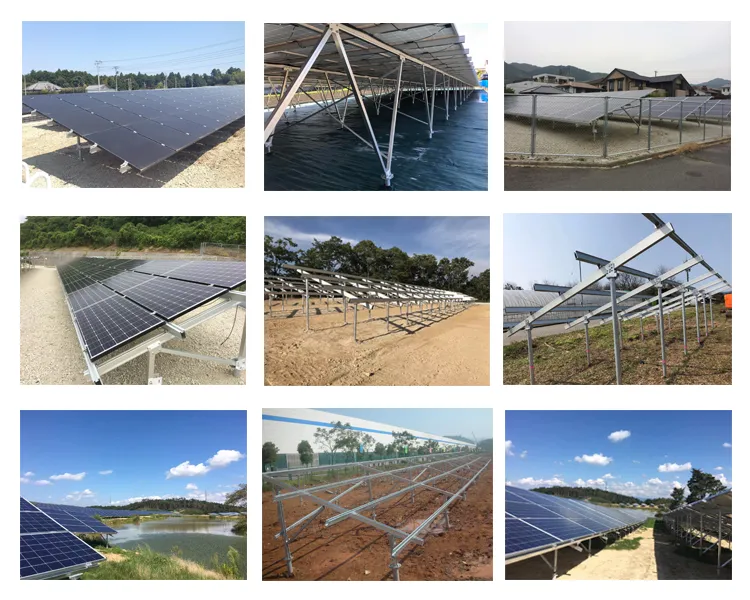

Project Showcase

Packaging & Shipping

Exhibition & Certifications

Frequently Asked Questions

What is the expected service life of this mounting system?

The system is designed for a service life of more than 25 years, supported by a 10-year warranty.

What materials are used for the main components?

The main components are made of high-quality Anodized Aluminum AL6005-T5 and Stainless Steel SUS304 for superior corrosion resistance.

Can this system withstand high wind and snow loads?

Yes, it is engineered to withstand wind loads up to 60m/s and snow loads up to 1.4kn/m2.

Is the tilt angle adjustable?

The system supports a tilt angle range of 0 to 45 degrees to optimize solar exposure based on your location.

What types of foundations can be used for installation?

The structure is compatible with both ground screw foundations and concrete bases, depending on the soil conditions and project requirements.

How does the system reduce installation time?

The components are designed for quick assembly with pre-engineered parts, which significantly reduces on-site labor and installation costs.
