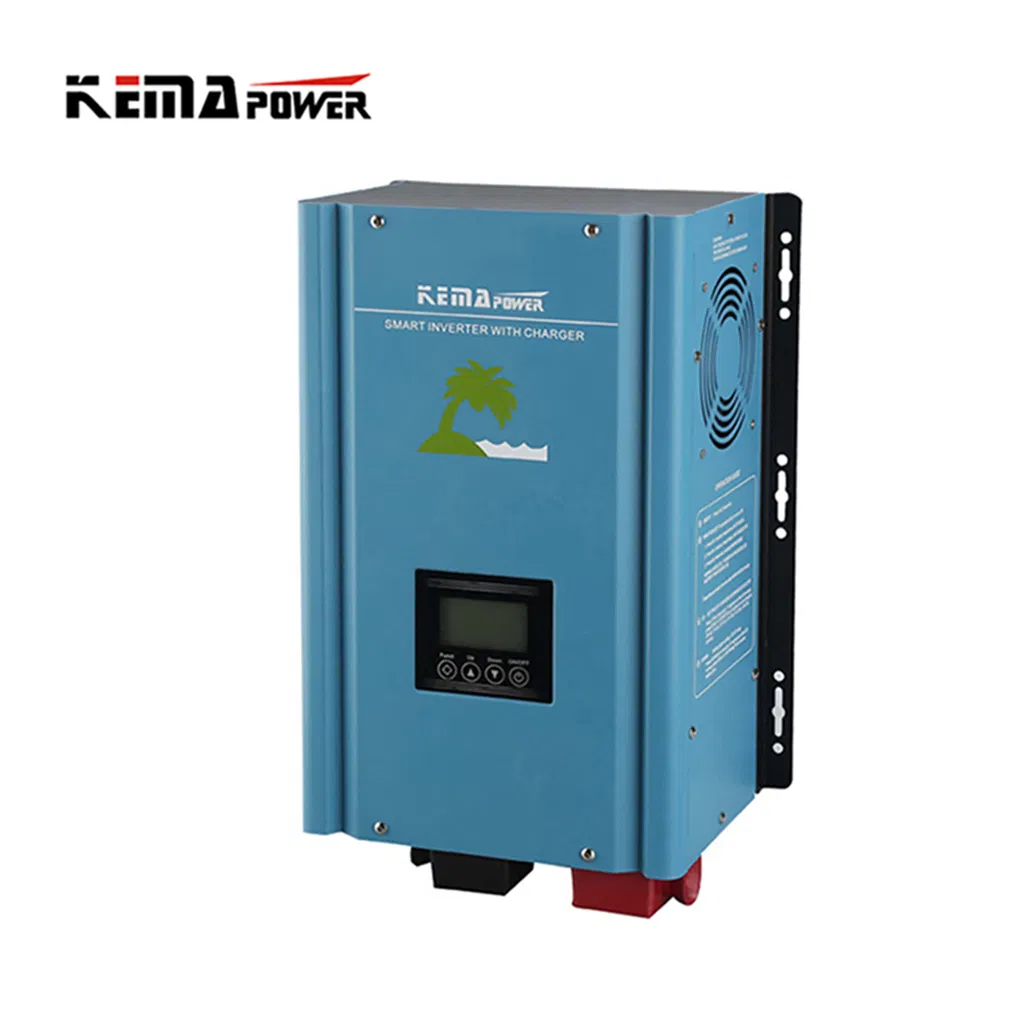

Sine Wave Power Inverter With Charger
GPSW-II 1-6KW Series
📋 Basic Information
Nature of Flow
Active Inverter
Wave String
Sine Wave Inverter
Efficiency
>95% (AC), >88% (DC)
🚀 Key Features
- Low Frequency Power Inverter with charger 1-6KW
- 2 in 1 Off Grid hybrid design (Inverter + Charger)
- Selectable Grid/Solar priority or Power Saver Modes
- Ideal for backup HOME UPS or Off-grid solar systems
- Low frequency toroidal transformer, Pure sine wave with AVR

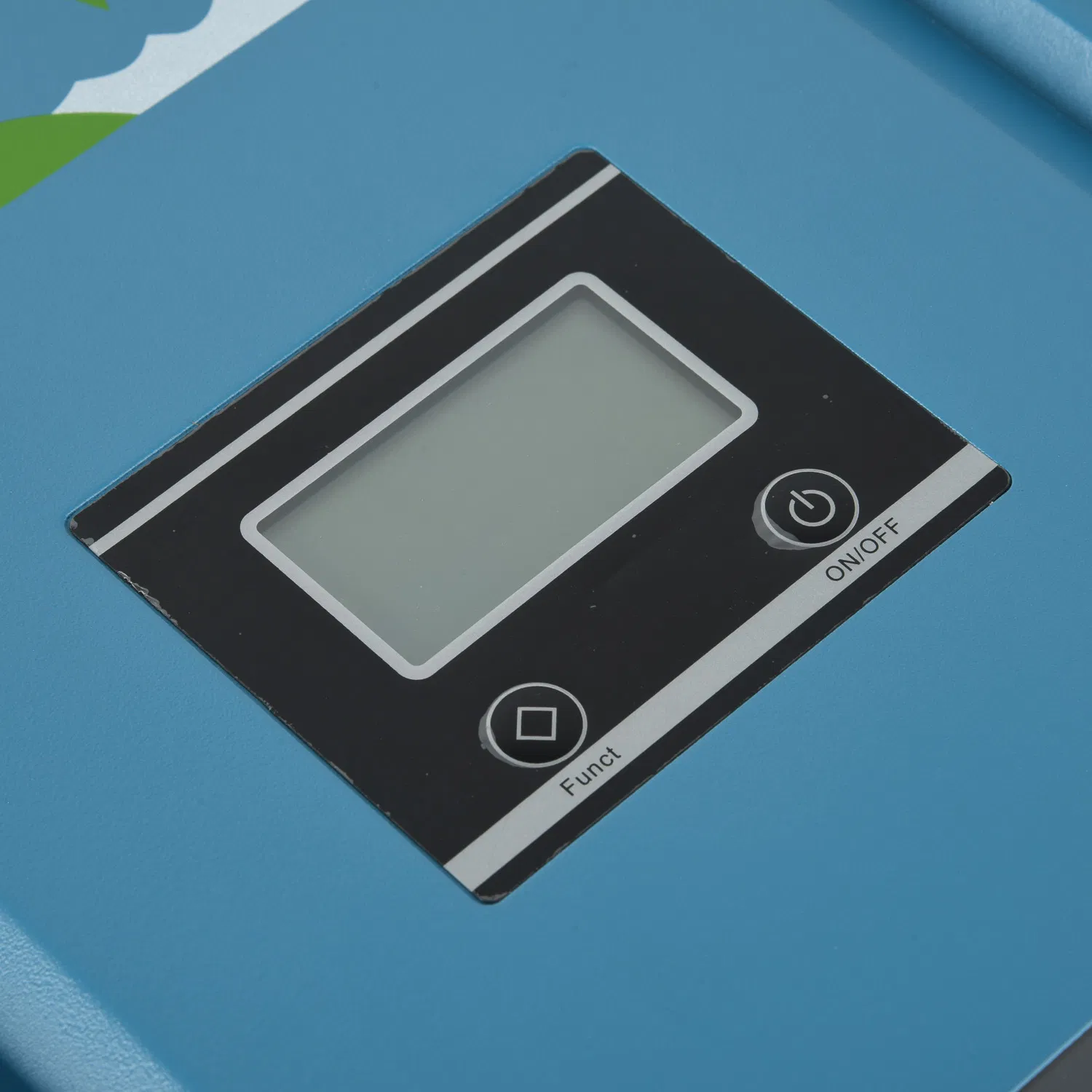

- Smart LCD display for simple operation and setup
- Automatic Transfer Time less than 10ms
- Max 30A Adjustable Charge Current
- Comprehensive protection: Overload, Short-circuit, Low Battery
- Smart fan cooling and Alarm system
- RS232 / SNMP communication optional

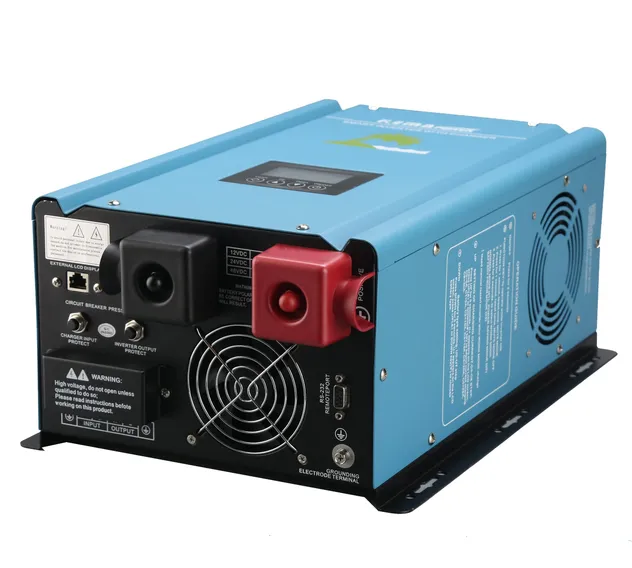

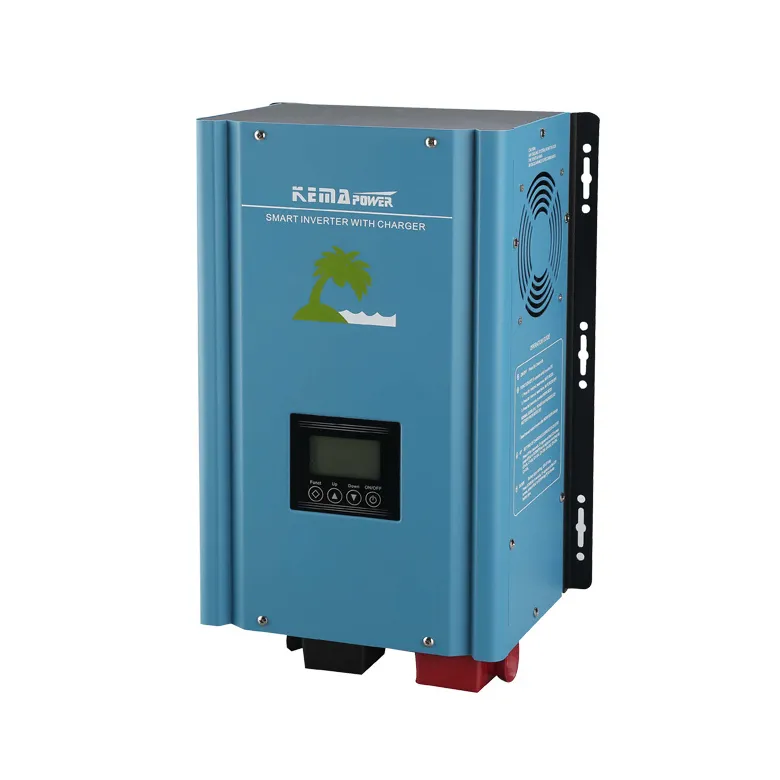

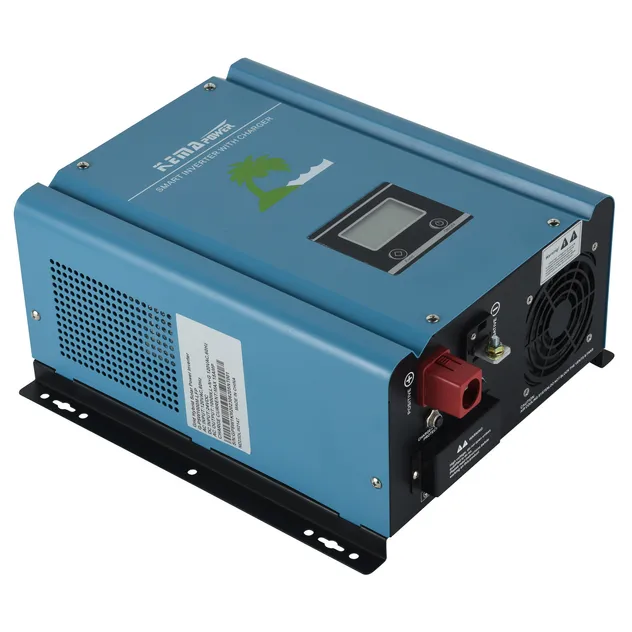

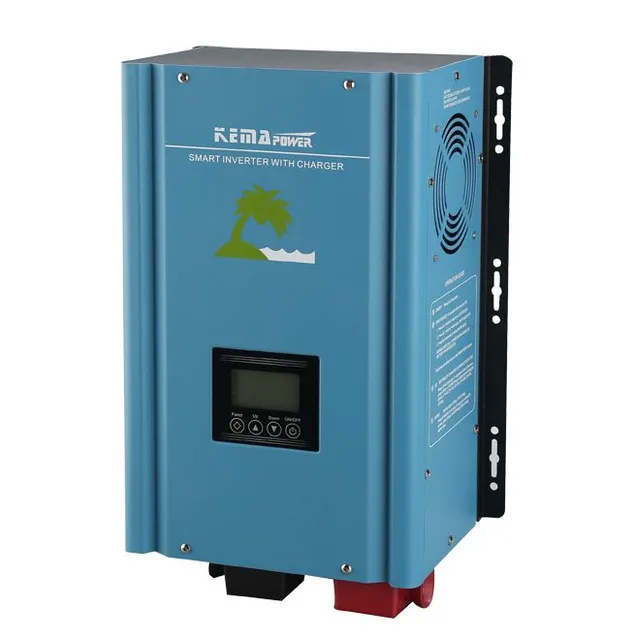

🖼️ Product Display
📊 Technical Specifications
| ITEM |
Model |
1KW |
1.5KW |
2KW |
3KW |
4KW |
5KW |
6KW |
| Power (W) |
1000W |
1500W |
2000W |
3000W |
4000W |
5000W |
6000W |
| >95% under AC mode, >88% under DC mode, Toroidal transformer |
| Rated Voltage |
12/24/48VDC |
24/48VDC |
24/48VDC |
48/96VDC |
| Voltage Range |
85-138VAC / 170-275VAC |
170-275VAC |
| Wave Form |
Pure Sine Wave |
| Time |
Less than 10 ms (typical) |

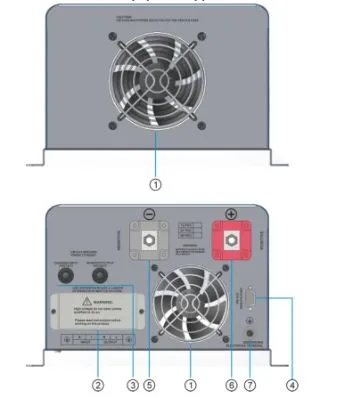

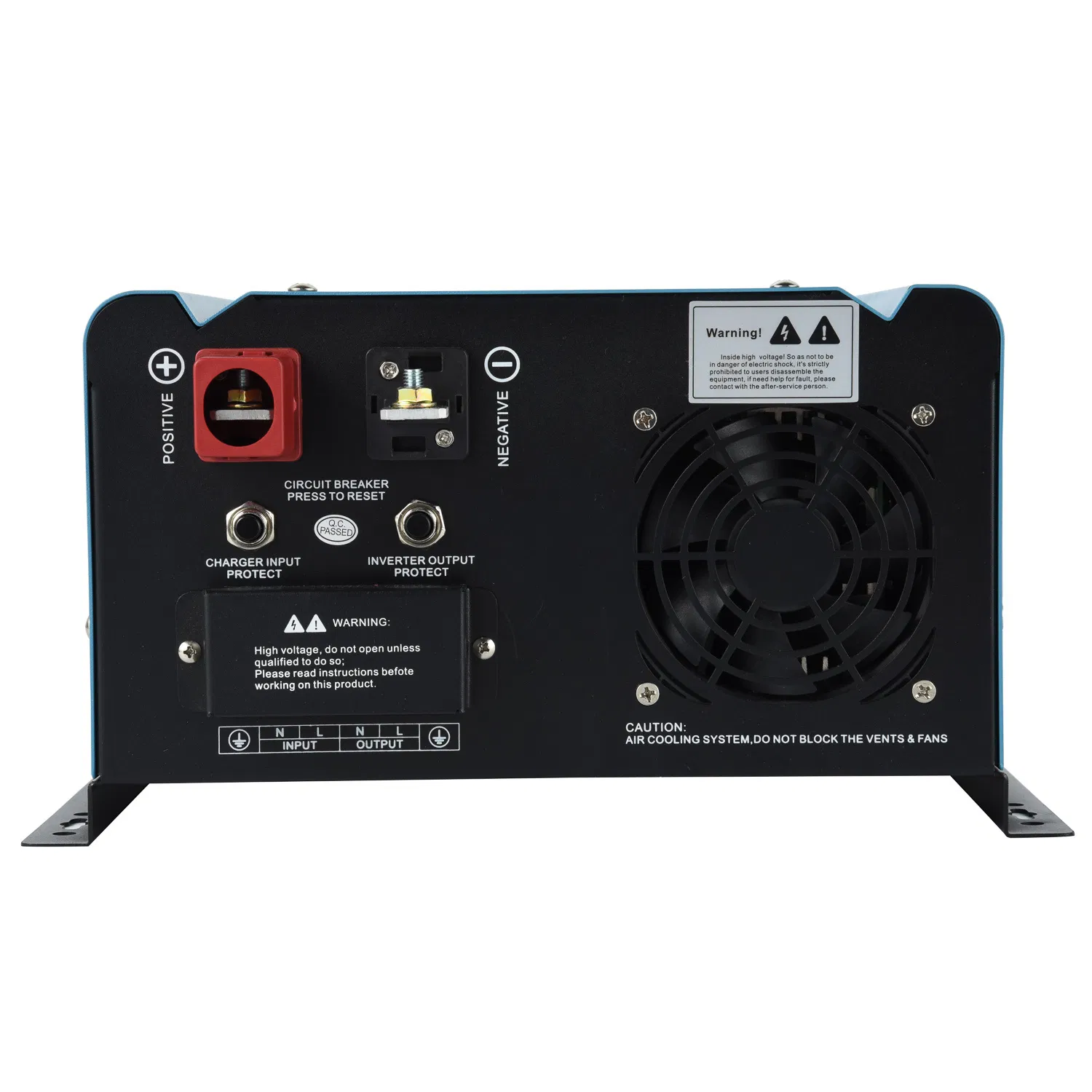

Interface Guide:

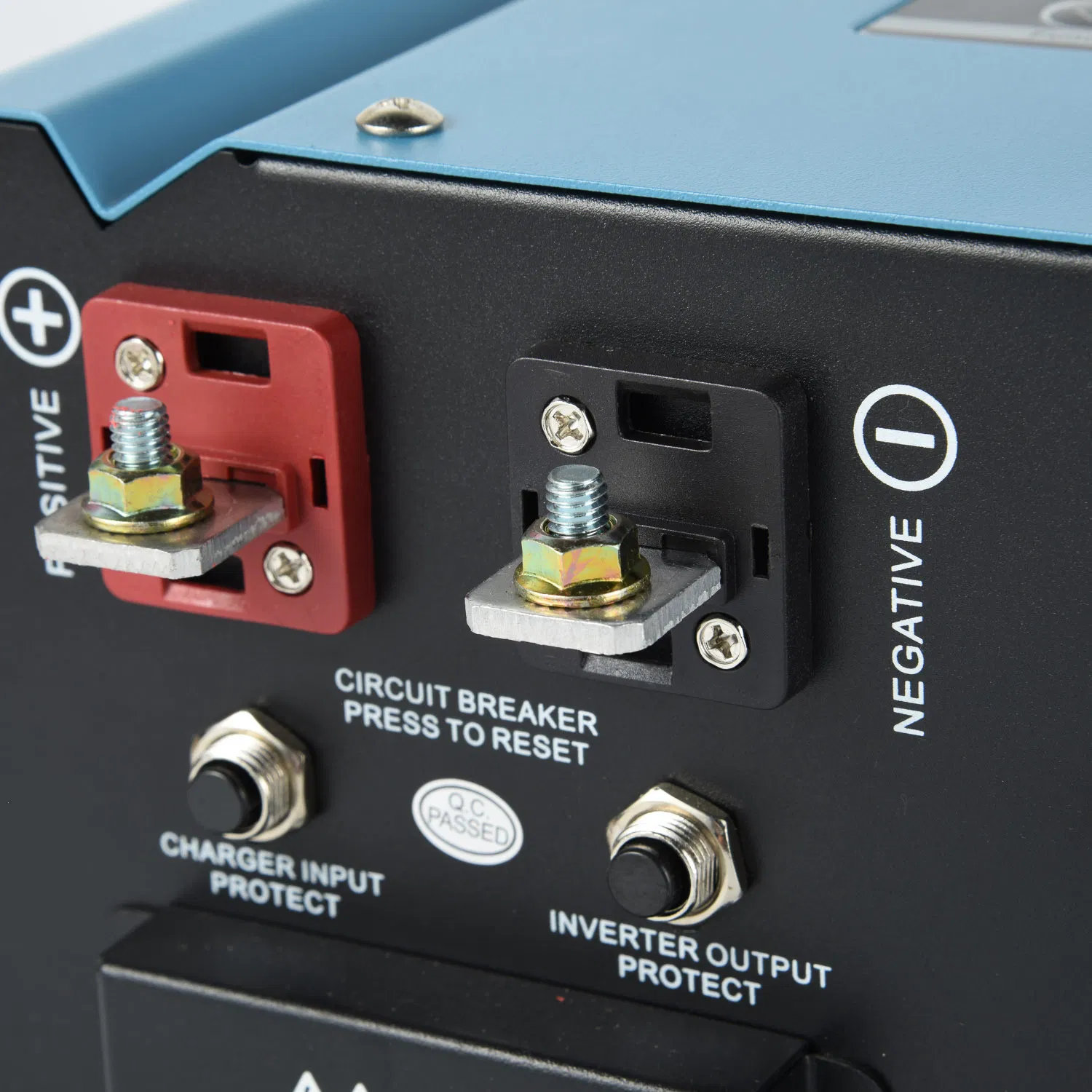

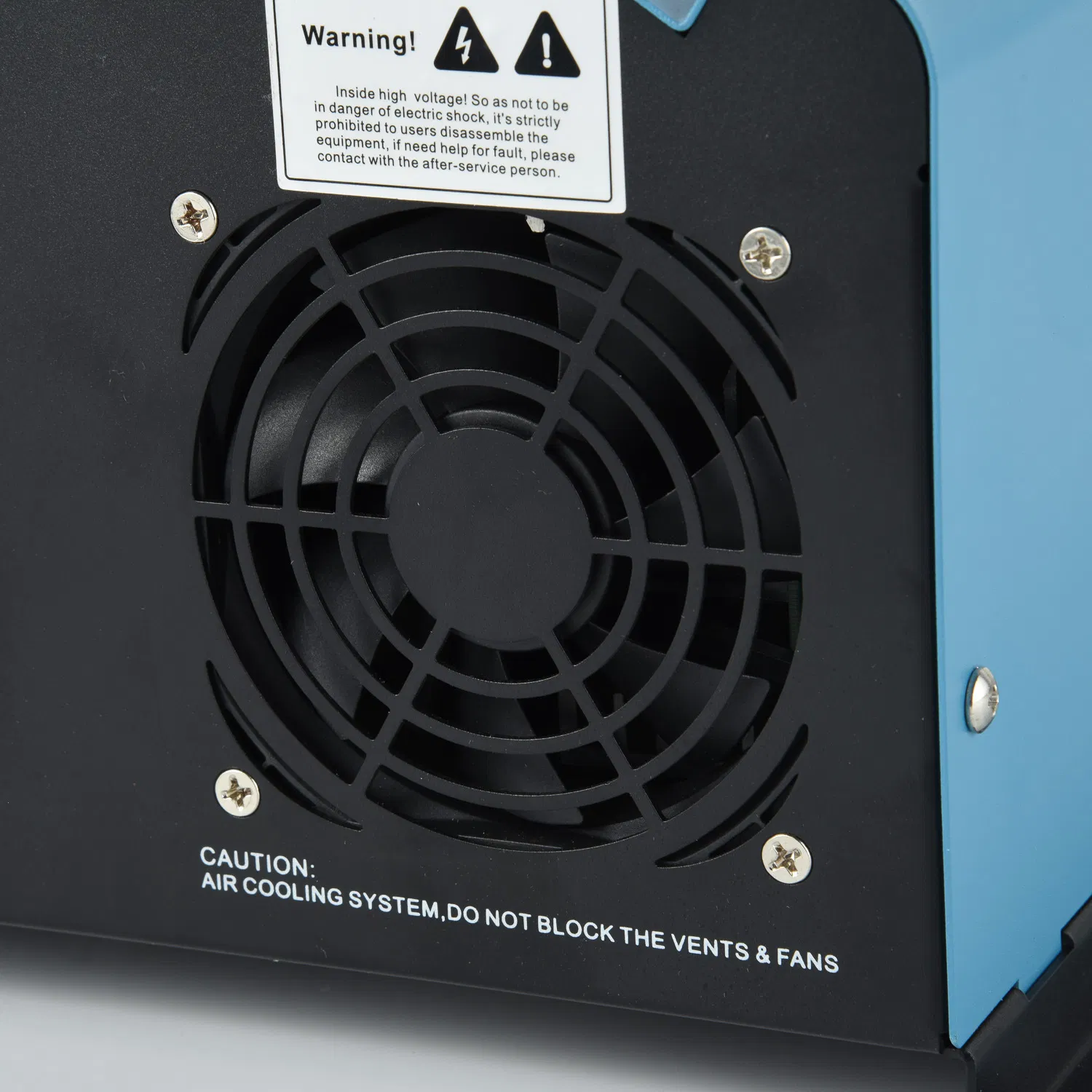

1. Fan | 2. AC input/output terminal | 3. AC input/output fuse holder | 4. RS232 interface | 5. Battery negative (-) | 6. Battery positive (+) | 7. Earth terminal
🔍 Detailed Diagrams
❓ FAQ
What is the transfer time between Grid and Battery mode?
The automatic transfer time is typically less than 10ms, ensuring uninterrupted power for most electronic devices.
Does this inverter include a built-in solar charge controller?
No, this specific GPSW-II model does not have a built-in solar charge controller. It is a pure sine wave inverter with an AC charger.
What kind of output waveform does it provide?
It provides a Pure Sine Wave output, which is safe for all types of loads, including sensitive electronics and motor-based appliances.
Can I adjust the charging current?
Yes, the charge current is adjustable up to 30A (default) and can be configured via the LCD monitor settings (C0-C6).
What protections does the inverter have?
It features comprehensive protection for battery over/low voltage, overload, short circuit, and over-temperature.
What are the different working modes available?
You can select between Grid Priority (UPS Mode), Battery Priority (Solar Mode), and Power Saver Mode via the LCD settings.
