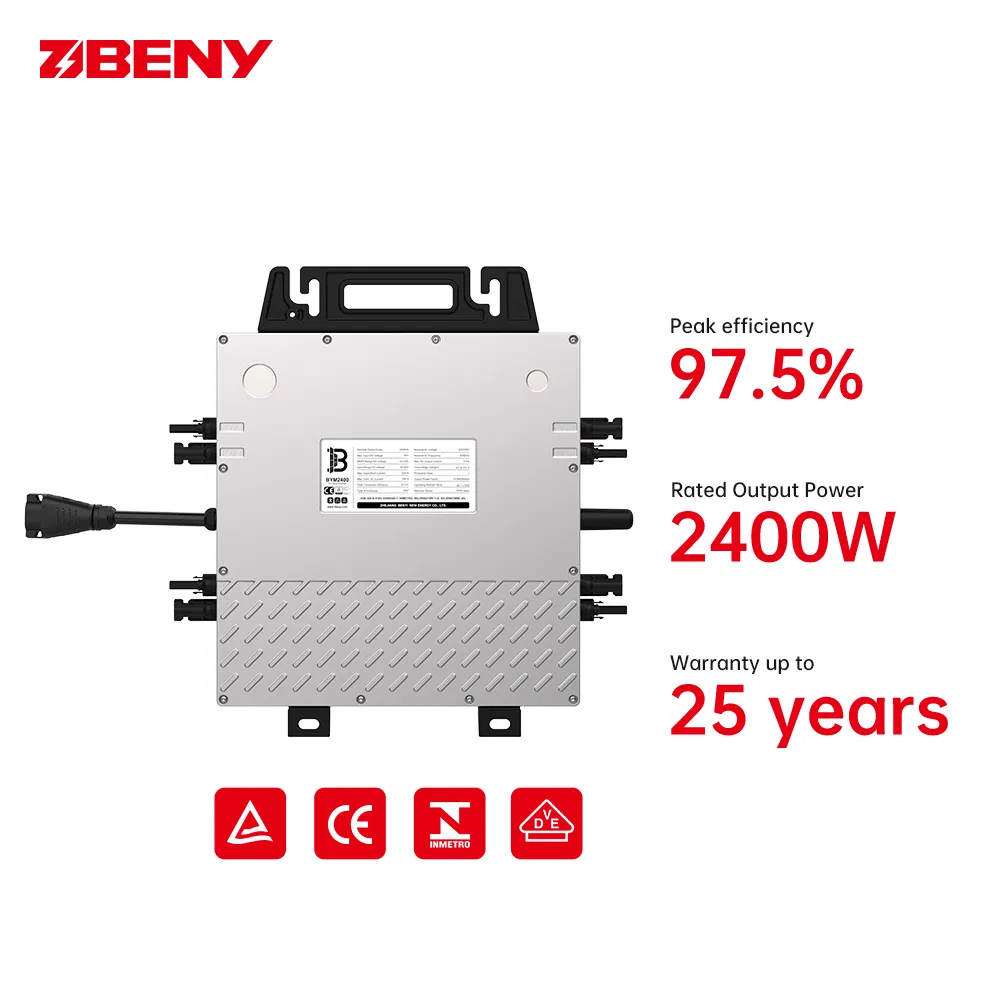

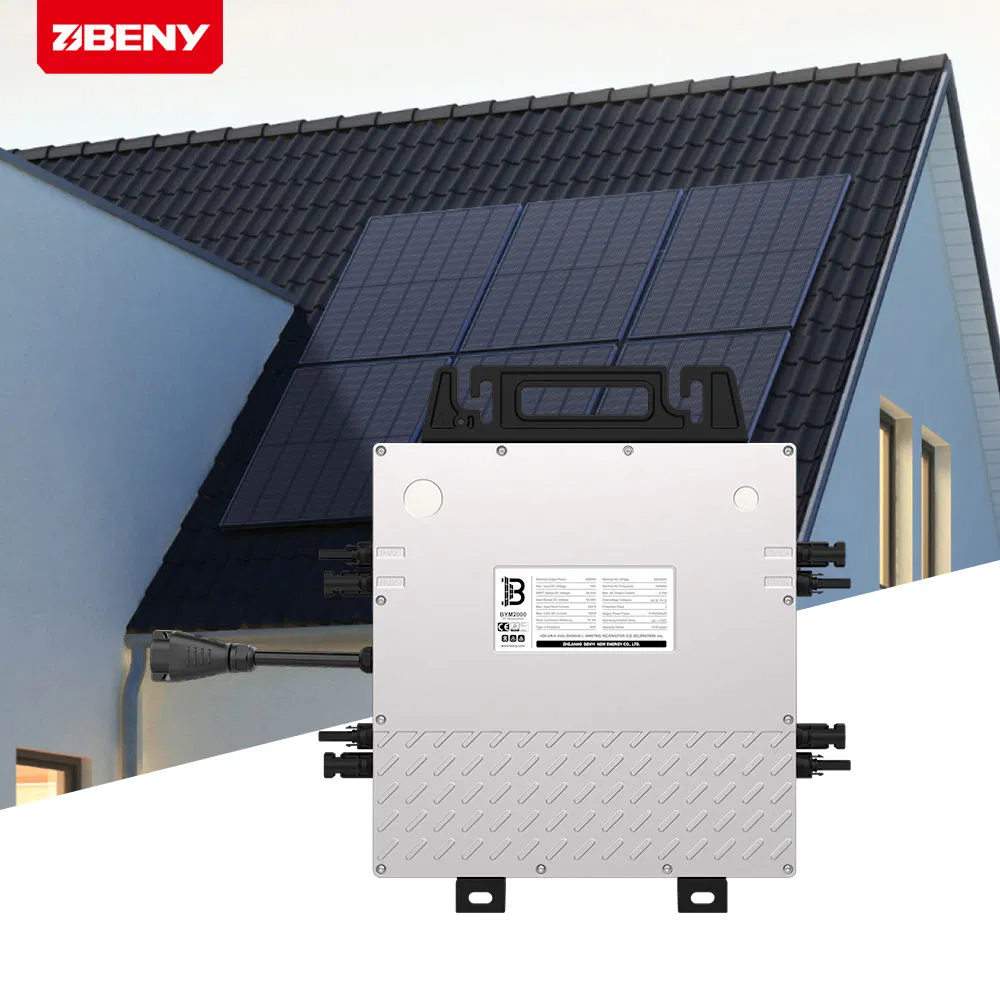

| Technical Data | |
| Model NO. | BYM-2400 |
| Output Power | 2400W |
| Certification | CE TUV Ukca |
| Type | DC/AC Inverters |
| Power Source | Solar Power |

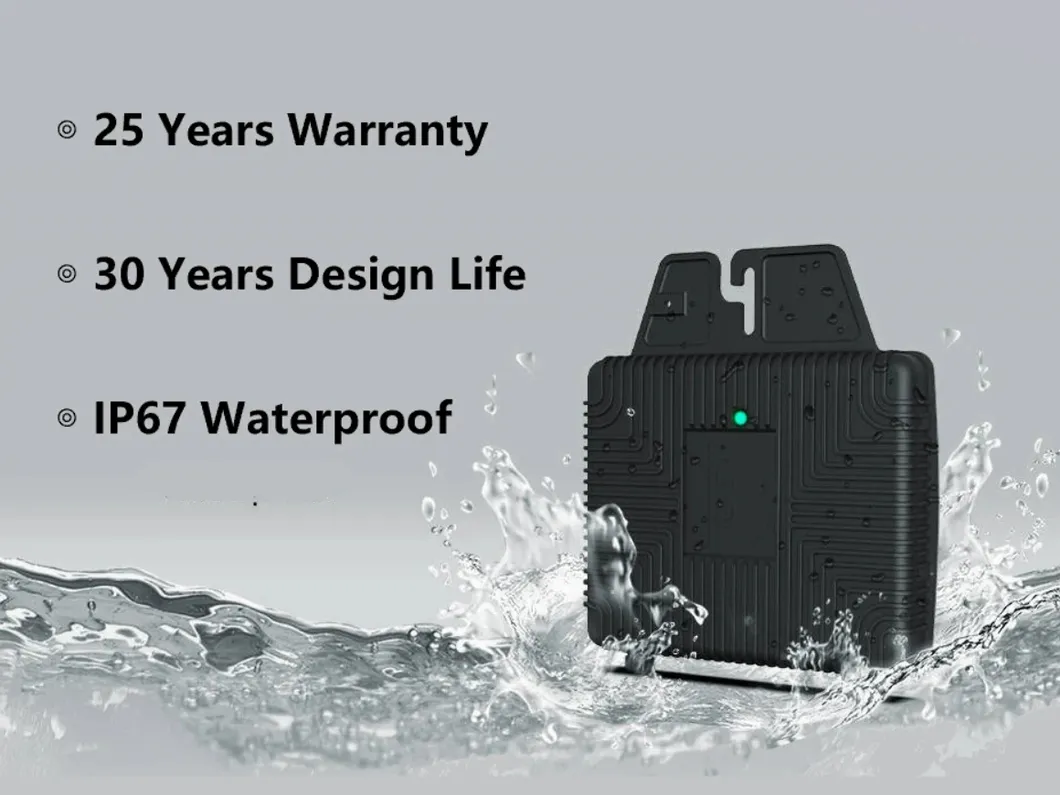

| Enclosure Rating | IP67 |
| Power Factor | >0.99 (Default) |
| Rated Voltage/Range | 230V/176-265V |
| MPPT Voltage Range | 24V-50V |
| Operating Voltage Range | 16V-60V |
| Maximum DC Input Voltage | 60V |
| Max. Short Circuit Current | 20A*4 |
| Max. Input Current | 18A*4 |
| Reted Output Power | 2400va |
| Package Size | 39.00cm * 30.00cm * 43.00cm |
| Package Gross Weight | 8.000kg |
Top Brand in Protection for Solar PV, Battery Energy Storage and EV Charging System
We are a leading manufacturer annually producing hundreds of thousands of quality DC protection products and EV charging stations. Certified by SAA, CB, CE, TUV, UKCA, ISO, and RoHS, we offer patented solutions like AFCI for rooftop fire protection and dynamic load balancing.
Partner with seasoned consultants who meticulously craft cost-effective PV solutions considering materials and functional design.
Leverage advanced, automated production lines to efficiently deliver bulk orders of complete PV protective products.
Industry's most comprehensive lineup of reliable, user-friendly, and cost-effective circuit protection solutions.
Microinverters boast up to 1500Vdc ratings and comply with global standards (SAA, CB, CE, TUV, ISO, RoHS).

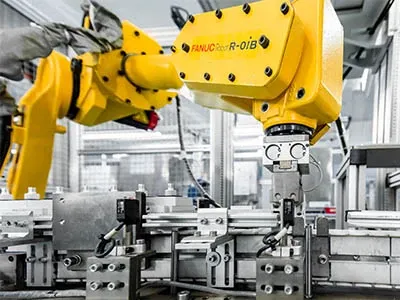

Leaders in safe and smart manufacturing, backed by a dedicated facility for rigorous quality control.
Professional support anytime, anywhere via phone or email to ensure your system runs smoothly.

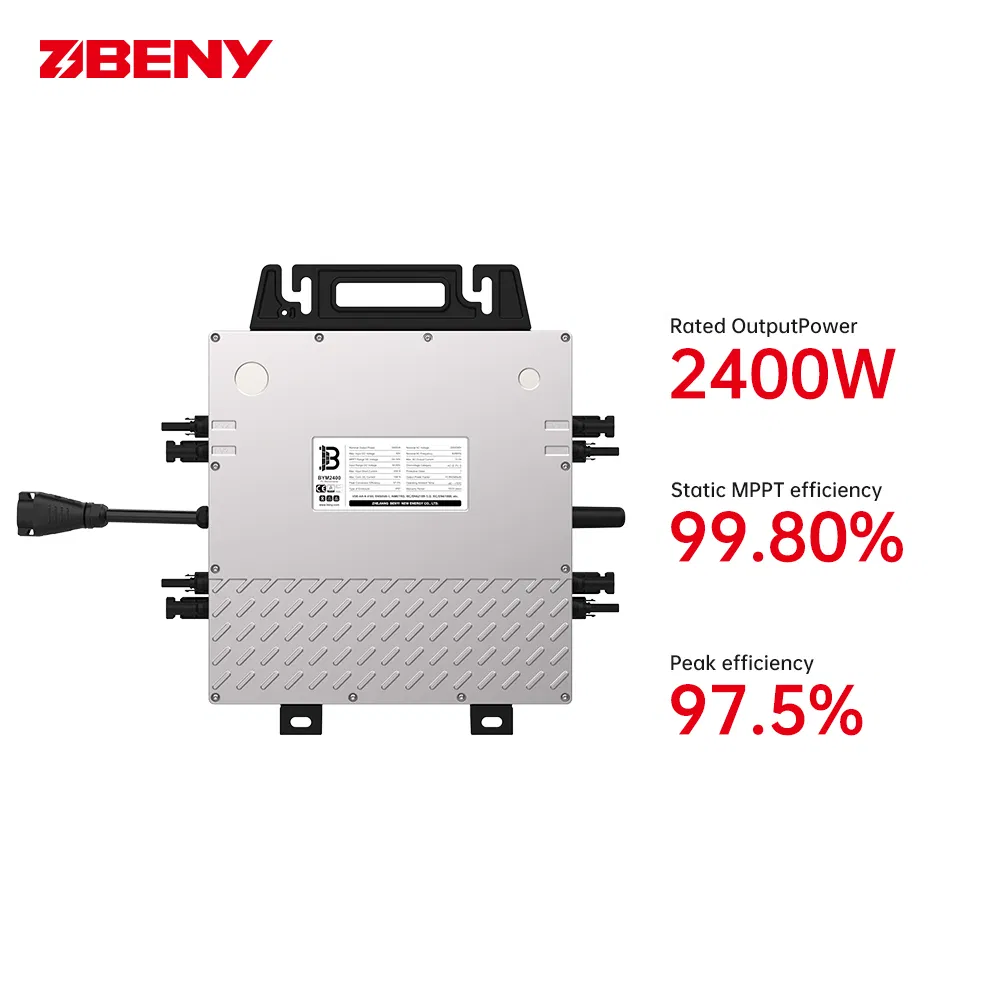

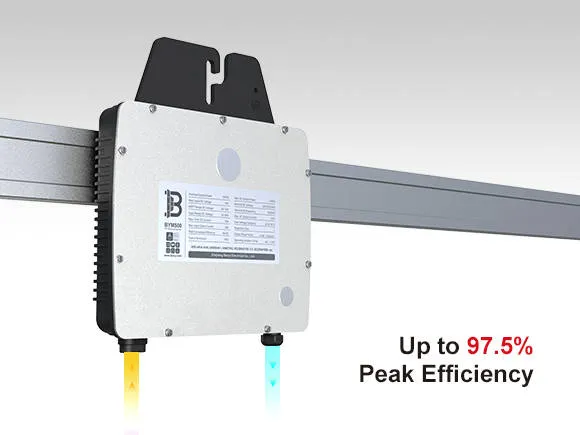

Boost Output by 97.5% with industry-leading peak efficiency. Individual MPPT for each panel ensures optimal performance, even with shading or mismatched panels. Handle more power with 20A continuous input capacity and operate in extreme temperatures (-40°C to 70°C).

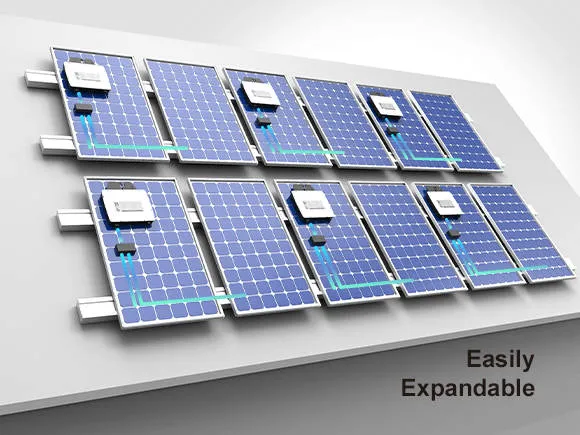

Scale up easily without complex rewiring. Our modular design allows you to add panels seamlessly, starting with one and growing independently. The AC trunk cable simplifies installation, reducing costs and timelines.

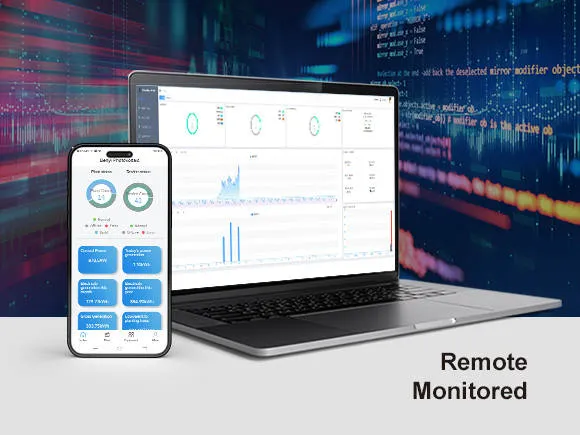

Get real-time insights with module-level data for precise control. Utilize existing power lines through PLCC and Wi-Fi for a clean setup. Remote management helps maximize performance and reduce maintenance costs.
| Input Data (DC) | |
| Recommended Input Power | (450~750)W*4 / (350~550)W*8 |
| MPPT Voltage Range | 24V-50V |
| Max. Short Circuit Current | 20A*4 |
| Output Data (AC) | |
| Rated Output Power | 2400VA |
| Maximum Output Current | 11.0A |
| Power Factor | >0.99 |
| Efficiency & Environment | |
| Peak Efficiency | 97.50% |
| Operating Temperature | -40ºC to +70ºC |
| Warranty Period | 10 / 25 Years (Optional) |

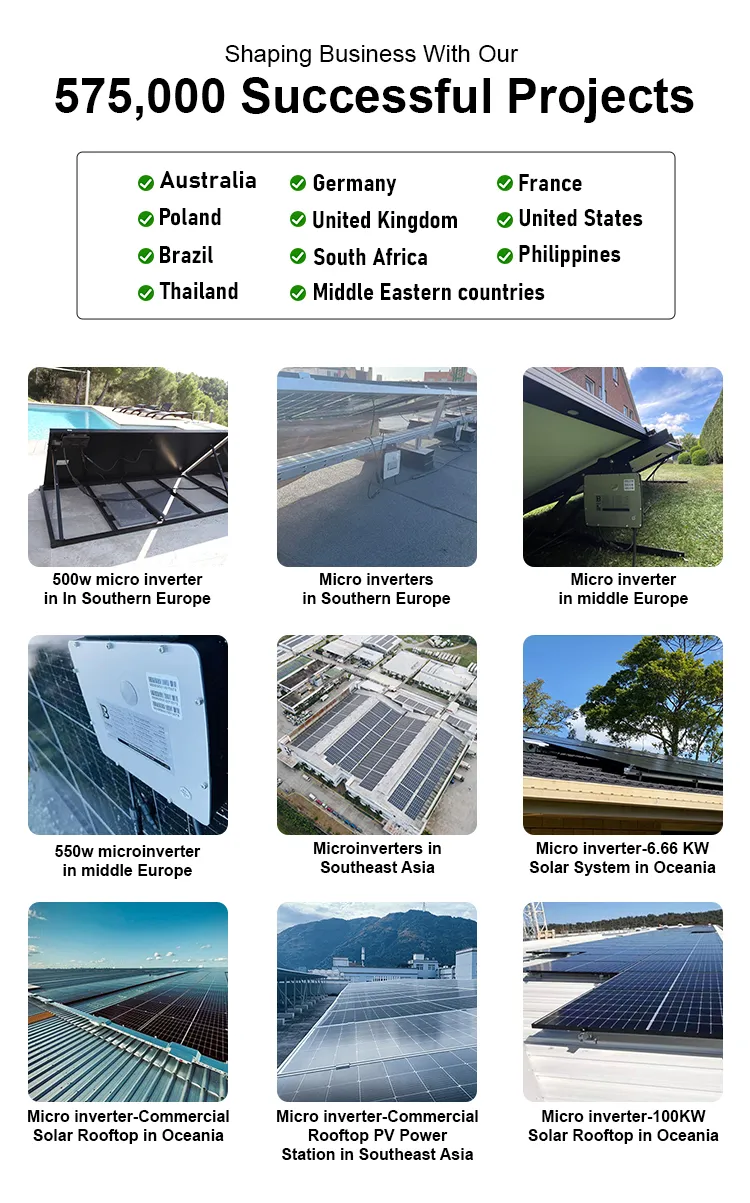

Our products are instrumental in numerous PV and EV charging projects across Australia, Germany, France, Poland, UK, USA, Brazil, South Africa, and more. We cater to solar manufacturers, contractors, and distributors worldwide, supported by overseas offices in Germany, USA, and Brazil.
