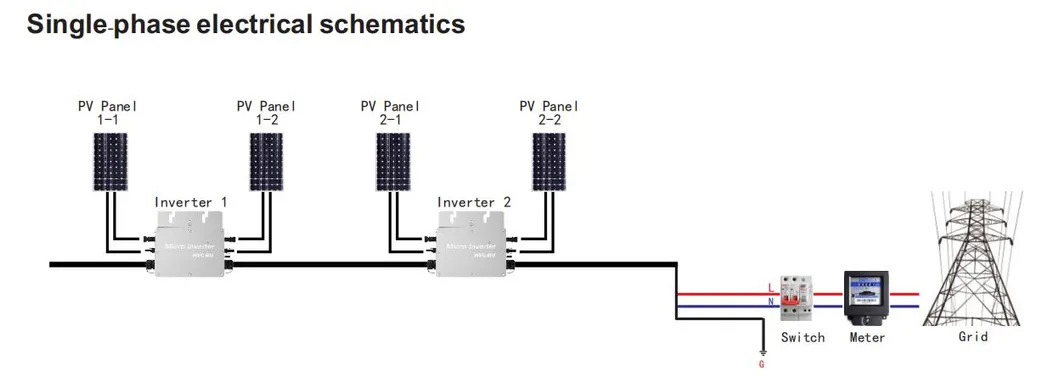

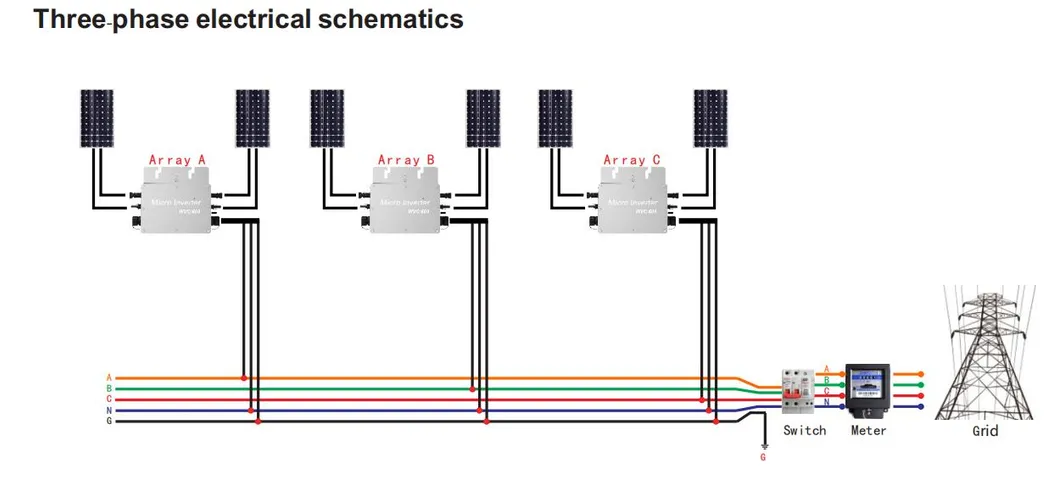

Operating with less than 100 Volts and connected in parallel, our microinverters minimize fire hazards compared to traditional string inverters using hundreds of DC volts.

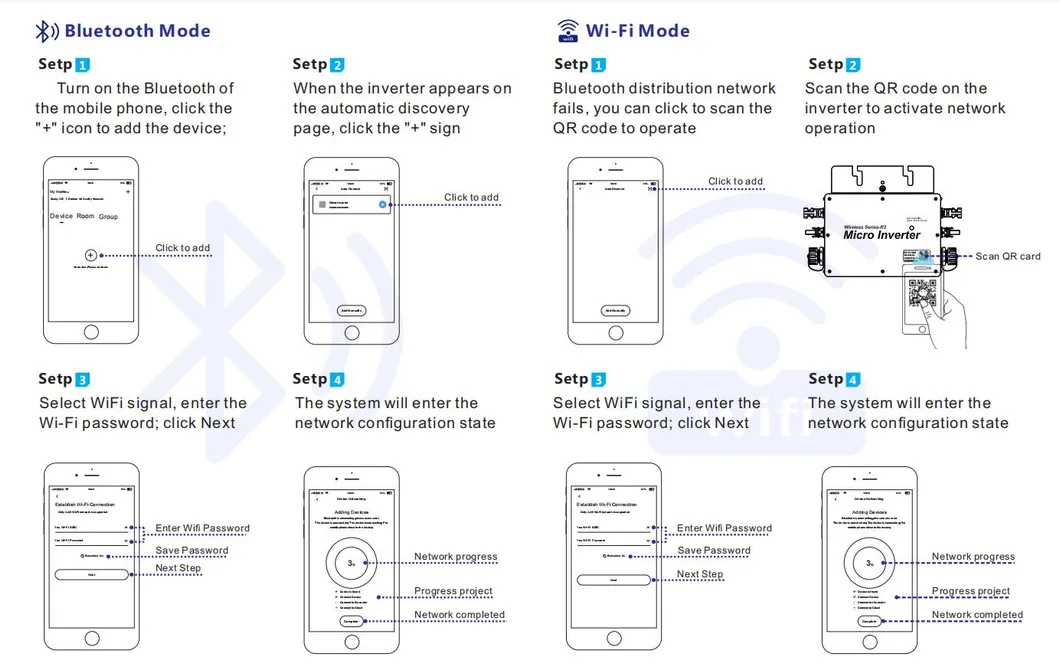

Every individual solar panel is monitored and tracked via ECU, ensuring precision management of your energy production.
Independent MPPT tracking on every panel eliminates parallel effects. It minimizes losses due to shading and excels in weak light conditions due to low starting voltage.
Designed for a service life of 25 years or longer, providing long-term stability for your solar investment.

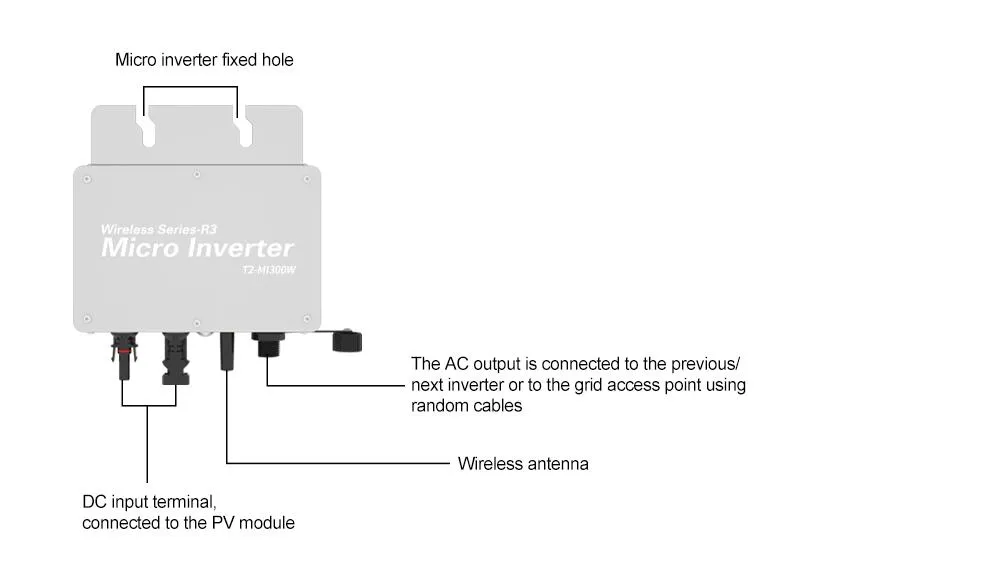

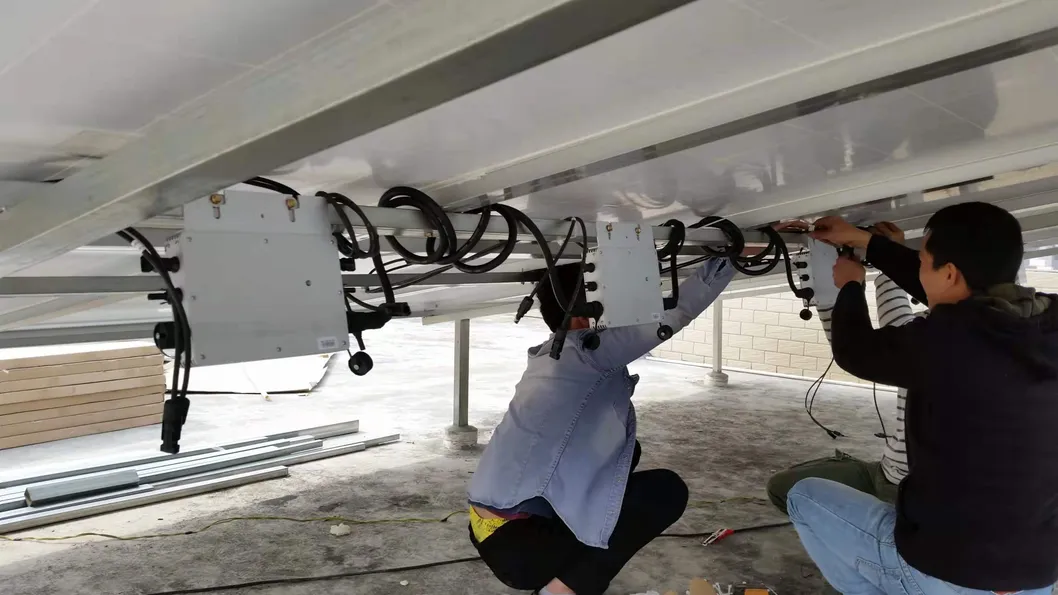

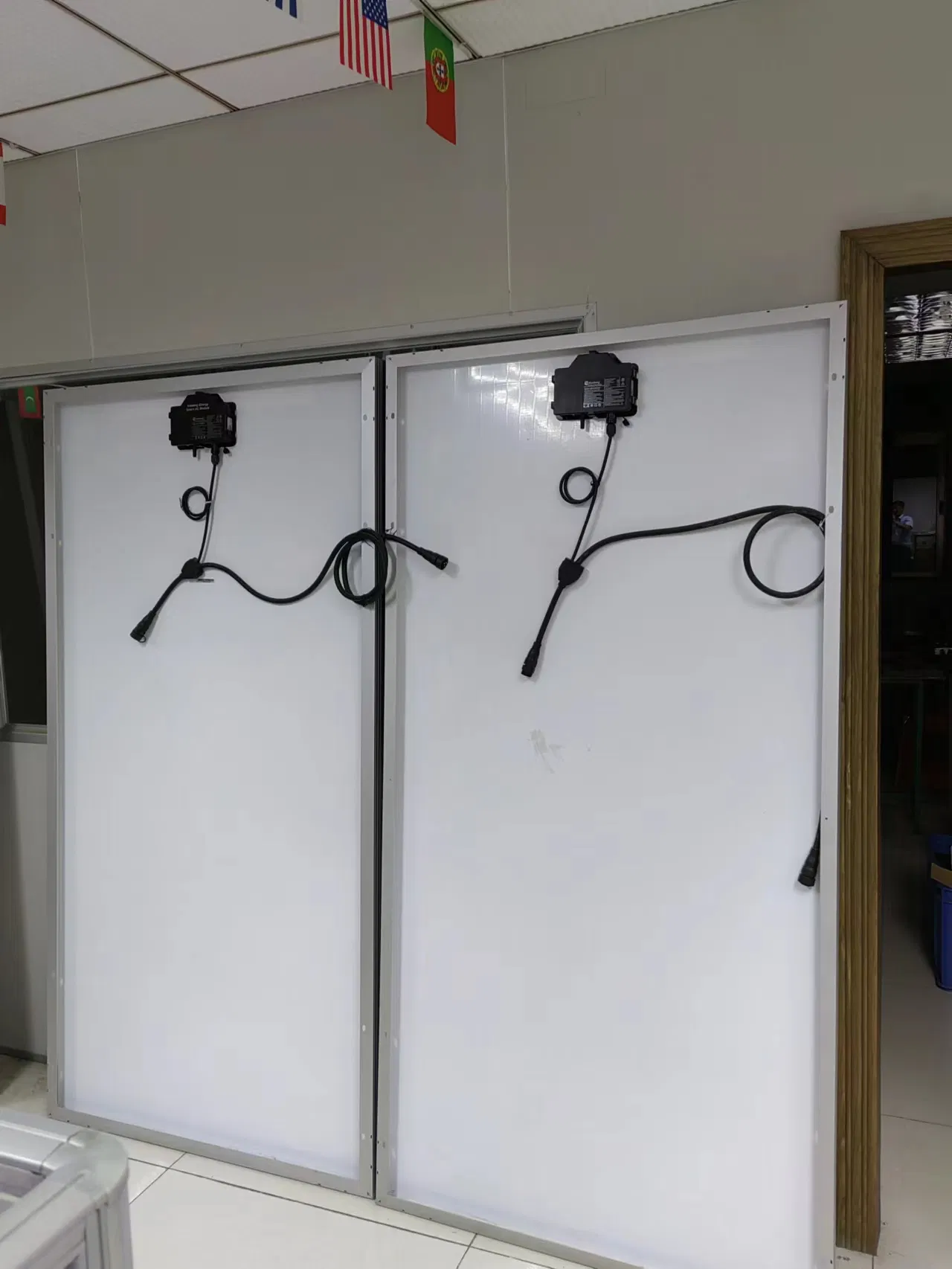

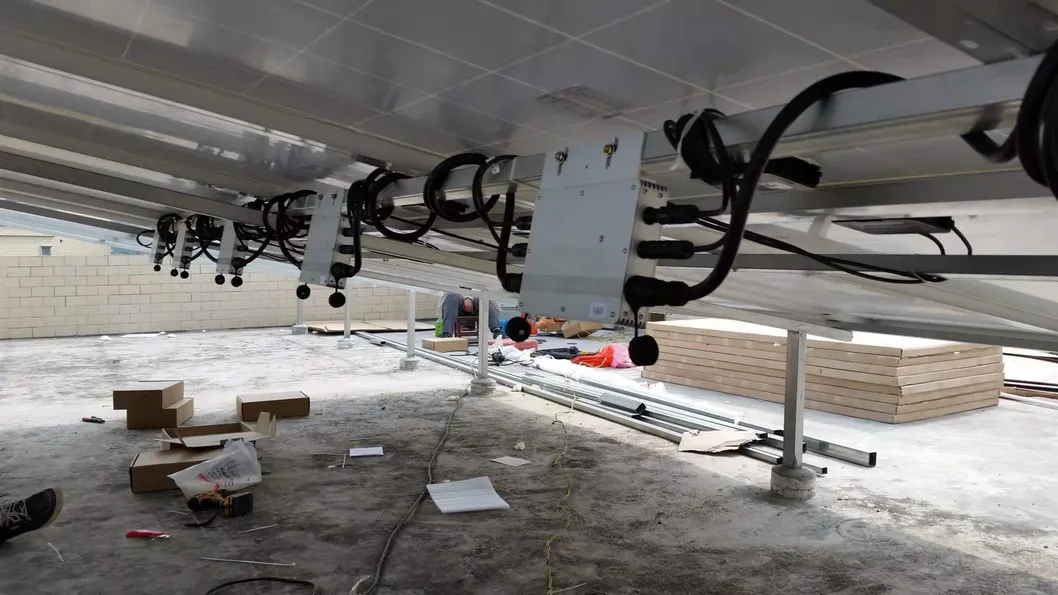

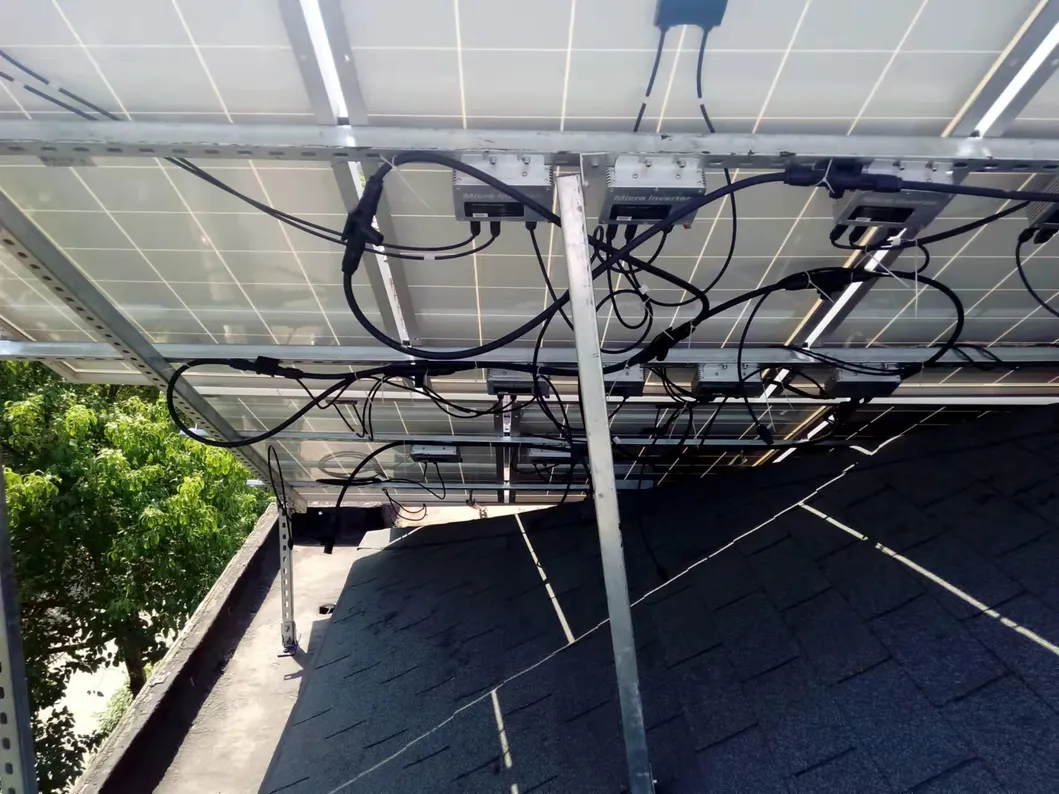

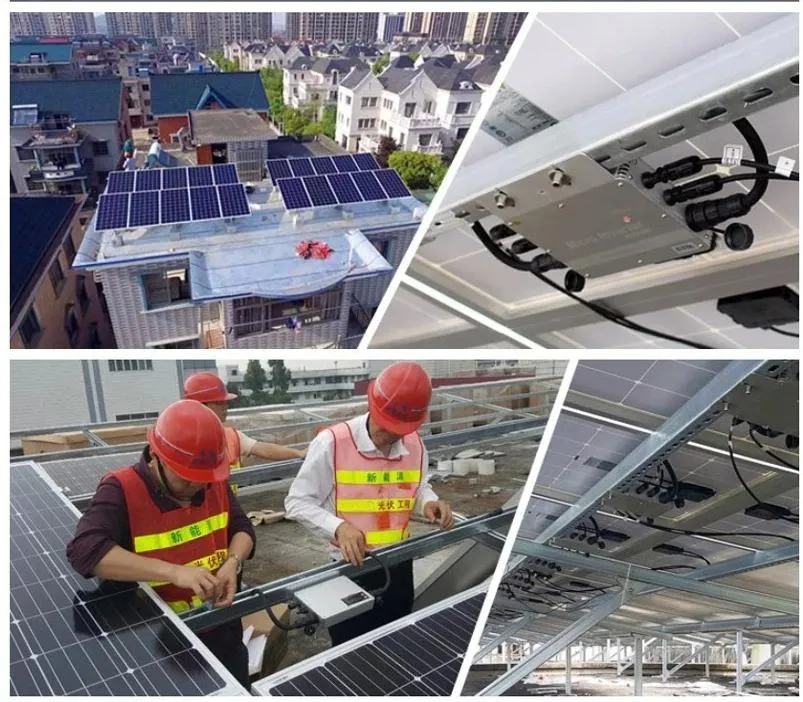

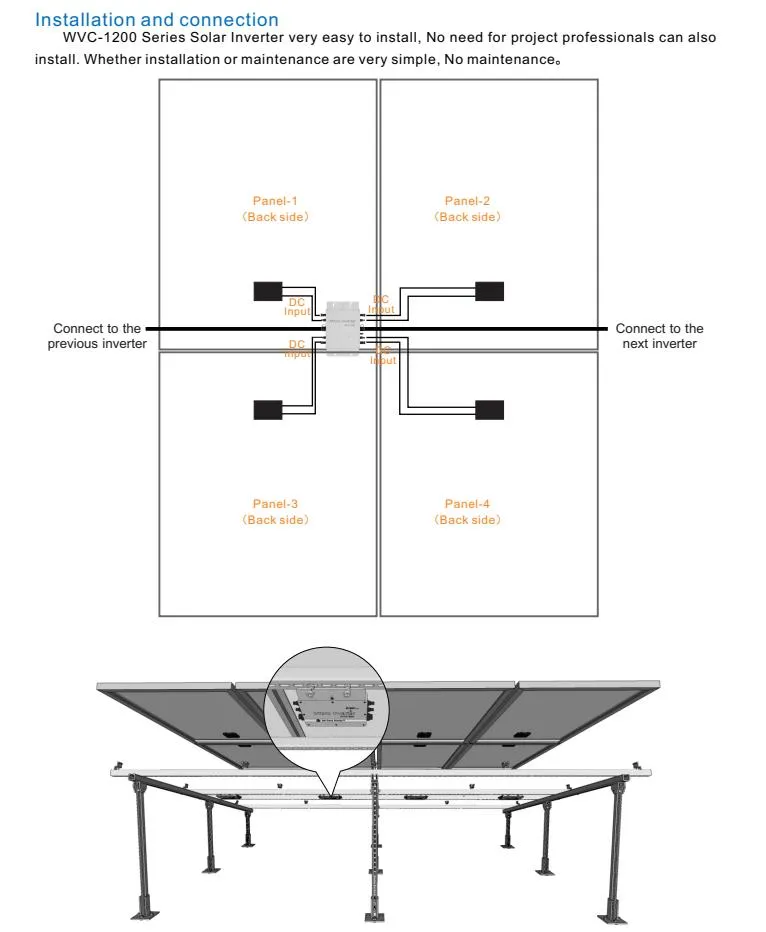

No dedicated cabinet room required. The micro-inverter installs directly behind the module or on the bracket, allowing for easy scale-up.

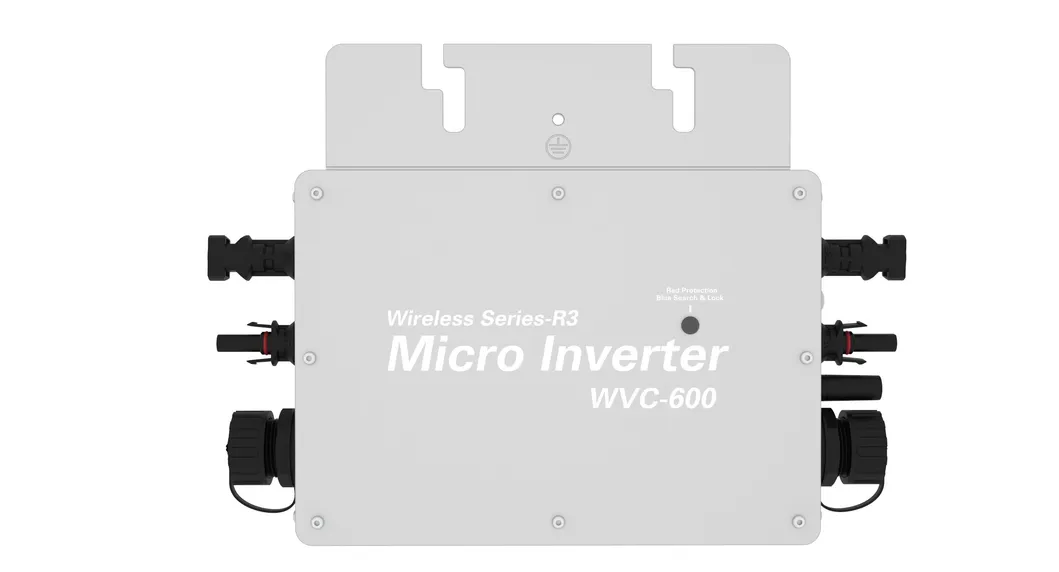

| Input Data (WVC-600W Example) | |
|---|---|
| Recommended Solar Panels | 2 * 375 Watt |
| Output Voltage Mode | 120/230V Auto switch |
| PV Open Circuit Voltage | 33-60VDC |
| Operating Voltage Range | 22-60V |
| Short-circuit Current | 2 * 15A |
| Maximum Working Current | 2 * 12A |
| Mechanical & Environment | |
|---|---|
| Temperature Range | -20°C to +50°C |

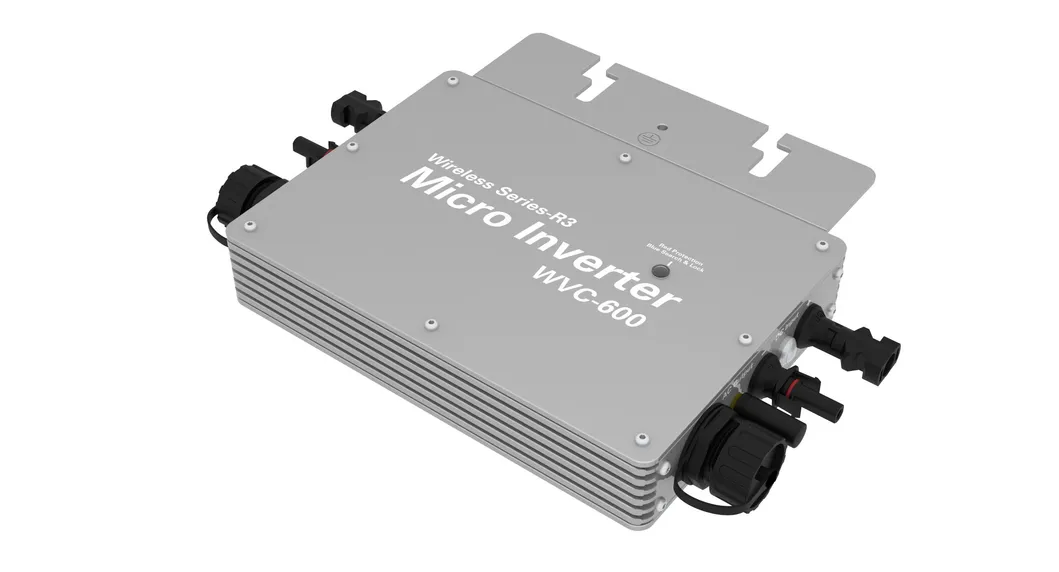

| Dimensions (L×W×H) | 283mm × 200mm × 41.6mm |
| Waterproof Grade | IP65 NEMA3R |
| Cooling Mode | Self-cooling |
| Communication Mode | Wi-Fi |
| Monitoring System | Mobile APP |
