📊 Basic Information
Model NO.
Axpert VMI 4.2k
Max PV Open Circuit
450VDC
🛠️ Product Description

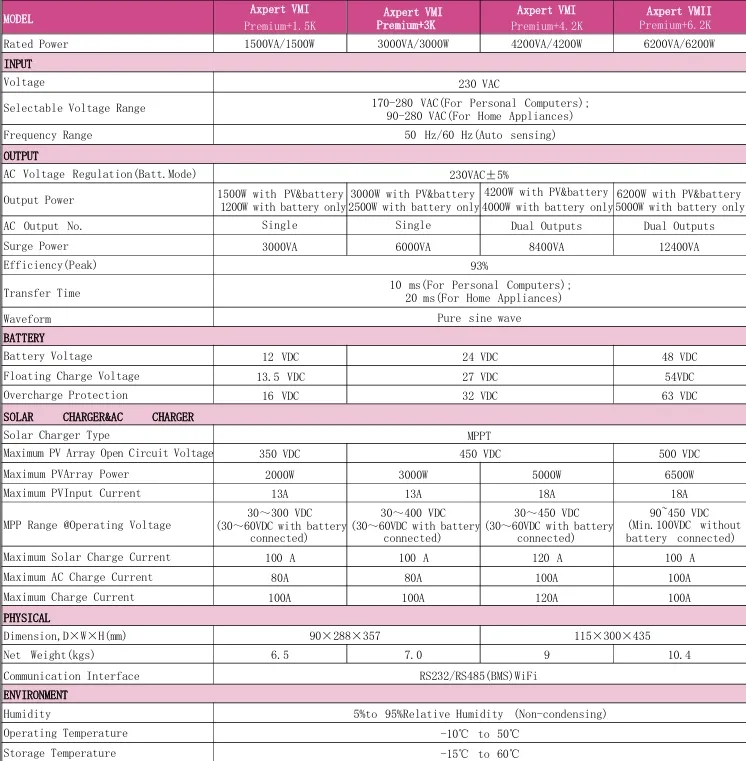

| Technical Item |
Specification Value |
| Application | Electric Power Systems |
| Model Number | Axpert VMI 1.5k |
| Electric Energy | 1500Kwh |
| Battery Size | 90D288W357H |
| Weight | 6.5 kg |
| AC Voltage Regulation | 230VAC±5% |
| Battery Voltage | 12VDC |
| Maximum PV Array Voltage | 350VDC |
| Maximum PV Array Power | 2000W |
| Operating Temperature | -10℃ to 50℃ |
| Storage Temperature | -15℃ to 60℃ |
| Communication Interface | RS232/RS485(BMS)WiFi |
| Max Solar Charge Current | 100A |
Established in 2008, this international high-tech and growing entity is among the early domestic enterprises dedicated to the professional research, design, production, and sales of batteries. With a facility covering 3000 square meters, the focus remains on pioneering development in Smart PV Energy and Energy Internet Solutions. With over 10 years of combined solar energy experience, the mission continues to support the renewable energy transition by harvesting clean energy globally. The enterprise holds numerous technology patents, specializing in energy storage systems for wind and solar energy, covering large, medium, and small sizes.
❓ Frequently Asked Questions
What is the maximum PV array open circuit voltage for this inverter?
The system supports a maximum PV array open circuit voltage of up to 450VDC (Model Axpert VMI 4.2k) or 350VDC (Model Axpert VMI 1.5k).
What battery voltages are compatible?
Depending on the specific model, the system supports 12VDC or 24VDC battery configurations.
What is the operating temperature range for the device?
The inverter is designed to operate efficiently in temperatures ranging from -10℃ to 50℃.
Does the inverter support remote monitoring?
Yes, it features multiple communication interfaces including RS232, RS485 (BMS), and WiFi for remote management.
What is the maximum solar charging current?
The unit can handle a maximum solar charge current of up to 100A.
Is the AC output voltage regulated?
Yes, the AC voltage regulation is maintained at 230VAC ±5% for stable power supply.
