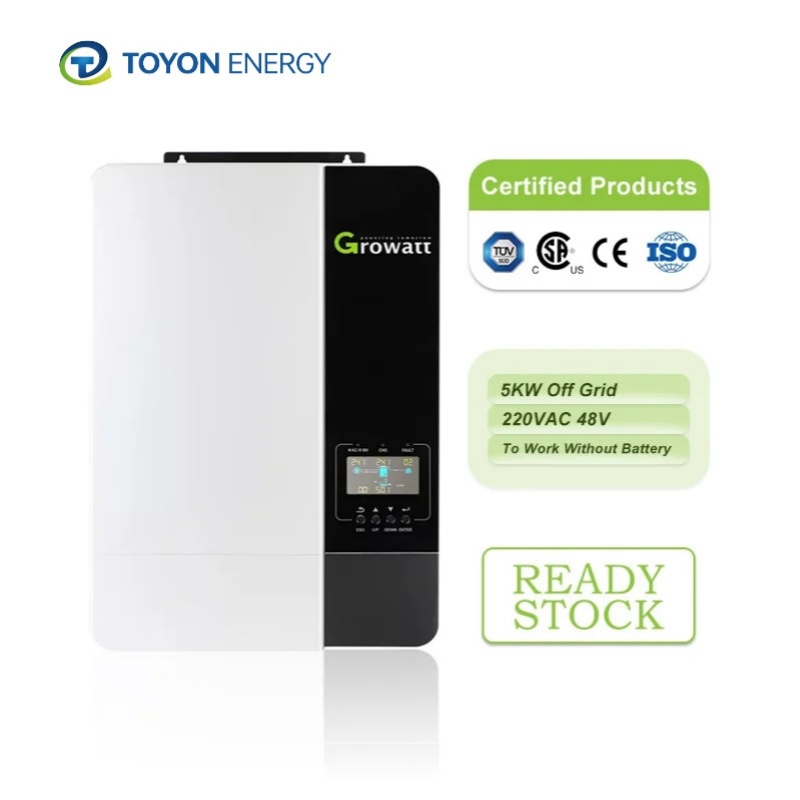

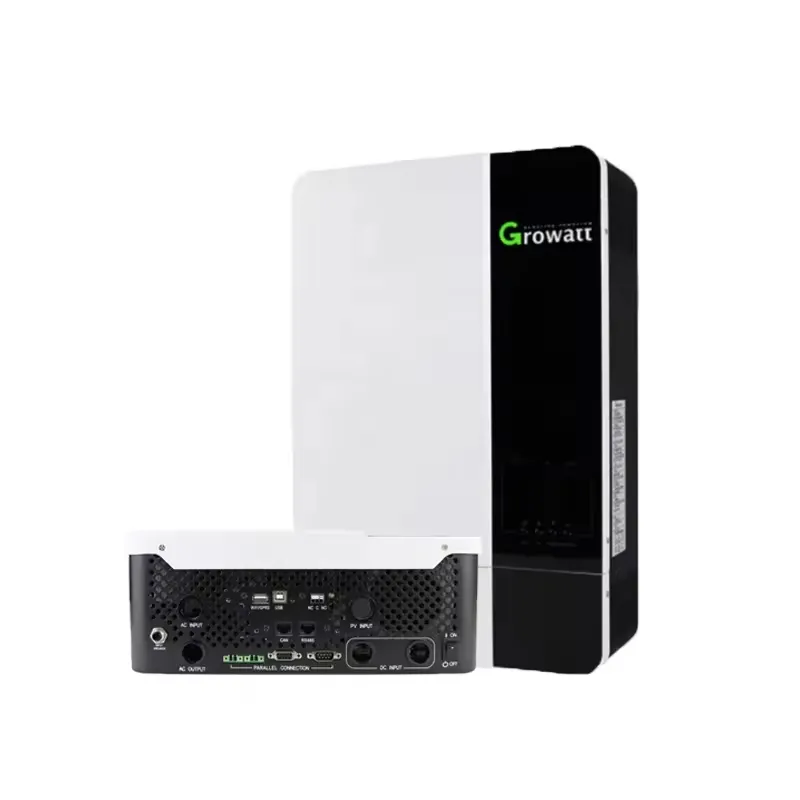

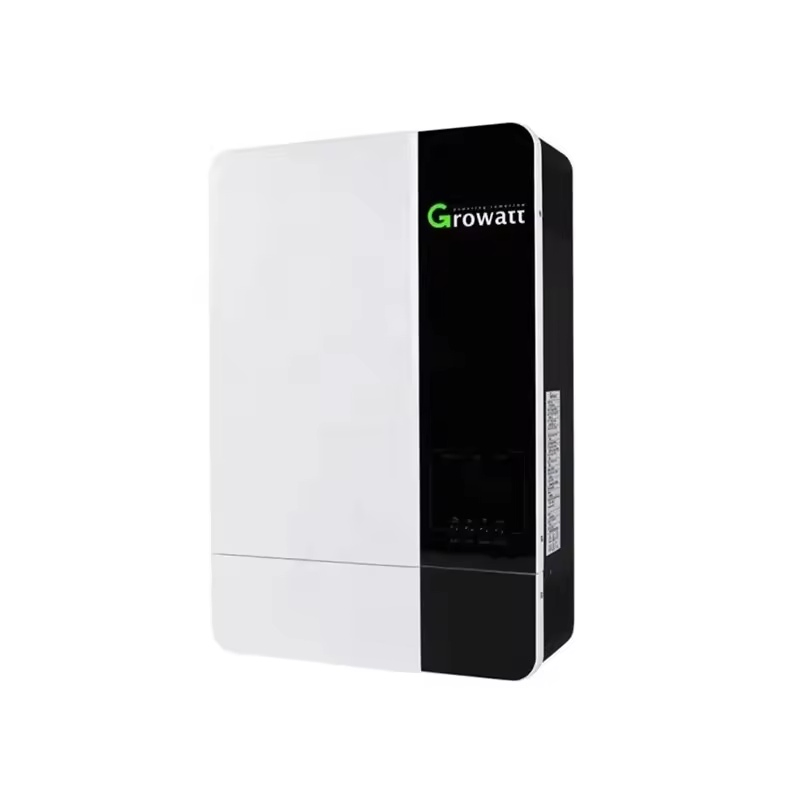

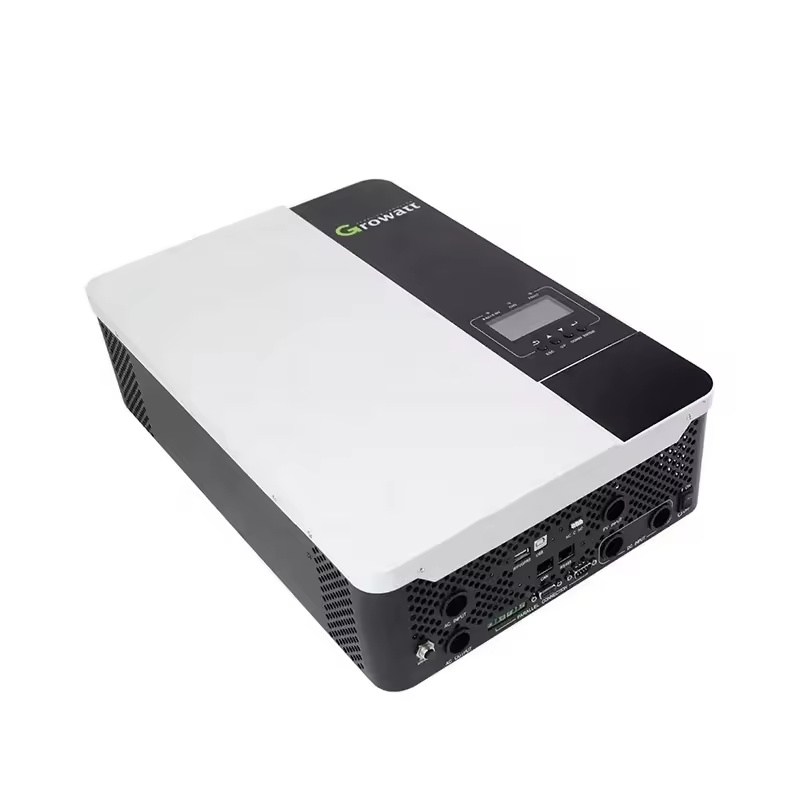

Integrated MPPT Charge Controller Hybrid Solar Inverter off-Grid Solar Inverter

Customization:	Available
After-sales Service:	5/10years
Warranty:	5/10years

Overview & Basic Info

Model NO.

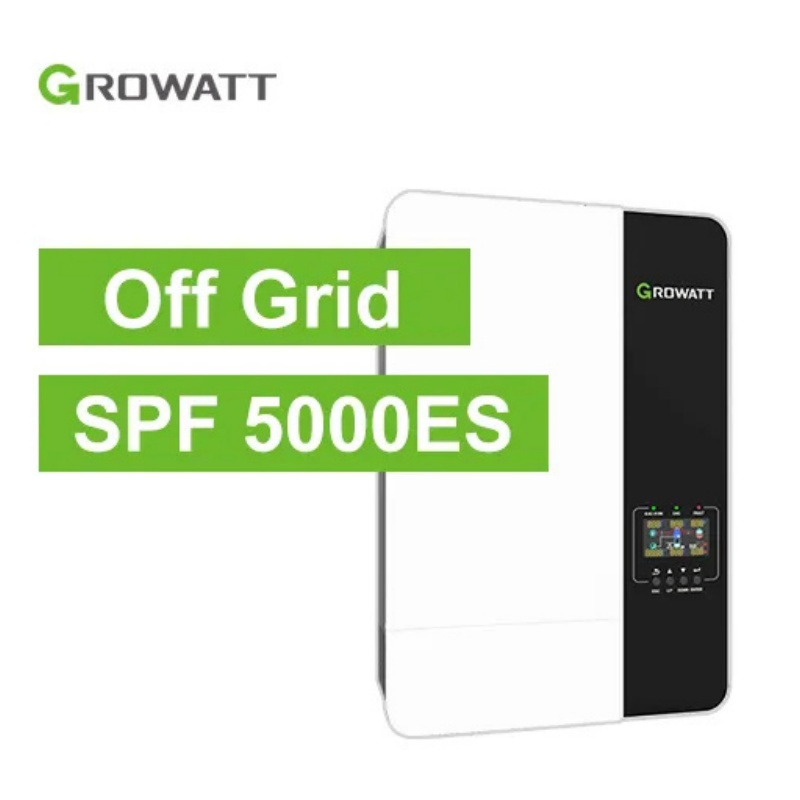

SPF 5000ES

Source Flow

Active Inverter

Phase

Single

Output Power

>1000W

Certification

CE

Type

DC/AC Inverters

Power Source

Solar/Wind Power

Waveform

Pure Sine Wave

Efficiency (Peak)

93%

MPPT Range

120VDC ~ 430VDC

Battery Type

Lead Acid/ Lithium

Battery Voltage

48 VDC

Key Features

✓ Integrated MPPT charge controller.

✓ Equalization charging function.

✓ Work with or without battery.

✓ PV input voltage up to 450V DC.

✓ Configurable grid or solar input priority.

✓ Optional WiFi/GPRS remote monitoring.

✓ Support parallel operation up to 30kW.

✓ Joint PV and grid power load supply.

✓ Flexible charging and discharging schedule.

Technical Specifications

Datasheet
Model Name	SPF 3500ES	SPF 5000ES
Inverter Output
Max. PV power	3500VA/ 3500W	5000VA/ 5000W
Parallel Capability	Yes, 6 units maximum
AC Voltage Regulation	230VAC ± 5% @ 50/60Hz
Surge Power	7000VA	10000VA
Efficiency (Peak)	93%
Waveform	Pure sine wave
Solar Charger
Maximum PV Array Power	4500W	6000W
MPPT Range	120VDC ~ 430VDC
Max PV Open Circuit Voltage	450VDC
Max Solar Charge Current	80A	100A
Physical
Protection Degree	IP20

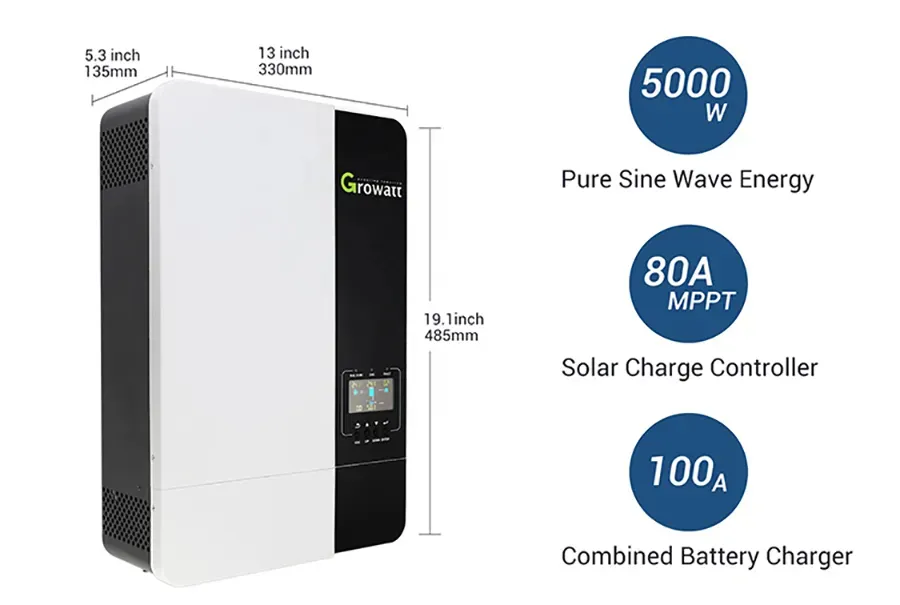

Dimension (W/H/D)	330/485/135mm
Net Weight	12kg

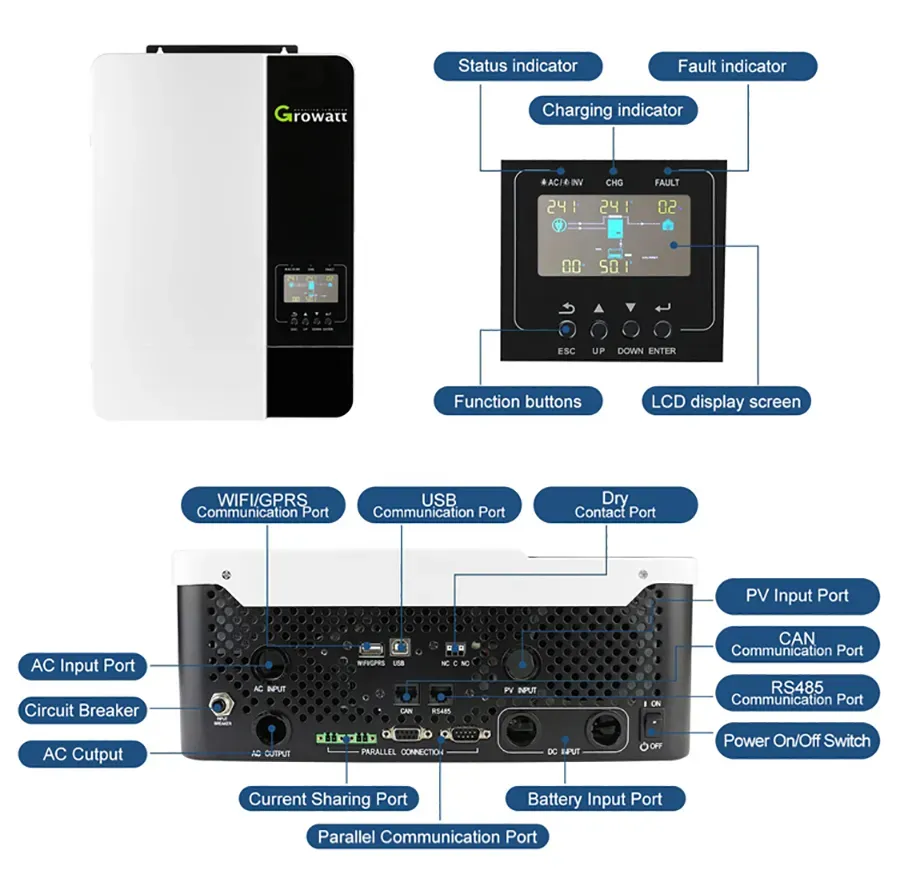

System Integration & Monitoring

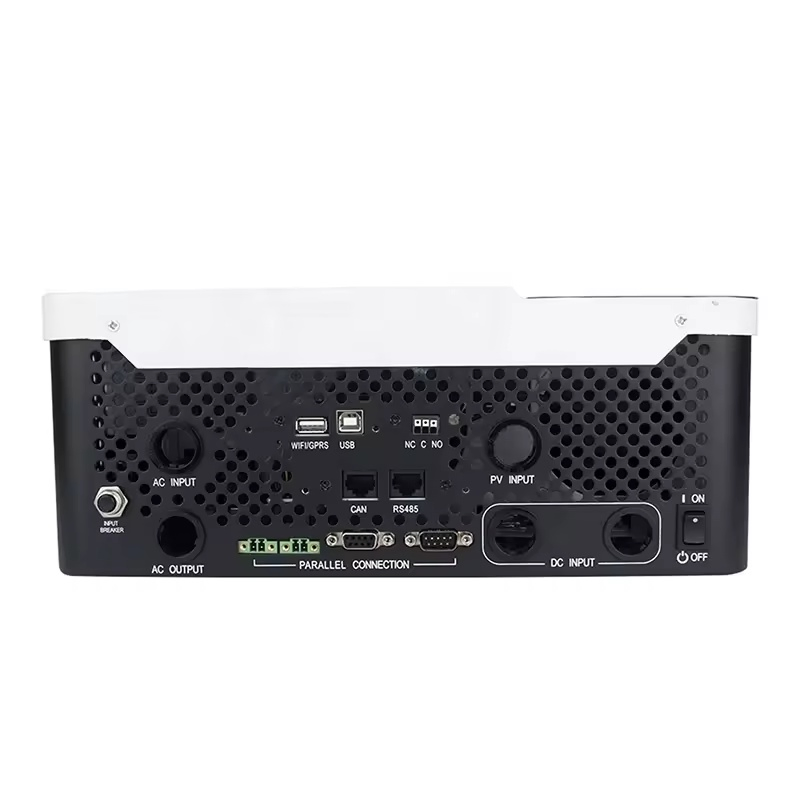

Parallel Operation Capabilities: Single phase 220-240V 50/60Hz systems can be expanded up to 6 units in parallel. Supports diverse connection configurations for various power needs.

★ One-click installation and registration.

★ One-click dispatch and navigation for support.

★ Safe operation with traceable logs.

★ Full lifecycle data storage for security.

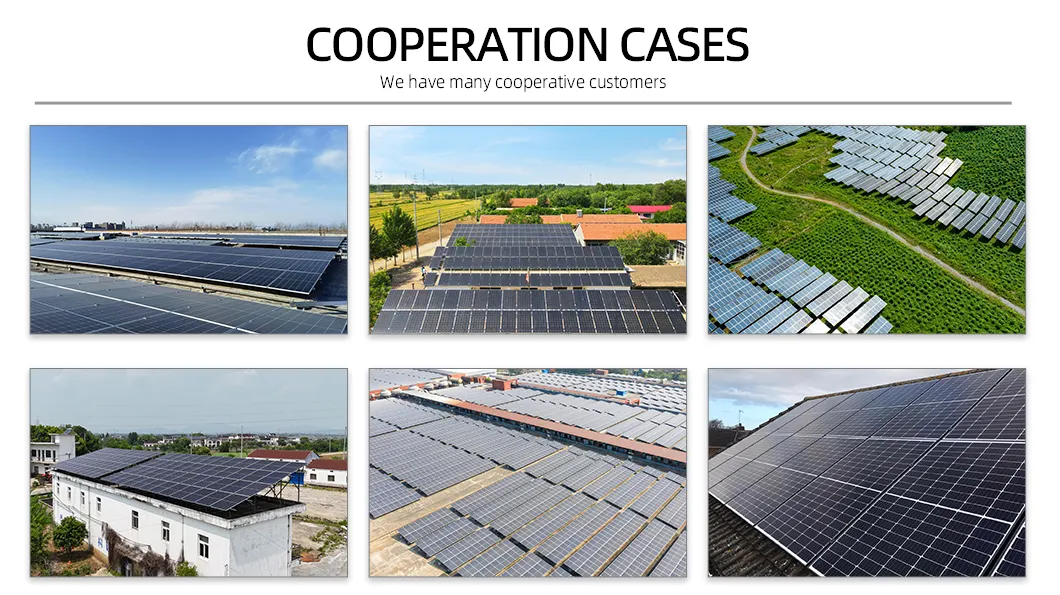

Comprehensive Energy Solutions

Business covers residential, commercial, landfill + photovoltaic composite projects, wind power, charging piles, energy storage and other diversified fields, while providing multi-scenario integrated application solutions for light storage.

Quality & Logistics
