120/230V Integrated Pure Sine Wave Solar Power Hybrid MPPT Inverter
120/230V Integrated Pure Sine Wave Solar Power Hybrid MPPT Inverter
120/230V Integrated Pure Sine Wave Solar Power Hybrid MPPT Inverter
120/230V Integrated Pure Sine Wave Solar Power Hybrid MPPT Inverter
120/230V Integrated Pure Sine Wave Solar Power Hybrid MPPT Inverter
1 / 5
120/230V Integrated Pure Sine Wave Solar Power Hybrid MPPT Inverter
120/230V Integrated Pure Sine Wave Solar Power Hybrid MPPT Inverter
120/230V Integrated Pure Sine Wave Solar Power Hybrid MPPT Inverter
120/230V Integrated Pure Sine Wave Solar Power Hybrid MPPT Inverter
120/230V Integrated Pure Sine Wave Solar Power Hybrid MPPT Inverter

120/230V Integrated Pure Sine Wave Solar Power Hybrid MPPT Inverter

Customization: Available
Nature of Source Flow: Active Inverter
Certification: CCC, ISO9001, RoHS, CE, SAA
Send Inquiry

Product Description

Basic Specifications
Model NO.
GS
Output Power
>1000W
Grid Type
Off-Grid Inverter
Output Type
Single
Circuit Topologies
Full-Bridge Type
Nature of Wave
Sine Wave Inverter
Type
DC/AC Inverters
AC Input
120/230VAC
Output Wave
Pure Sine Wave
Solar Charger
Battery Voltage
Color
Black & White
Frequency
50/60Hz Adjustable
Power Source
Solar Power
Outlook
Horizontal Type
Remote Control
Yes
Customized
Yes
Display
LCD and LED Optional
Package
Carton Wooden Case
Specification
58.00cm * 32.50cm * 3.10cm
HS Code
8504403090
Product Overview

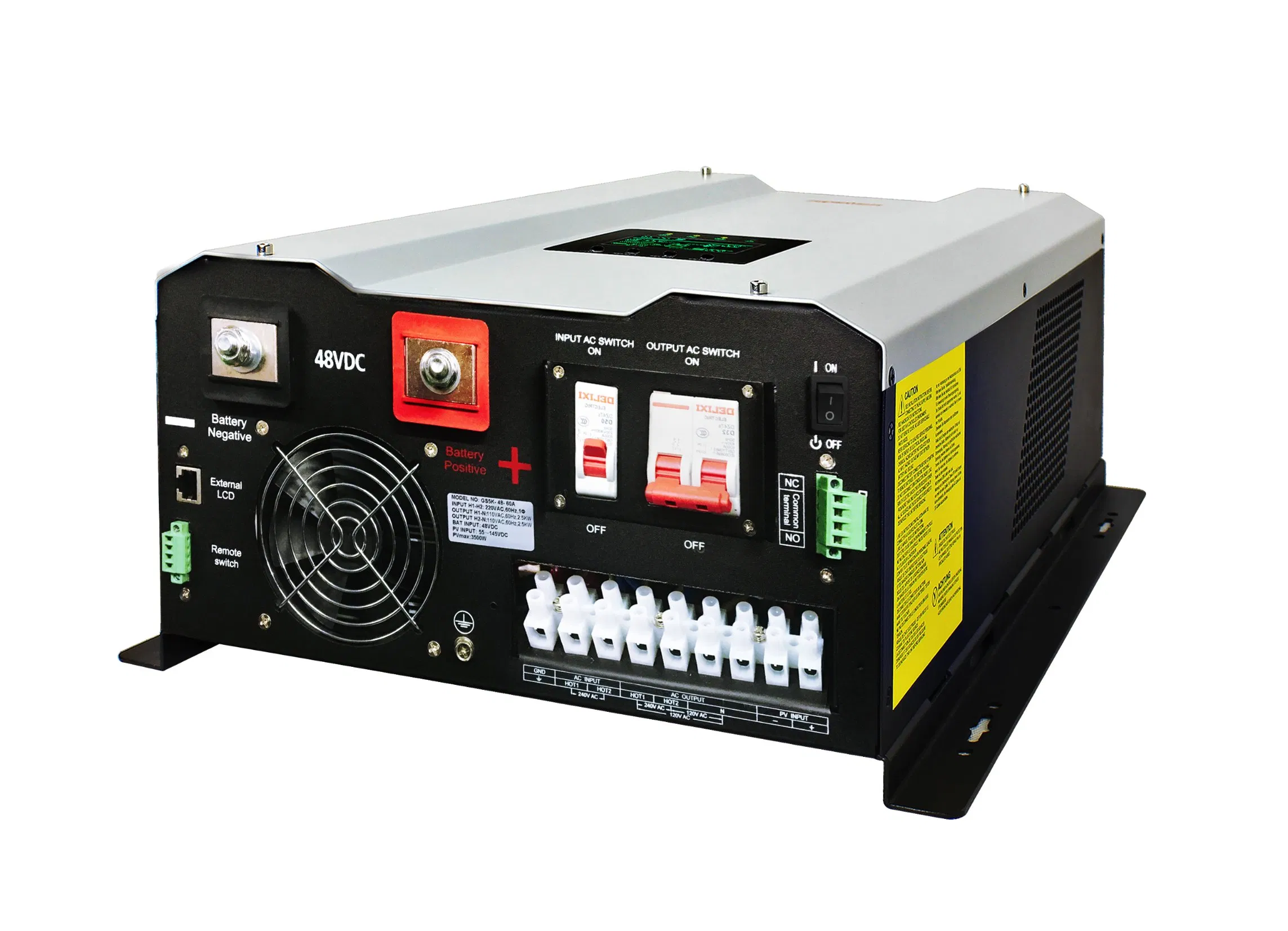

120/230V Integrated Pure Sine Wave Solar Power Hybrid MPPT Inverter

GS series AC/Solar inverter with reliable intelligent design. This series is suitable for complicated appliances, including common household electronics such as TV, computer, lights, and fans, as well as inductive loads like refrigerators, air conditioners, motors, pumps, compressors, and laser printers.

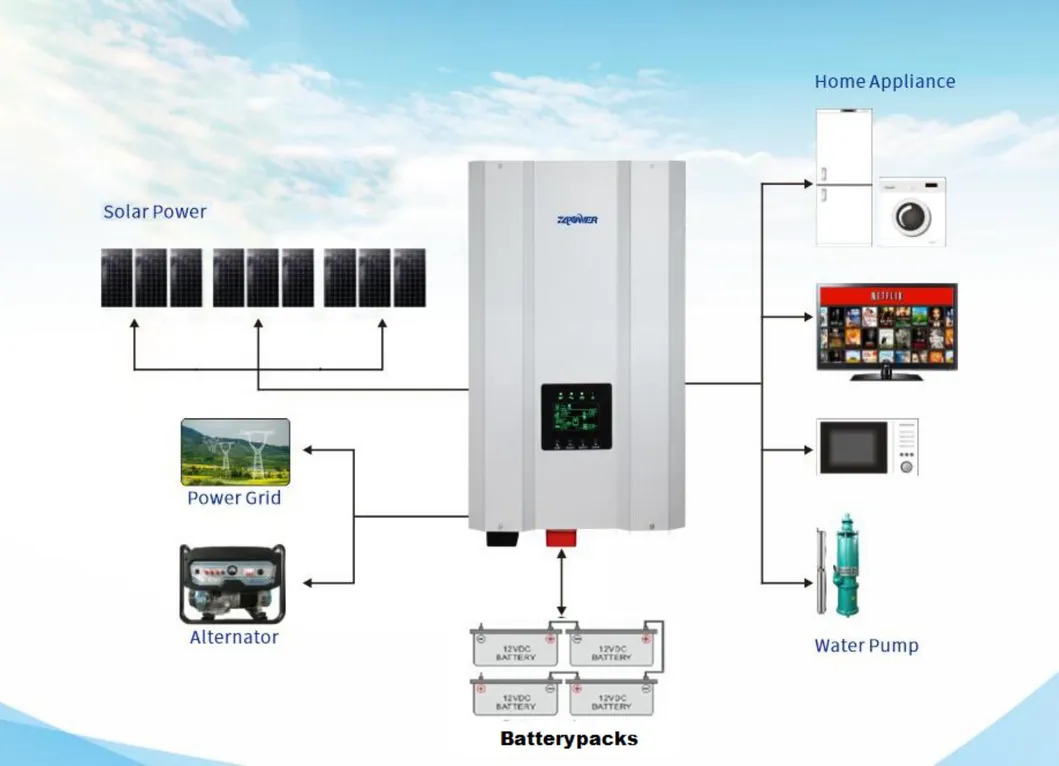

Solar Power Hybrid Inverter
Main Features
Low frequency based on Transformer
Compatible to mains voltage or generator power
Built-in 40A/60A/120A optional MPPT solar charger
Selectable Solar or AC priority
Adjustable charge current
Optional remote LCD display
Wide Input AC Voltage (85vac-145vac/135vac-263vac)
Generator restart signal (Dry contact)
Stable output from unstable sources
3 times peak power capacity

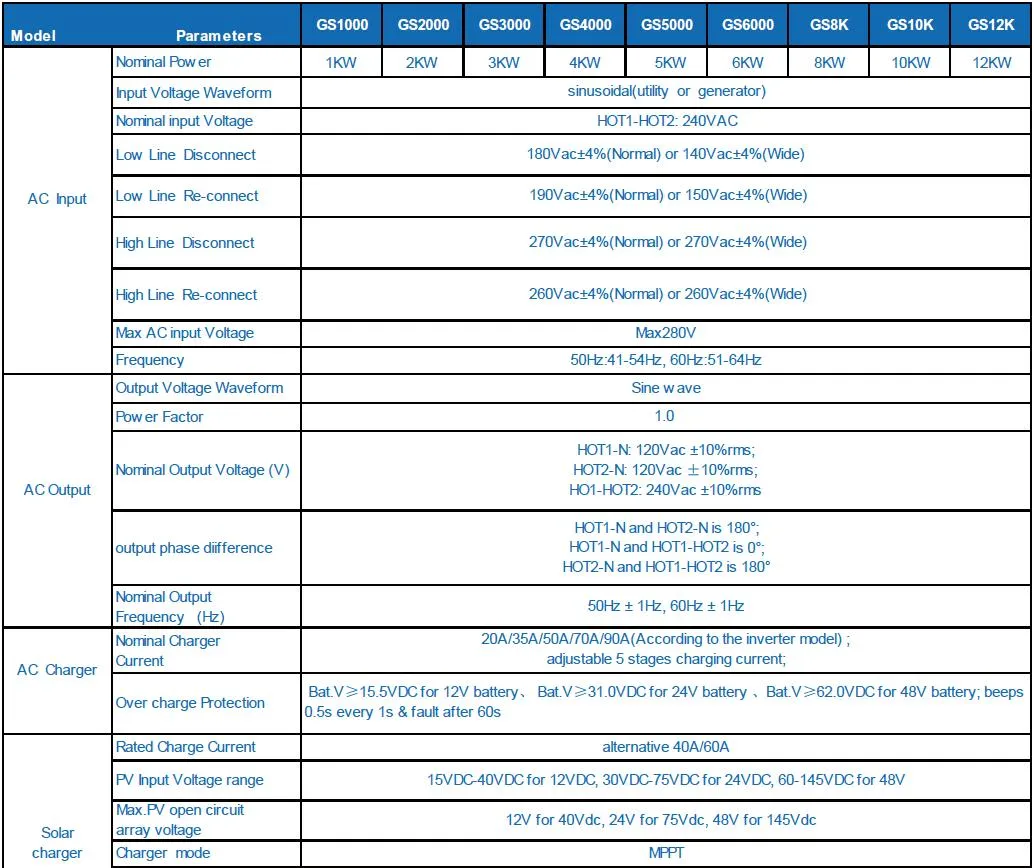

Inverter Details 1

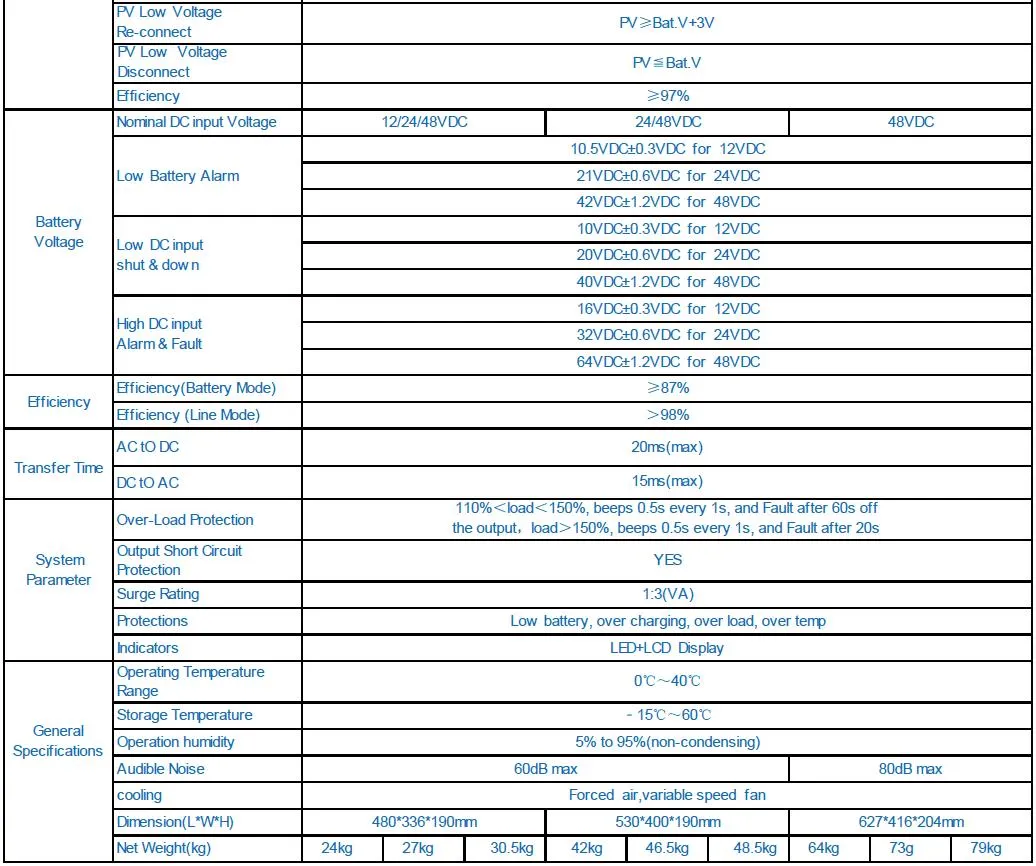

Inverter Details 2
Technical Deep Dive

Our wide selection of 120/240V Split Phase Inverter Chargers ranges from 1,000 watts to 12,000 watts, with DC inputs of 12V, 24V, and 48V. The 120/240 Vac split phase is a single-phase three-wire mid-point neutral power distribution system common in North America, providing 120 Vac for residential use and 240 Vac for heavy industrial loads like compressors and pumps.

These low-frequency inverters produce two legs of 120V hot lines, which can be integrated into main power distribution panels. The voltage between L1 and L2 is 240 Vac, while the voltage between either hot line and neutral is 120V.

Production and Quality
Frequently Asked Questions
How is the product quality?
QC regularly checks the quality. Our products have maintained a damage rate of less than 3% over the past five years, establishing us as a high-quality inverter supplier.
What happens if the product has a problem?
We have a professional after-sales team and provide a 24-month warranty. We will track product usage and assist you until the issue is fully resolved.
Do you accept OEM or ODM services?
Yes, we fully support both OEM and ODM services to meet your specific requirements.
What certifications do your products have?
Our products have passed several industry certifications including CE, ETL, Thayer, UL, and CCC, and the management system is ISO certified.
What is the difference between a standard inverter and a solar inverter?
A standard inverter only accepts AC input. A solar inverter accepts both AC input and PV input from solar panels, making it more energy-efficient.
What material is used in the transformer?
We offer two types: 100% copper or copper with aluminum, depending on your requirements. Copper provides a longer lifespan and higher performance.
