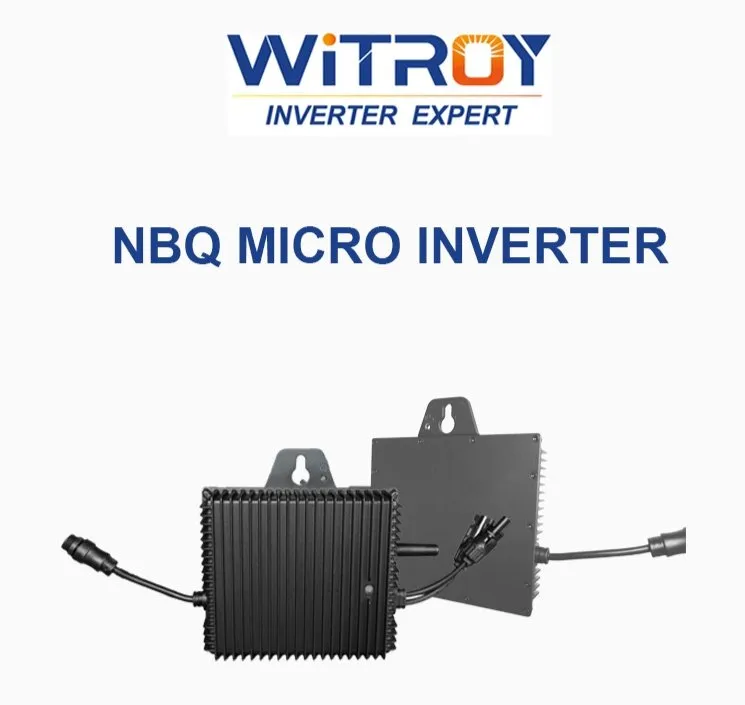

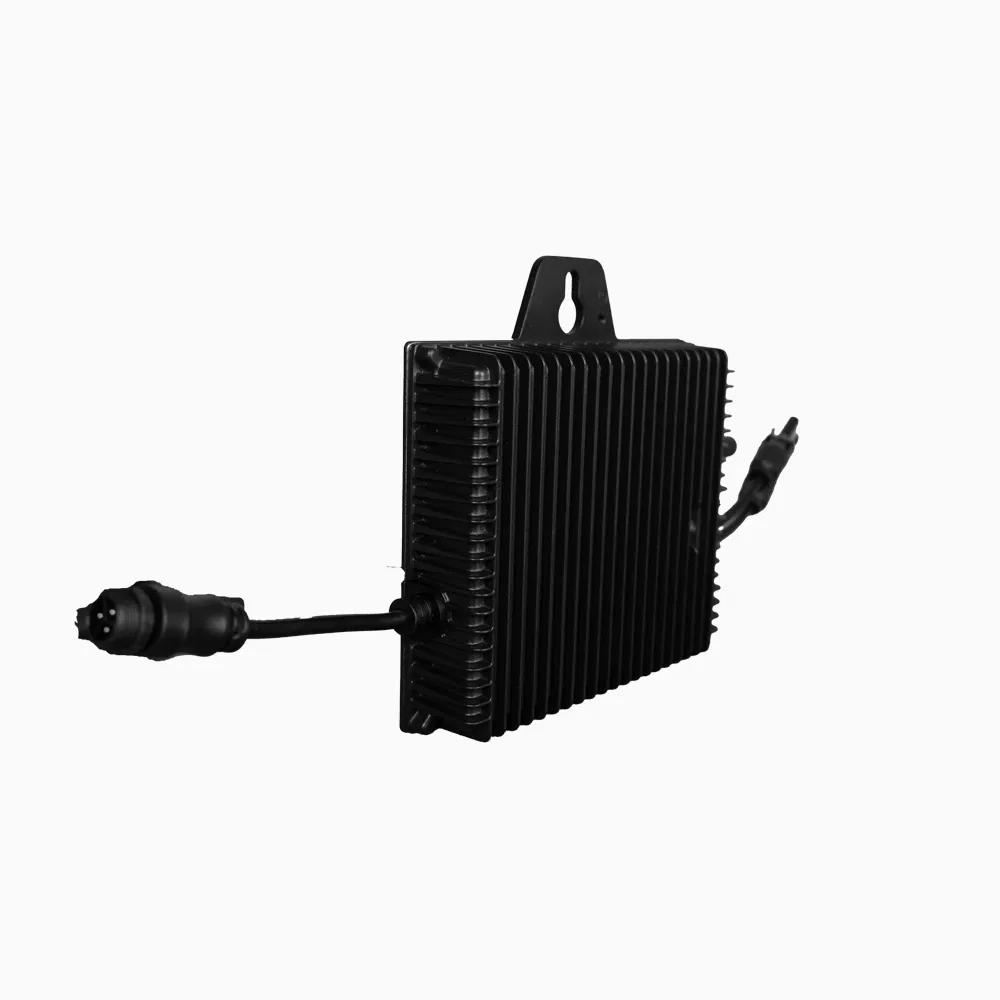

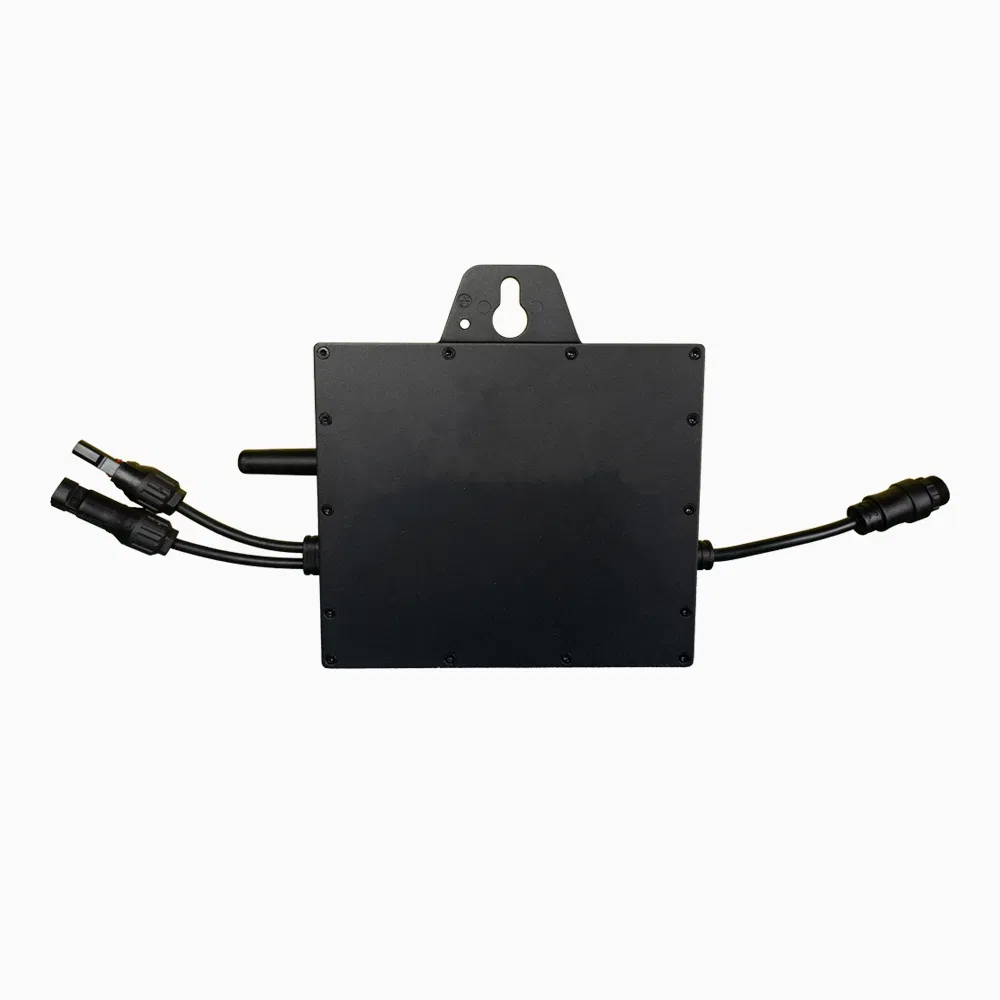

Boost your solar gains with the series EU micro inverters (400-2000VA)! Flex 1/2 MPPTs for uneven light, lock in 96.5% peak efficiency (more power = more profit), and rely on IP67 waterproofing + natural cooling for zero-fuss outdoor durability.
Wi-Fi/Bluetooth lets you monitor remotely—CE/VDE-certified, ideal for grid-tied PV setups (low hassle, high returns).
| Model NO. | WBQ600 |
| Output Power | 400W |
| Certification | CE, VDE/En50549/CE-LVD/CE-EMC/CE-Red |
| Type | DC/AC Inverters |
| MPPT Voltage | 22-55V |

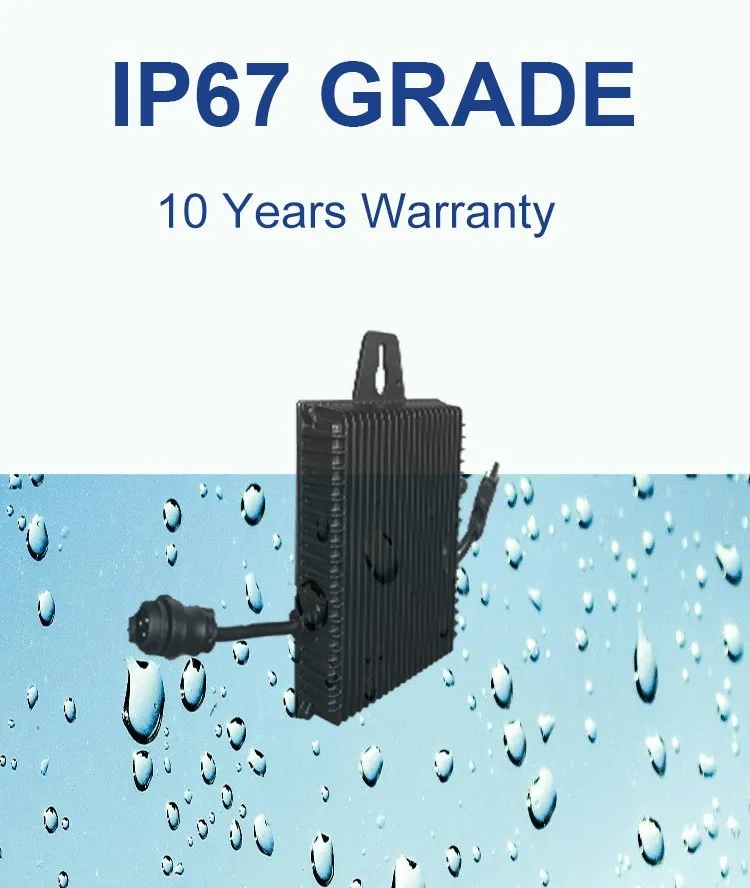

| IP Grade | IP67 |
| Peak Efficiency | 96.5% |
| Communication | 2.4G Wi-Fi / Bluetooth |
| Cooling | Natural Cooling |
| Dimensions | 181*193*38.5mm |

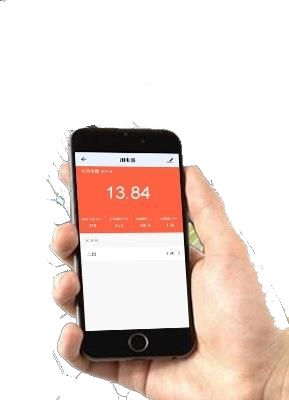

1. DOWNLOAD APP

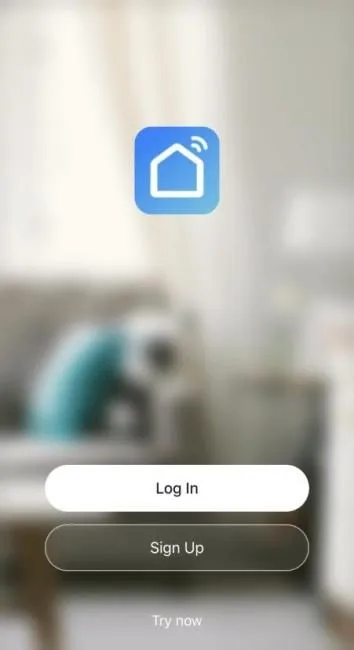

2. REGISTER & LOG IN

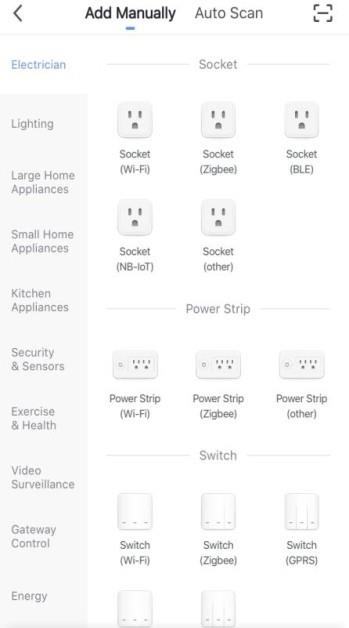

3. SELECT WIFI BUTTON

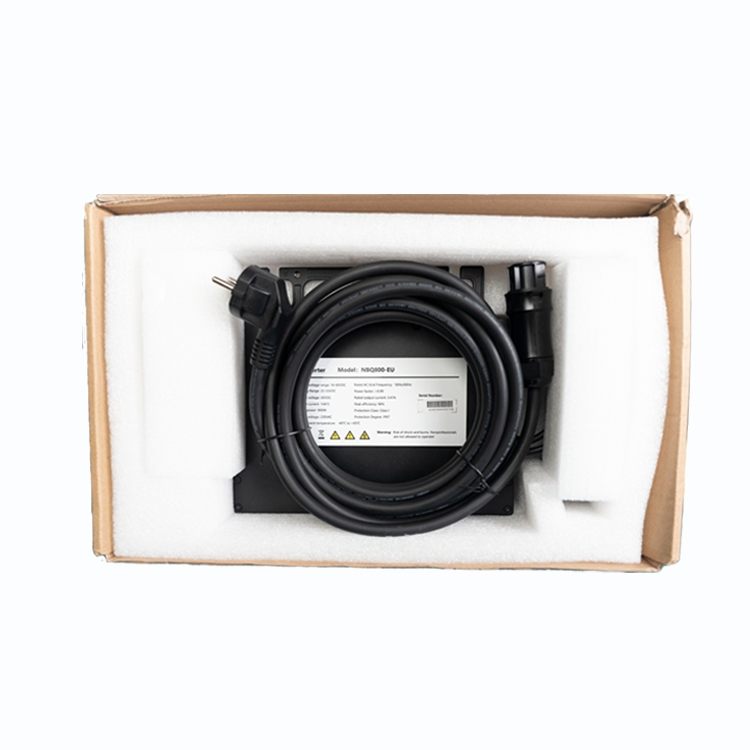

| Model: NBQ600-EU | |
|---|---|
| Input Data (DC) | |
| Module Power | 275~530W*1 |
| Maximum Input Voltage | 60V |
| MPPT Voltage Range | 22-55V |
| Number of MPPTs | 1 |
| Output Data (AC) | |
| Rated Output Power | 400VA |
| Nominal Output Voltage | 230V |
| Nominal Frequency | 50/60Hz |
| Efficiency & Mechanical | |
| Peak Efficiency | 96.5% |
| Night Power Consumption | <50mW |
| IP Grade | IP67 |
| Operating Temperature | -40℃ to +65℃ |
