Micro off Grid Low Price 5.5kw China Wholesale 10kVA Hybrid Solar Inverter

Customization: Available
After-sales Service: Yes
Warranty: 1 Year

Product Description

📋 Basic Information
Model NO.
XD-WD
Nature of Source Flow
Active Inverter
Phase
Single Phase Solar Inverter
Output Power
700W~40kw
Certification
CE, ISO9001
Type
DC/AC Inverters
Power Source
Solar Power
Nature of Wave String
Pure Sine Wave
Application
Home/Industrial/Office
Output Efficiency
>99%
Transfer Time
>10ms
Protection
Overload/Short Circuit/Temperature
🚀 Inverter Features
  • 01 Pure sine wave output for stable performance.
  • 02 High efficiency toroidal transformer with lower loss.
  • 03 Intelligent LCD integration display for easy monitoring.
  • 04 AC charge current 0-20A adjustable; flexible battery configuration.
  • 05 Three working modes: AC first, DC first, and energy-saving mode.
  • 06 Frequency adaptive function, suitable for different grid environments.

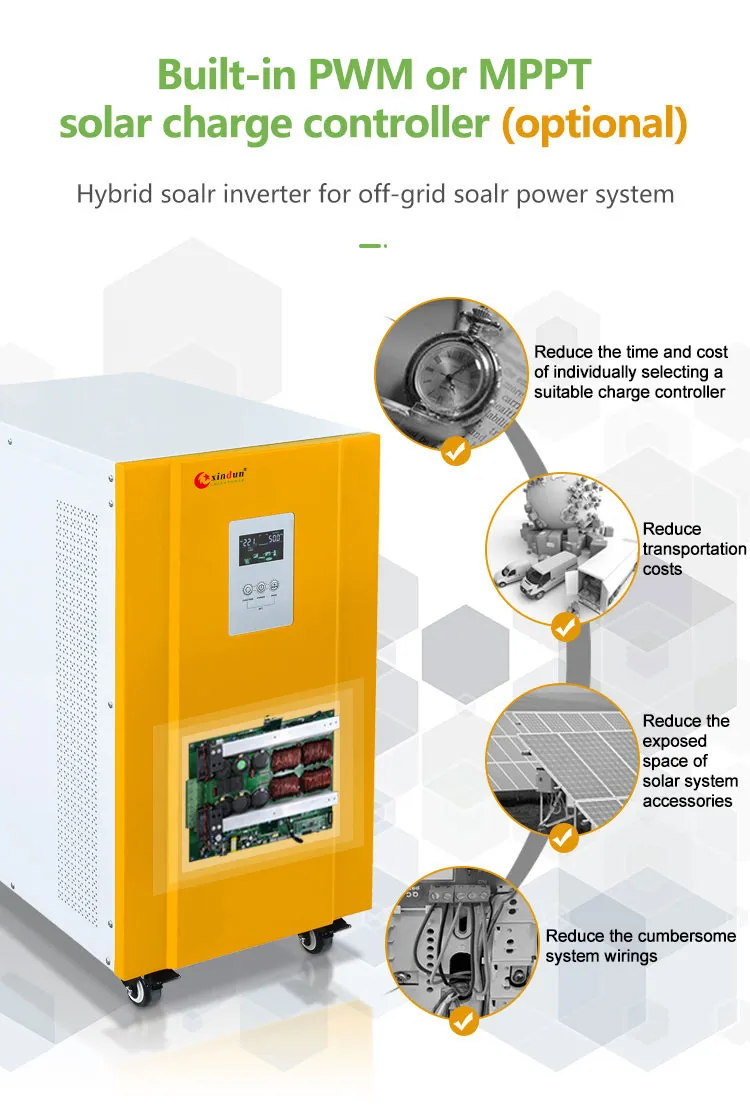

  • 07 Optional built-in PWM or MPPT controller.
  • 08 Fault code query function for real-time operation state monitoring.
  • 09 Supports diesel or gasoline generators for tough power situations.
  • 10 Optional RS485 communication port and APP support.
📸 Product Details

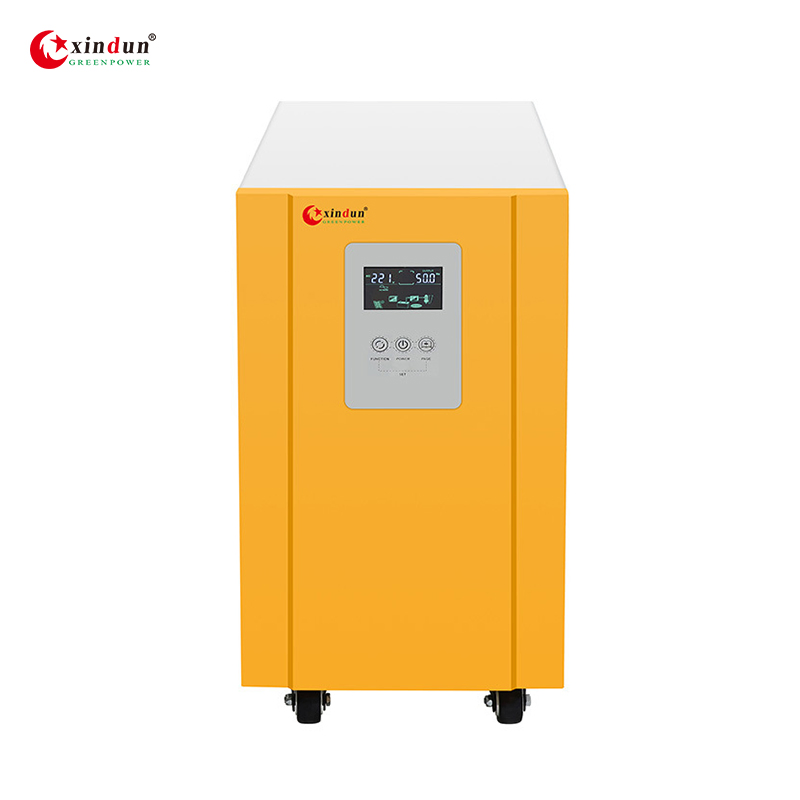

Inverter Overview
Inverter Display

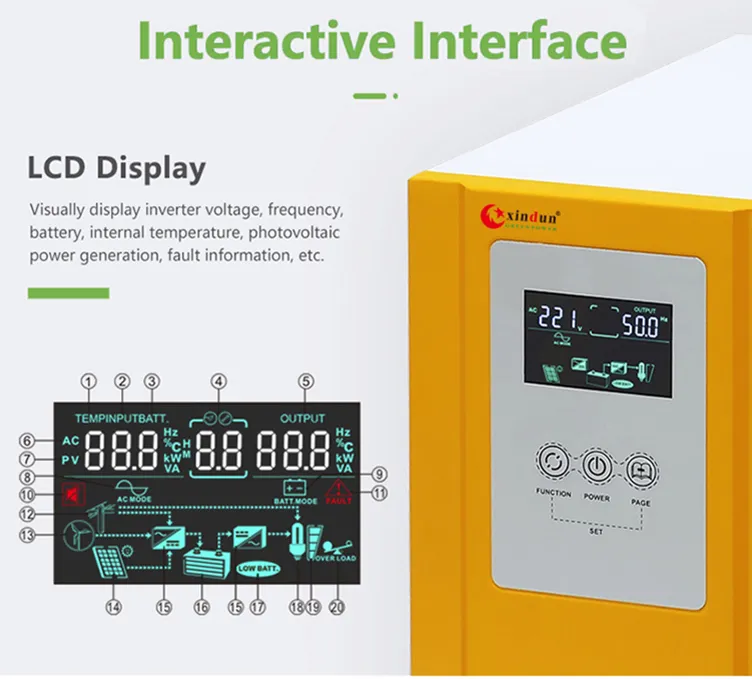

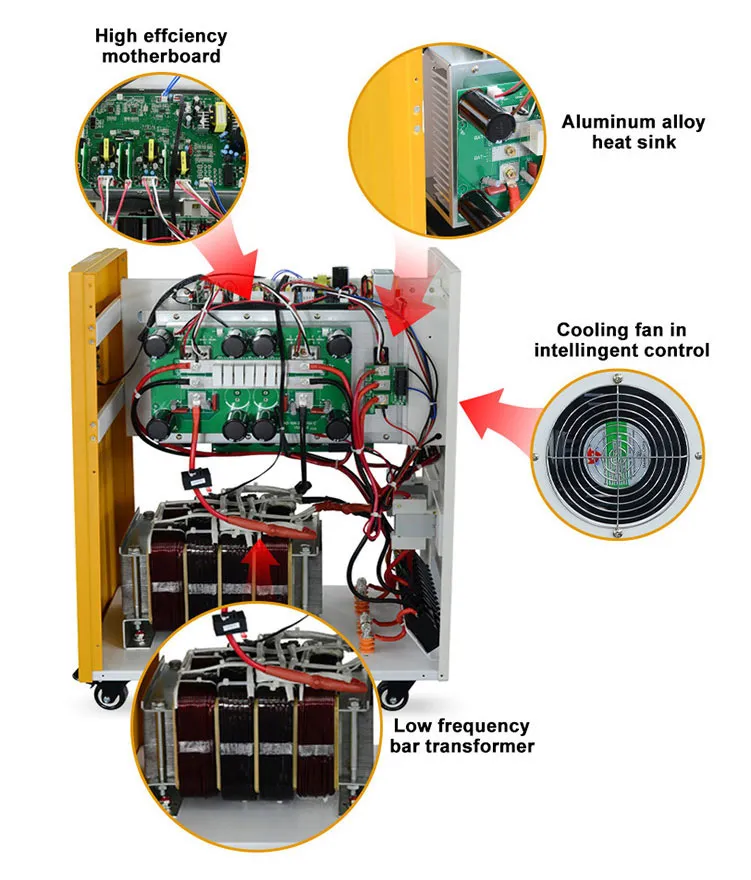

Inverter Inside

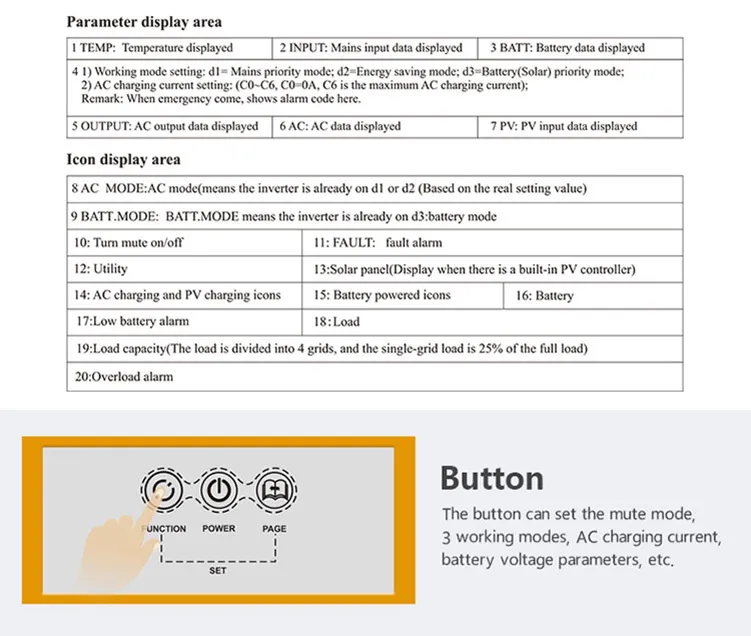

Inverter Connection

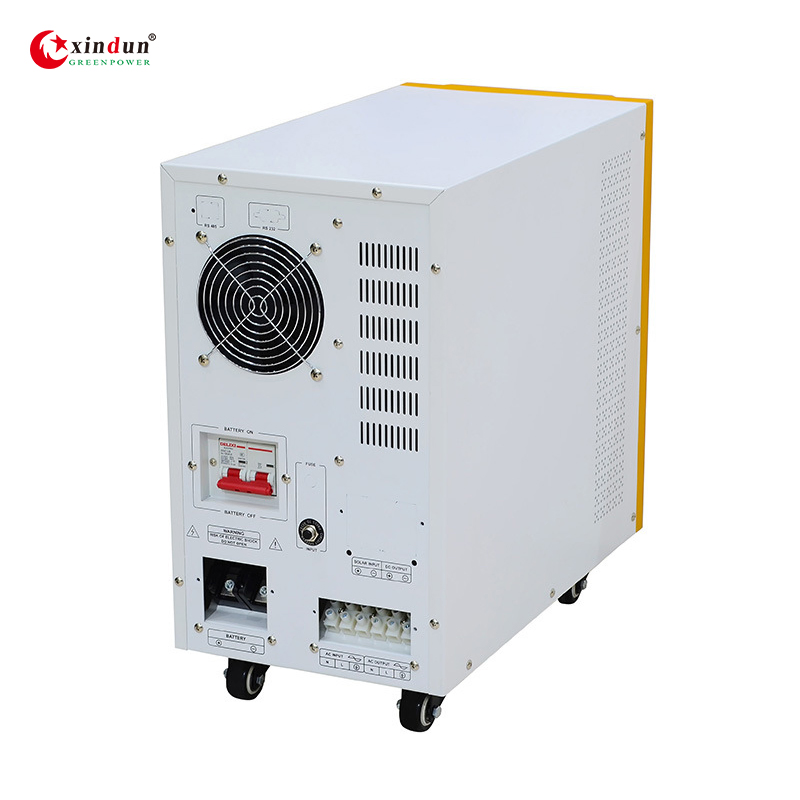

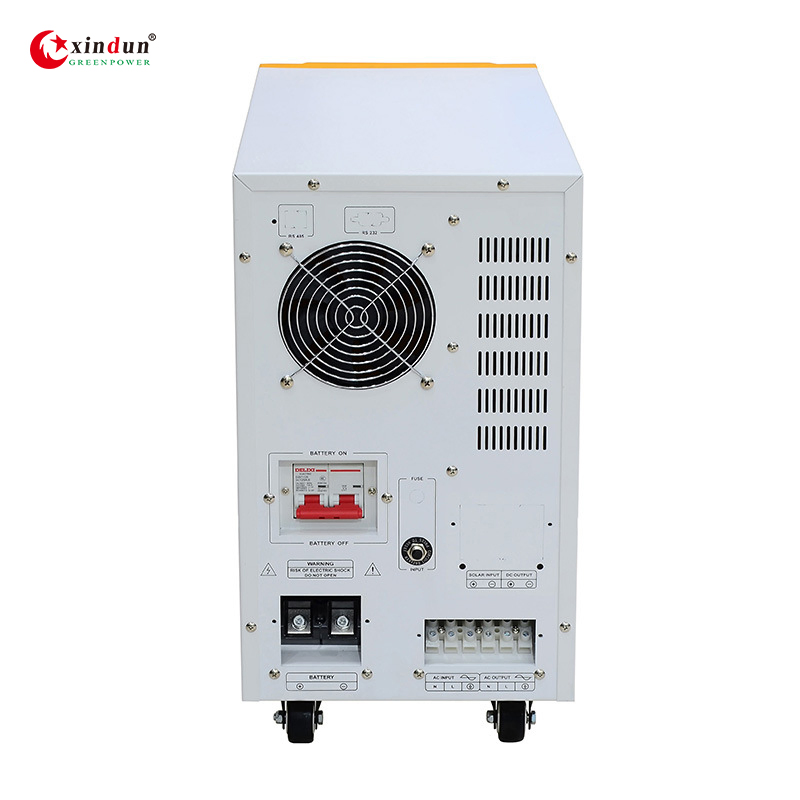

Inverter Back

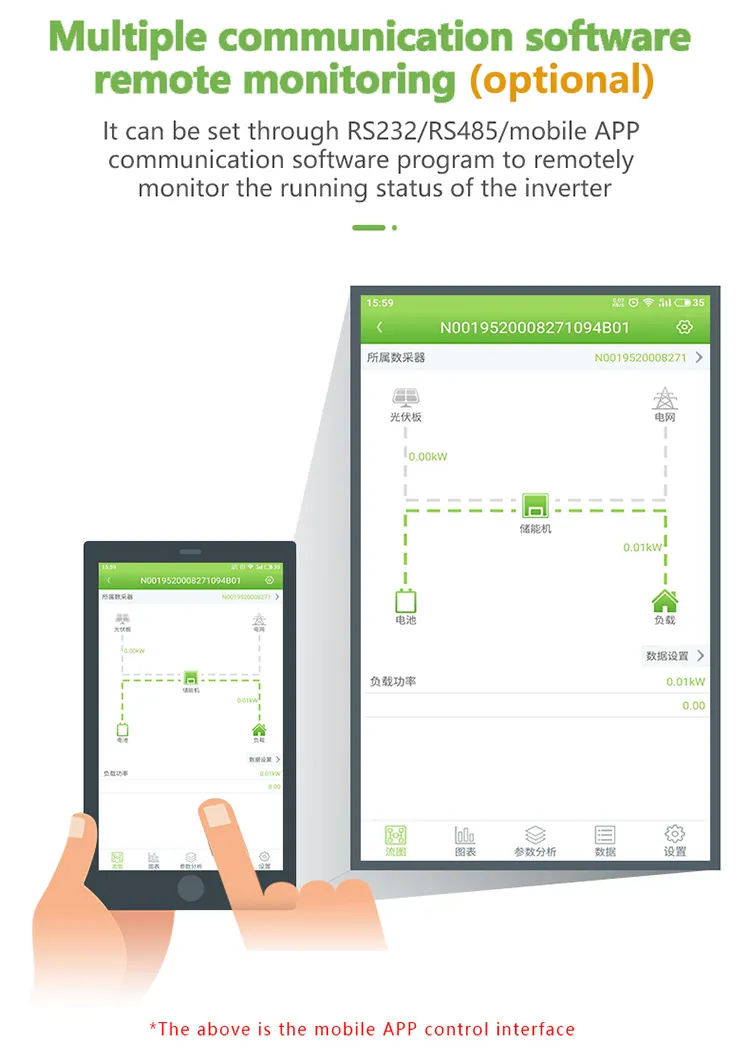

Inverter Structure
📌 Wiring Diagrams

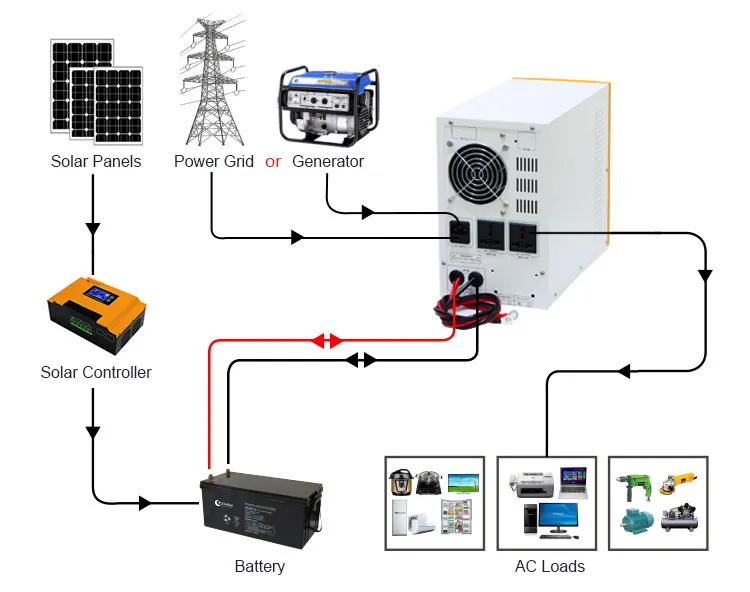

700W~1500W Models:

Wiring Diagram 1

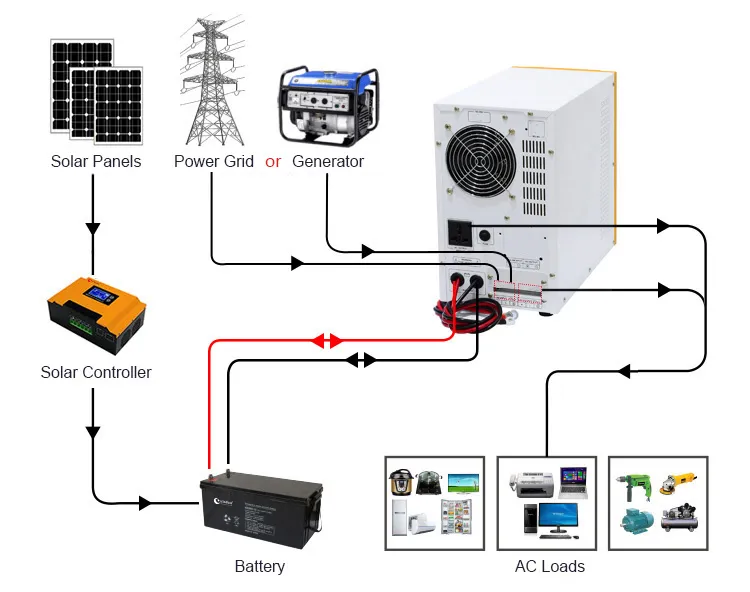

2KW~3.5KW Models:

Wiring Diagram 2

4KW~7KW Models:

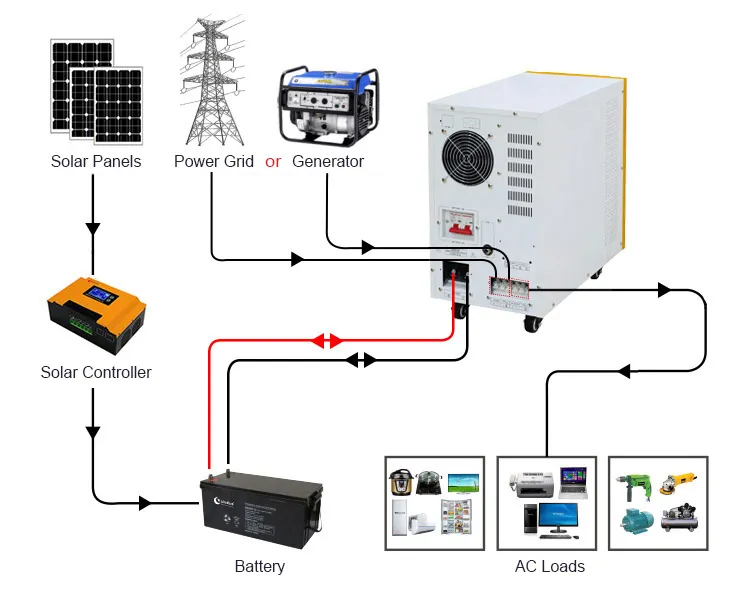

Wiring Diagram 3

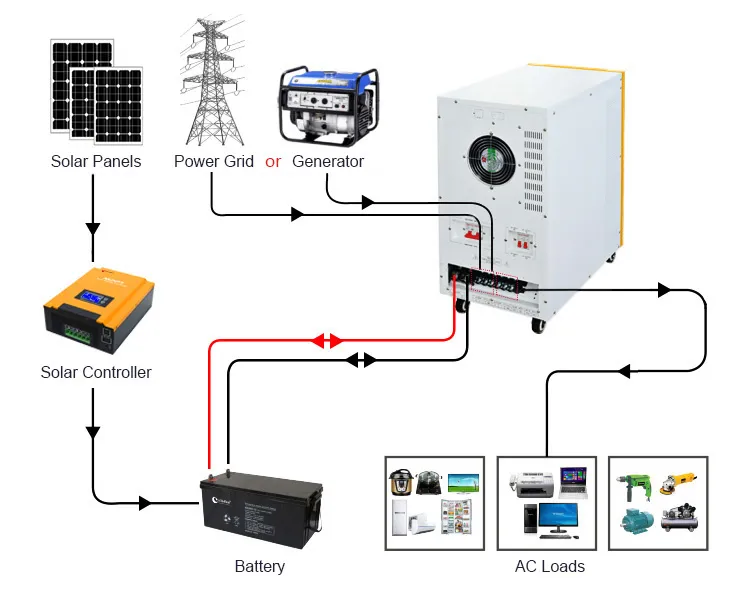

8KW~12KW Models:

Wiring Diagram 4

15KW~25KW Models:

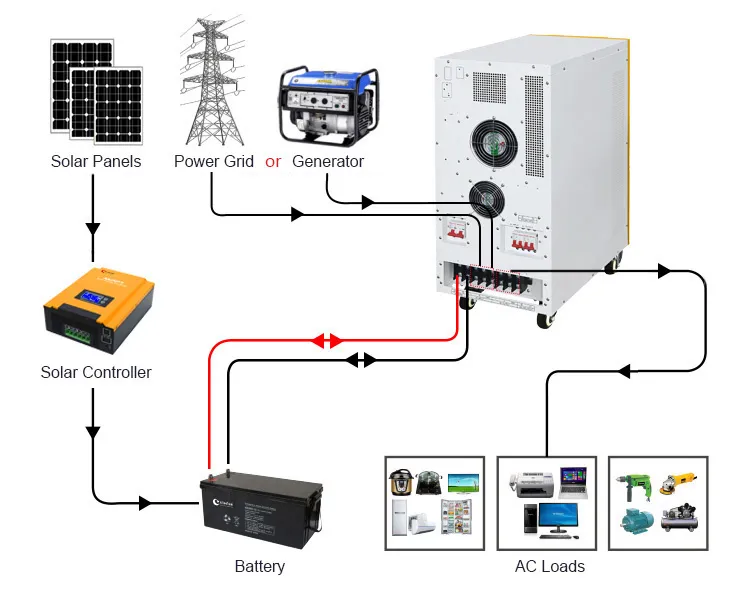

Wiring Diagram 5

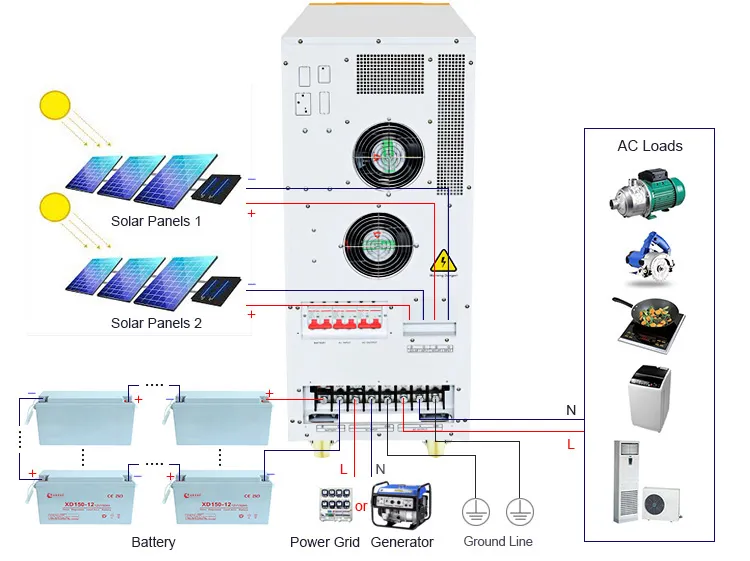

30KW~40KW Models:

Wiring Diagram 6
📦 Packing & Delivery
Packaging

Standard Package: Carton Box or Wooden Box (for samples) to ensure safety during transportation.

Shipping Methods: DHL, FedEx, TNT, UPS for samples; Air or Sea for batch orders.

🏭 Workshop & Manufacturing

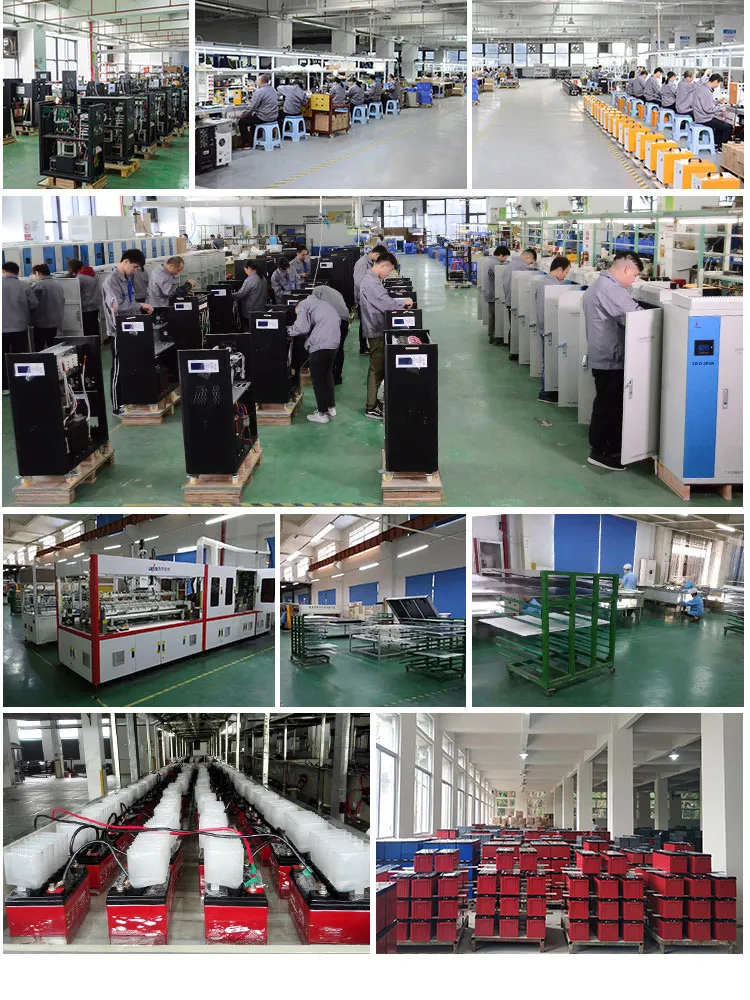

Workshop
Production Line
Quality Control
❓ Frequently Asked Questions
Q1: What is the benefit of a pure sine wave output?
A1: Pure sine wave inverters provide high-quality electricity, similar to the grid. This ensures that sensitive electronic equipment and appliances run smoothly, with less noise and interference.
Q2: Can I adjust the charging current for the batteries?
A2: Yes, the AC charging current is adjustable from 0A to 20A (or up to 40A on larger models), allowing for flexible battery capacity configuration.
Q3: Does the inverter support different types of batteries?
A3: Absolutely. It supports Lithium, Lead-Acid, Gel, and other battery types with customizable charging and discharging parameters.
Q4: What happens if there is an overload or short circuit?
A4: The inverter features built-in automatic protection for overload, short circuits, and high temperatures, ensuring the safety of your system.
Q5: Is it possible to monitor the system remotely?
A5: Yes, the inverter has optional RS485 communication ports and supports WiFi/GPRS monitoring via a dedicated mobile app.
Q6: Can I use a generator with this hybrid inverter?
A6: Yes, the system supports both diesel and gasoline generators, making it highly adaptable for areas with unstable electricity.
