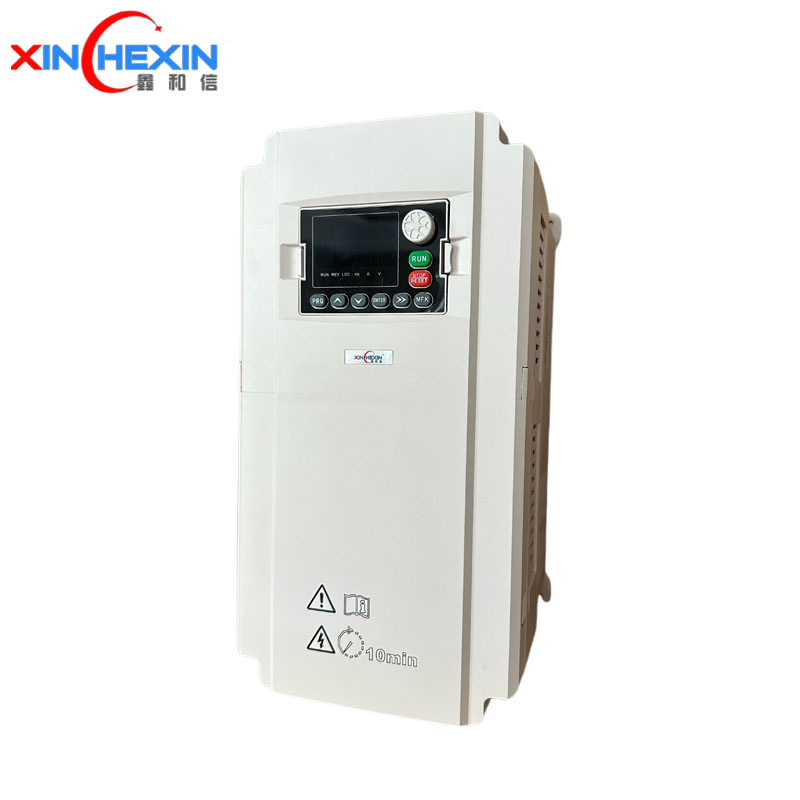

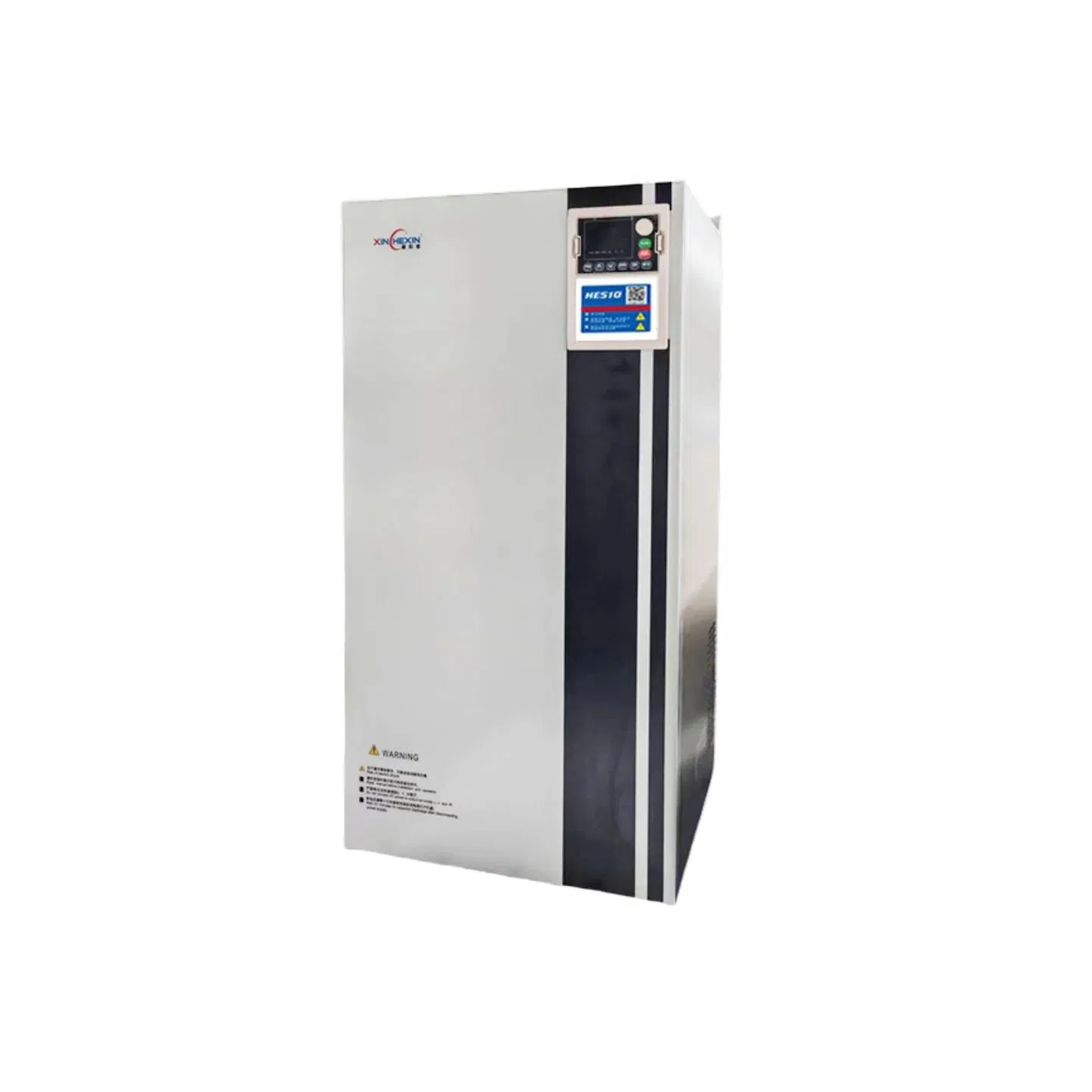

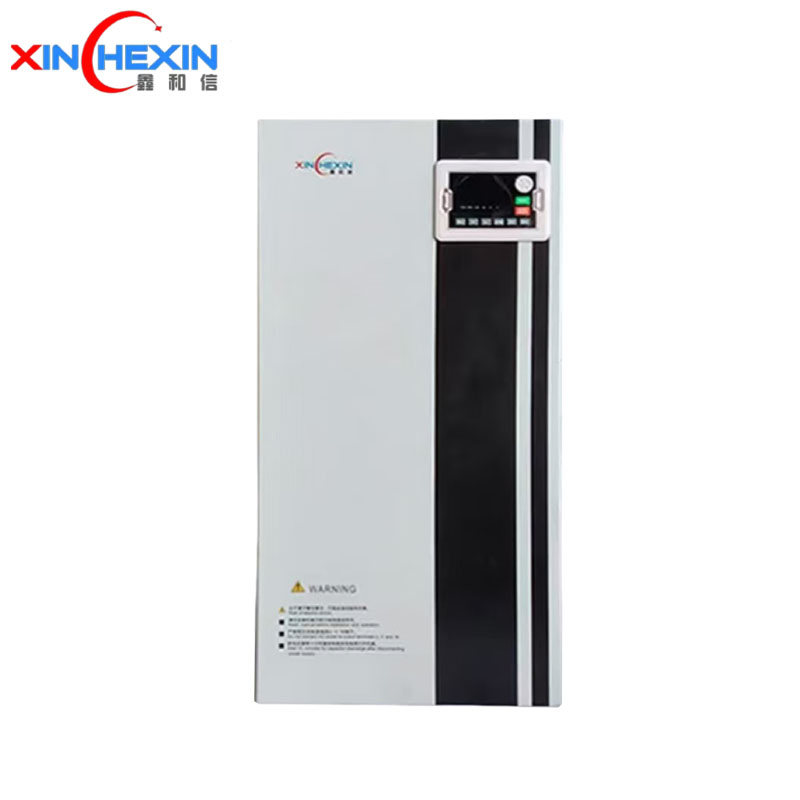

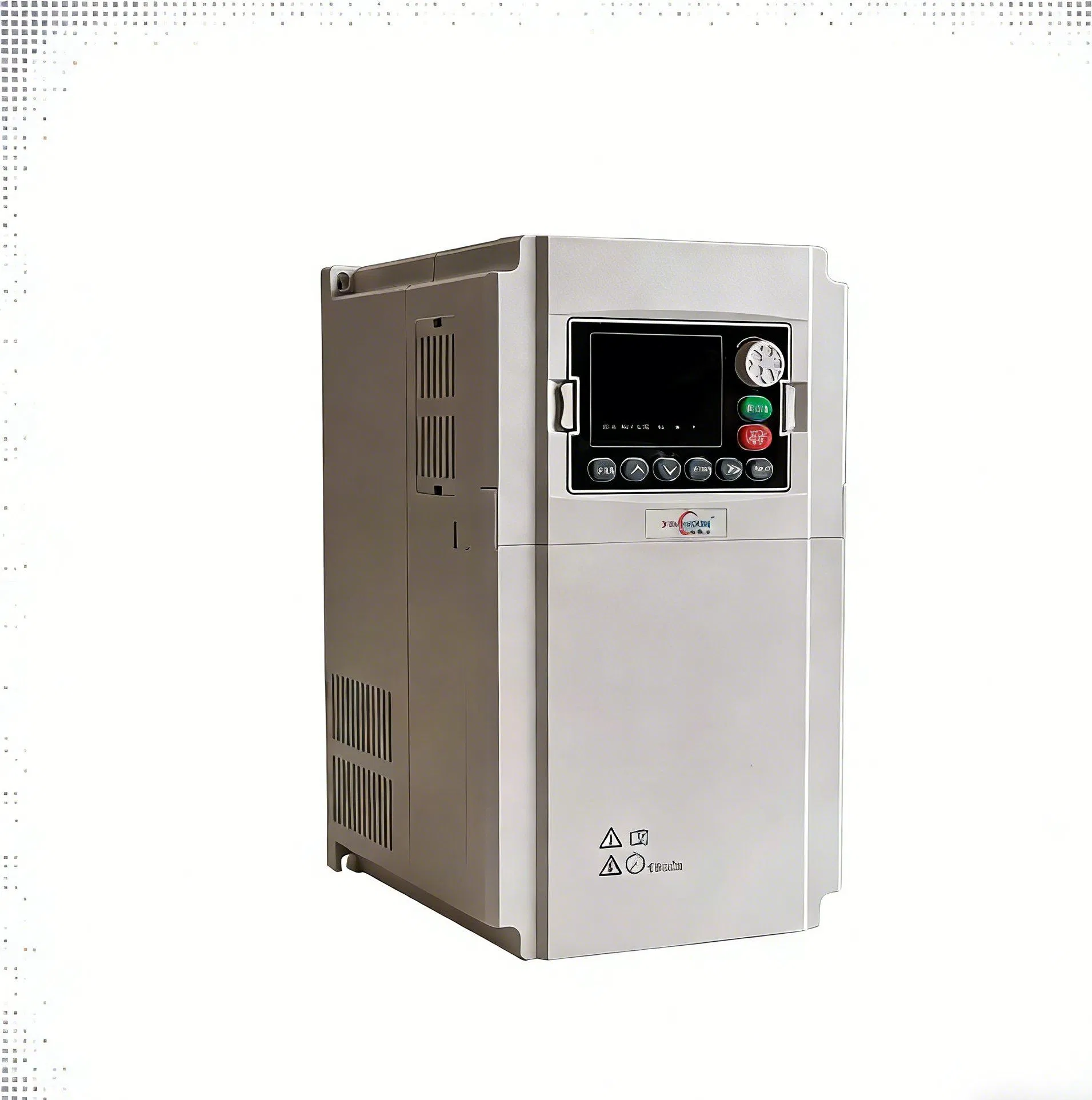

Multi-Functional Solar Inverter with Integrated Control Features

Customization:	Available
Application:	High-performance Transducer, Three Phase Transducer, General Transducer, High Frequency Converter Transducer
Output Type:	Triple

Send Inquiry

Product Description

Basic Information

Model NO.

HE500

Principle of Work

V/F Control Transducer

Switch Mode

High Carrier Frequency PWM Control

Main Circuit Type

Voltage

Power Supply

Low Voltage Variable-Frequency Drive

Link of Transformation

AC-DC-AC

Function

Simple Type, Elevator Special, Textile Special, Constant Torque Universal

Certification

ISO9001/14001/45001, CE

Output Voltage

Three Phase

Power Range

0.75kw-500kw

Output Frequency

0~500Hz

HS Code

8504409999

★

Product Introduction

High-performance vector frequency converter featuring large low-speed starting torque, optimized current limiting, and complete protection for over-current, overload, and short-circuits. Supports non-inductive permanent magnet synchronous vector control and English LCD keyboard.

✔

Key Advantages

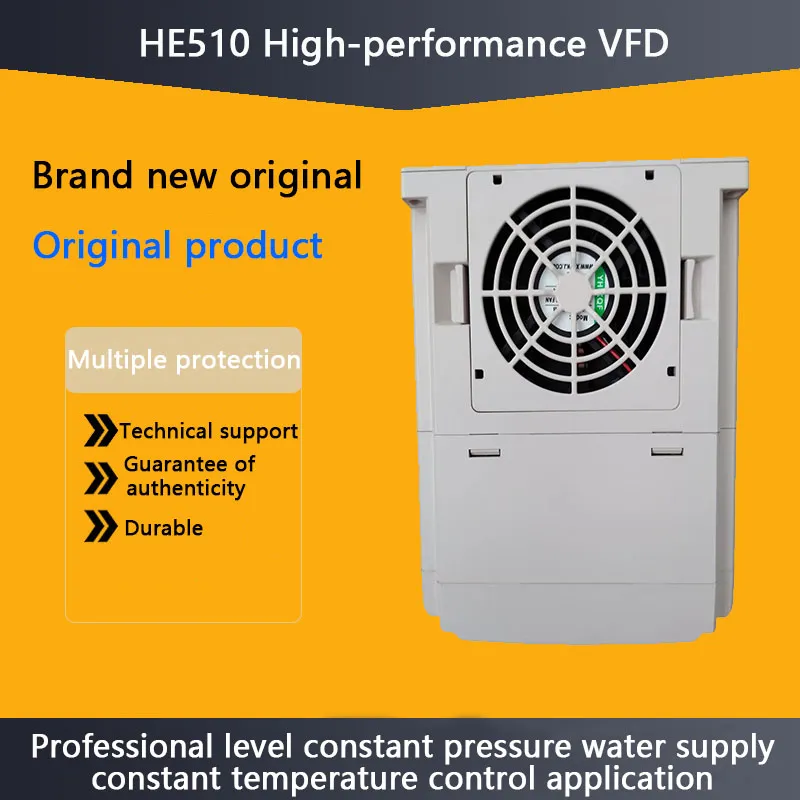

Professional Control Professional-grade constant pressure water supply and constant temperature control functions.

High Speed Pulse Supports up to sixteen segment speeds and high-speed pulse input/output.

Communication Full support for Modbus communication functions for automated production.

Versatile Application Suitable for machinery manufacturing, fans, water pumps, and various industrial equipment.

⚙

Technical Features

1. High-Reliability Design: Utilizes industrial-grade components and a compact structure, suitable for high-temperature, high-humidity industrial environments. IP20/IP21 protection rating.

2. High-Performance Vector Control: Supports open-loop/closed-loop vector control, providing high starting torque and precise speed regulation for asynchronous and permanent magnet motors.

3. Comprehensive Protection: Built-in PID control, multi-step speed operation, and energy-saving modes. Equipped with overcurrent, overvoltage, and short circuit protection.

4. Energy Efficiency: Optimizes motor operating efficiency and enables speed regulation on demand, significantly reducing consumption for fans and pumps.

▦

Model Specifications

Model	Length(cm)	Width(cm)	Height(cm)	Volume(cm3)	Weight(g)
HE510-0.75kw	16.5	9	13	1930.5	1190
HE510-1.5kw	16.5	9	13	1930.5	1190
HE510-2.2kw	16.5	9	13	1930.5	1210
HE510-4kw	18.6	9.9	14.5	2670.03	1600
HE510-7.5kw	24.3	14.2	19	6556.14	2900
HE510-15kw	32.2	17.1	21.5	11838.33	5650
HE510-30kw	39.5	22	22	19118	10275
HE510-55kw	63.2	29	28	51318.40	36000
HE510-110kw	63.2	29	28	51318.40	40500
HE510-200kw	88	51	35	157080	93000
HE510-500kw	126	100	37	466200	122000

Frequently Asked Questions

What types of motors are compatible with the HE500 series?

The HE500 series supports both asynchronous motors and permanent magnet synchronous motors, providing high starting torque and precise speed regulation for both types.

How do I choose the correct VFD model for my specific machine?

Selection depends on your motor's power rating, voltage requirements, and application type (e.g., constant torque or variable torque). Please refer to the specification table or provide your machine details for a recommendation.

What international certifications does this product hold?

Our products are fully certified with CE, CCC, ISO9001, ISO14001, and ISO45001, ensuring compliance with global quality and safety standards.

Does the VFD support remote monitoring and communication?

Yes, it supports Modbus communication functions and features interfaces for real-time monitoring of frequency, current, voltage, and fault records.

What is the typical lead time for shipment after payment?

Standard goods are typically dispatched within 20 days after payment is received. A tracking number will be provided immediately upon dispatch.

How is the product quality guaranteed?

We maintain strict quality control through pre-production samples before mass production and a rigorous final inspection of every unit before shipment.
