The EPS series hybrid inverters adopt an integrated design, integrating PV controllers, energy storage converters, and on/off-grid automatic switching units, greatly improving deployment efficiency and reducing installation costs. The PV capacity can be flexibly configured, improving the microgrid system availability, suitable for remote areas and islands where power is relatively weak. Strong load adaptability and complete protection functions ensure power supply security and stability.
Passed EN 62109-1/-2, EN 62477-1, EN 61000-6-2/-6-4, IEC61727, IEC62116, IEC61683 NRS 097-2-1:2017, ASGC, AS/NZS 4417.1, CEI 0-21, CEI 0-16, G99 EN 50549-1, VDE 4105 test certifications.

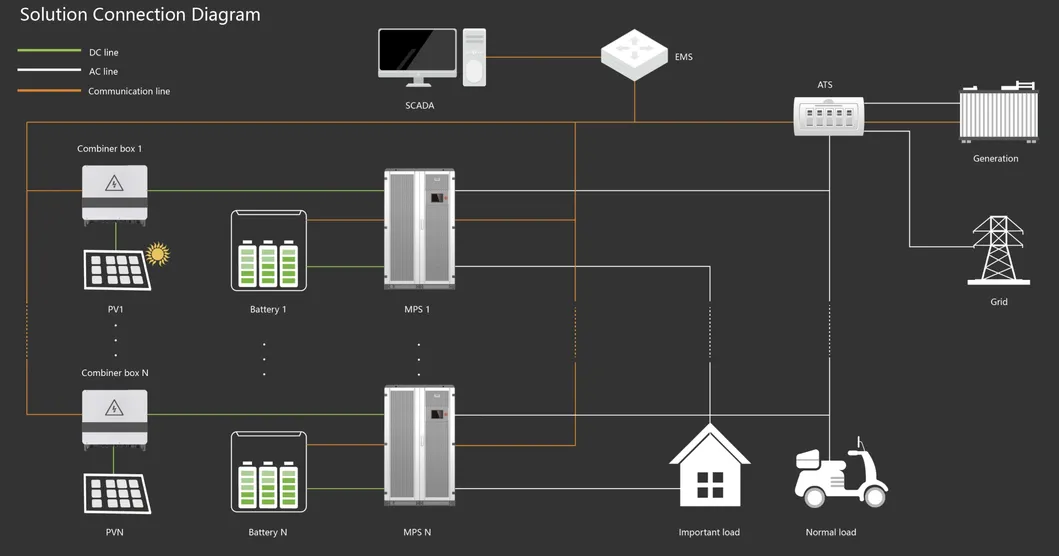

Support PV, diesel generator, battery, and load access simultaneously. Strong adaptability with black start support. Various working modes can be set flexibly.

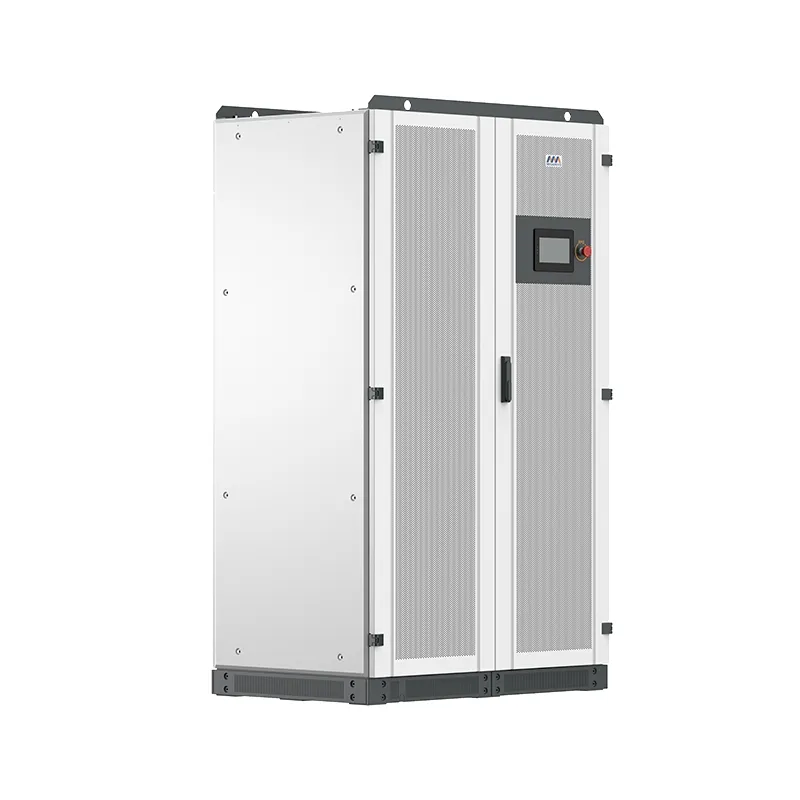

Supports unattended operation with an HMI digital display panel for quick status judgment. Combined with cloud-based EMS for remote monitoring and management.
Save installation and commissioning costs
Reduce fossil fuel use and environmental impact
Increase penetration of renewable energy
Continuous and stable power supply
Convenient future PV expansion

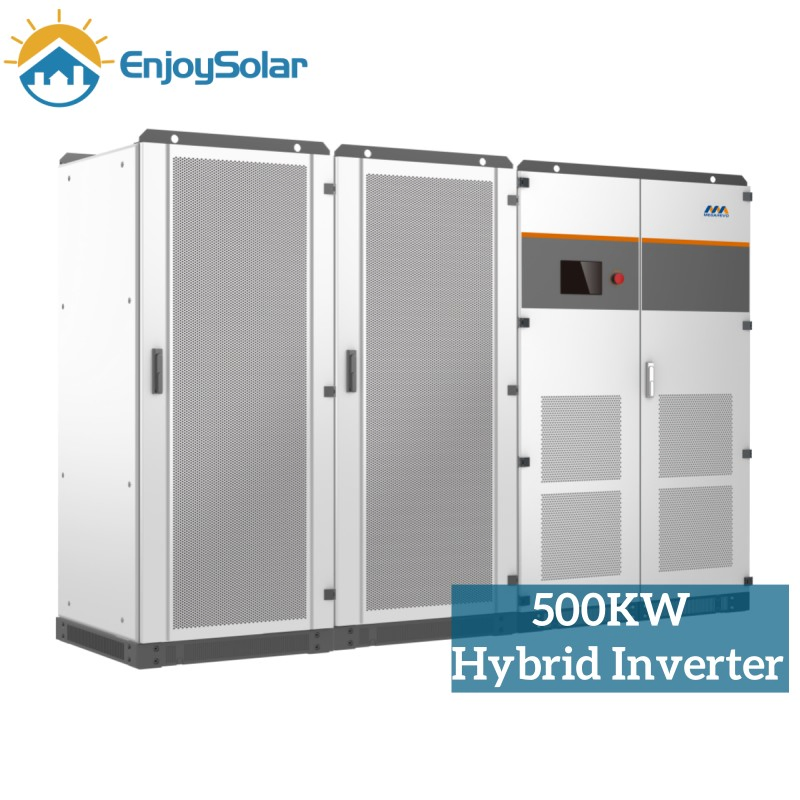

| Model | EPS0030 | EPS0050 | EPS0100 | EPS0150 | EPS0250 | EPS0500 |
| AC (On-Grid) | ||||||
| Rated Output Power (kW) | 30 | 50 | 100 | 150 | 250 | 500 |
| Rated Voltage (V) | 400 | |||||
| Rated Current (A) | 43 | 72 | 144 | 216 | 361 | 722 |
| PV Input | ||||||
| Max. PV Voltage (V) | 1000 | |||||
| Max. PV Power (kW) | 36/72 | 60/120 | 120/240 | 120/240 | 300/360 | 600/720 |
| Battery | ||||||
| Voltage Range (V) | 250~850 | 320~850 | 420~850 | 420~850 | 420~850 | 500~850 |
| General Data | ||||||
| Ingress Protection | IP20 | |||||
| Display | LCD Touch Screen | |||||
We provide customers with feasible solutions and turnkey services for different applications. Whether small-scale distributed or large-scale centralized, we have rich experience in global implementations.
