| Model NO. | 600W |
| Output Power | 501 - 1000W |
| Certification | CE, ISO9001 |
| Type | DC/AC Inverters |
| Power Source | Solar Power |
| Input Voltage | 50V D.C. |
| Output Voltage | 120V/230V |
| Output Frequency | 50/60Hz |
| Enclosure Rating | IP66 |
| Weight | 1.46kg |
Energy you can trust
Our microinverters are field-proven and guaranteed to perform from sunrise to sunset, year after year.

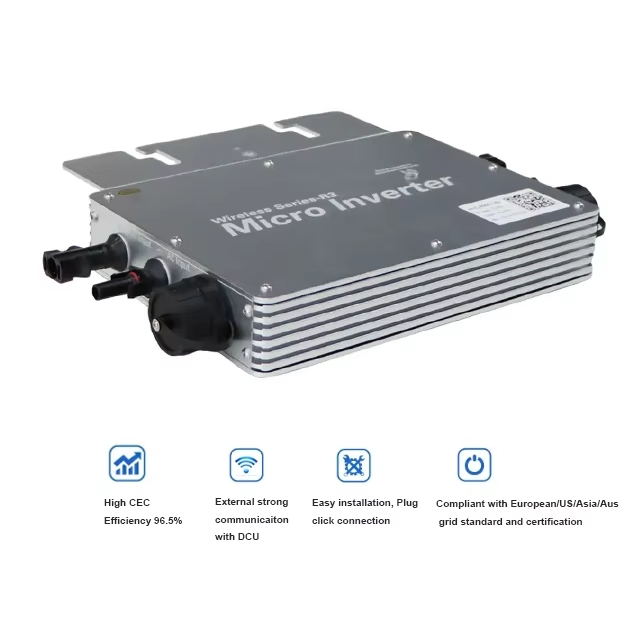

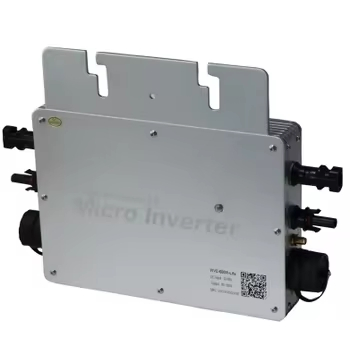

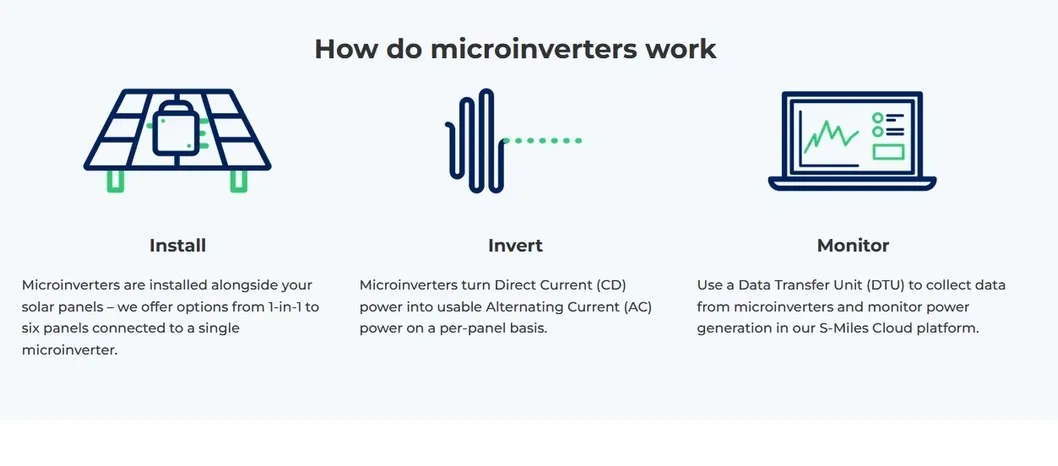

Microinverters turn the power from your solar panels into usable electricity. Single-phase microinverters are usually used in residential and small commercial environments. Get frustration-free, long-lasting performance with simple installation, premium quality, and low failure rates.
| Input Data (DC) | |
|---|---|
| Recommended module power (W) | Max 2*375W |
| Peak power MPPT voltage range (V) | 30~60 |
| Operating voltage range (V) | 22~60 |
| Maximum input current (A) | 2×12 |
| Output Data (AC) | |
| Rated output power (VA) | 600 |
| Rated output current (A) | 5@120v / 2.6@230v |
| Nominal output voltage range | @120v 85-160VAC / @230V 180-265VAC |
| Efficiency & Temp | |
| CEC weighted efficiency | 92.50% |
| Nominal MPPT efficiency | 99.80% |
| Ambient temperature range | -20~+50 ºC |
